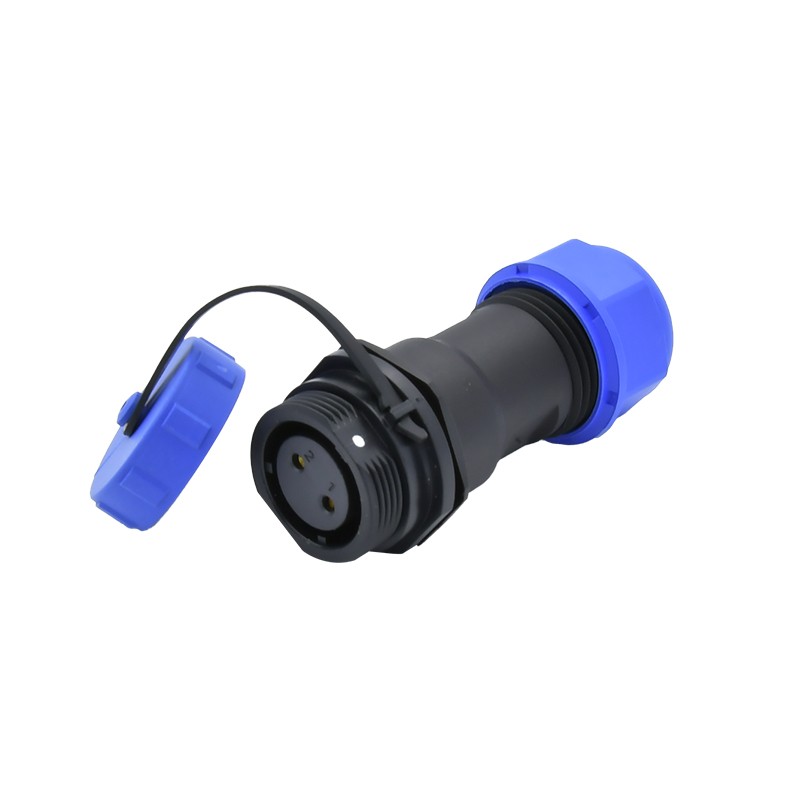

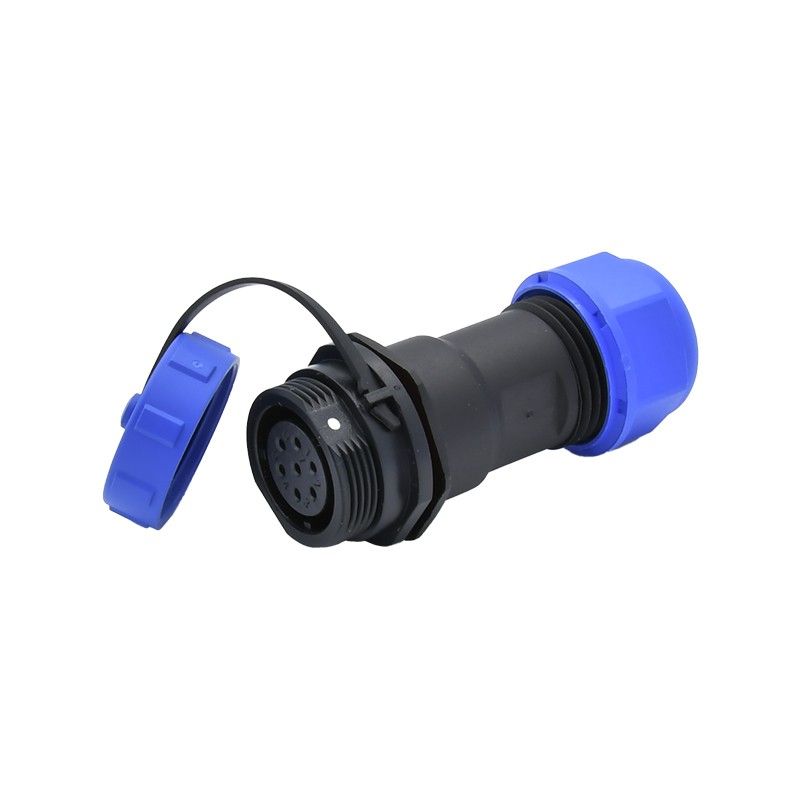

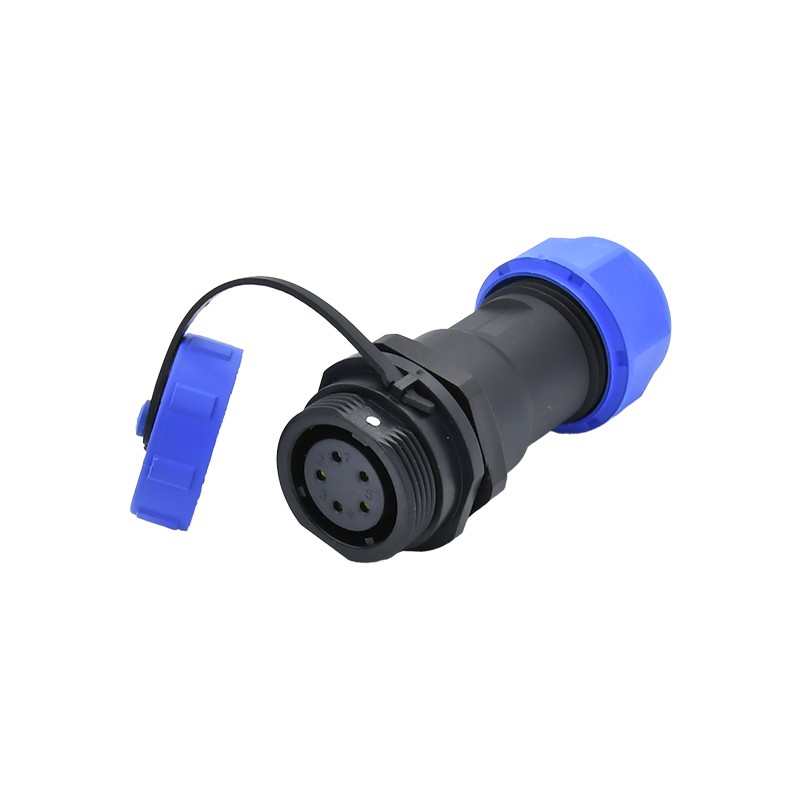

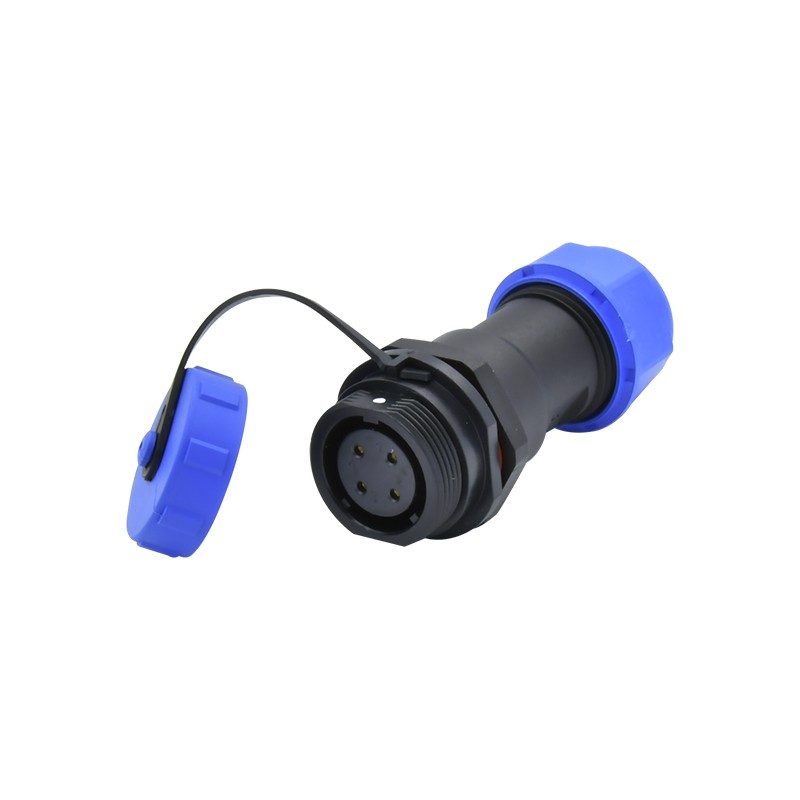

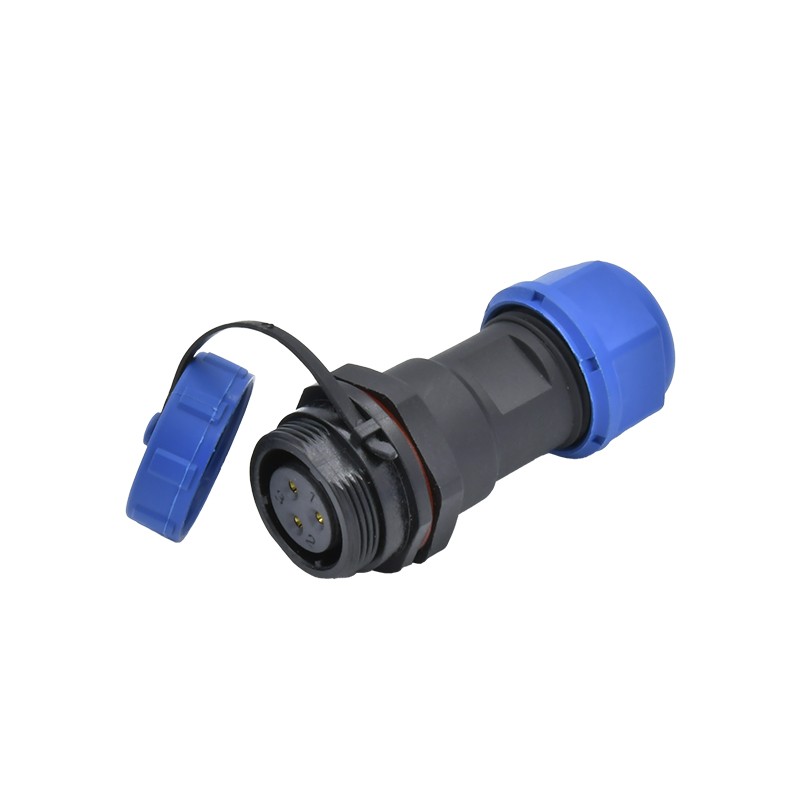

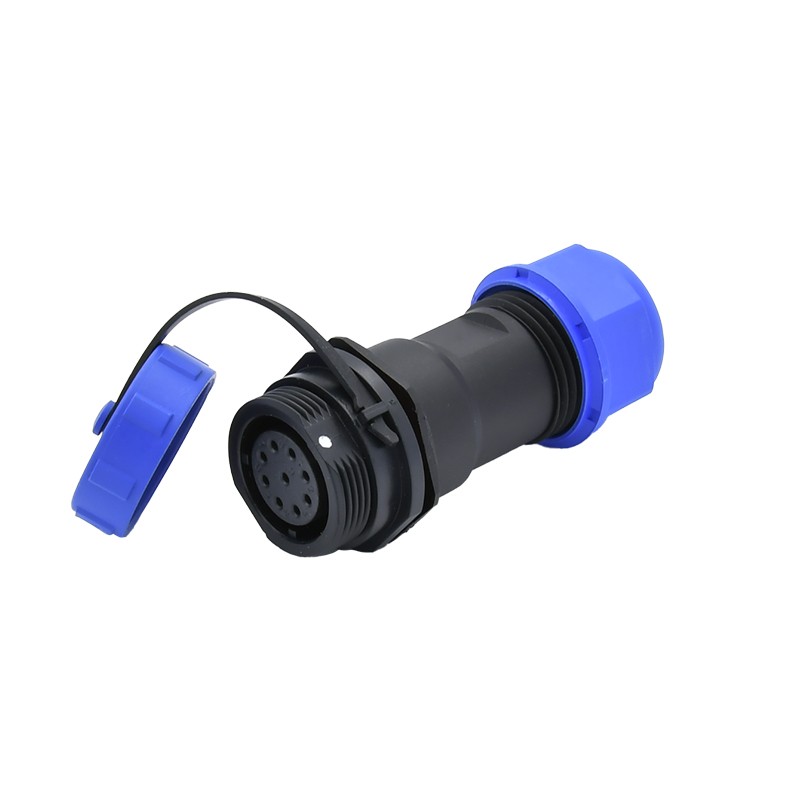

Product Description:
Connector series: RG1711 Assembly
Gender: Female
Mounting type: Straight
Order No.: RG1711S-*P (*refers to pin number)
Download:
RG1710P-P.pdf
Electrical Characteristics:
|
Number of pins |
2 | 3 | 4 |
2B |
3B |
4B |
5 | 7 | 9 | 10 |
| Contact diameter (mm) |
1.5 |
1 |
2 |
1 |
1 |
|||||
|
Rated current (A) |
10 | 5 |
15 |
5 | 5 | |||||
|
Rated voltage (AC.V) |
500 |
500 |
500 |
500 |
400 |
|||||
|
Tested voltage (AC.V) 1min |
1500 |
1500 |
1500 |
1500 |
1200 |
|||||
|
Contact resistance (mΩ) |
2.5 |
5 |
2.5 |
5 |
5 |
|||||
|
Wire size (mm2) |
≤2 |
≤0.75 |
≤2 |
≤0.75 |
≤0.75 |
|||||
| Wire size (AWG) | 14 | 18 |
14 |
18 |
18 |
|||||
General Information:
|
Contact Termination |
Solder |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
| Shell material |
PC,Nylon66,fine resistance:V-0 |
|
Insert material |
PPS (max temperature:260℃) |
|
Contact material |
Brass copper plating |
