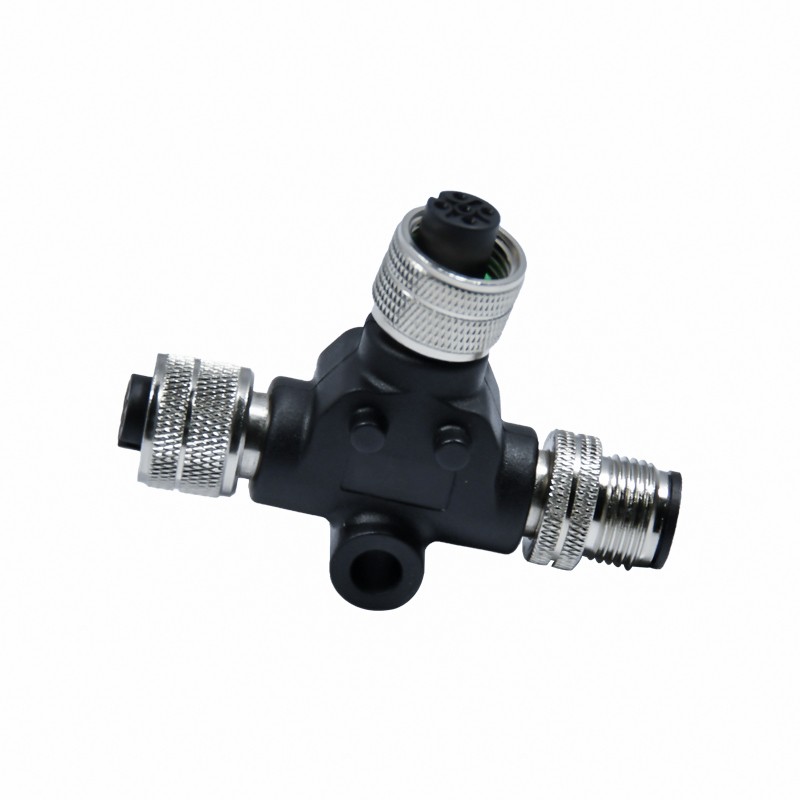

Product Description:

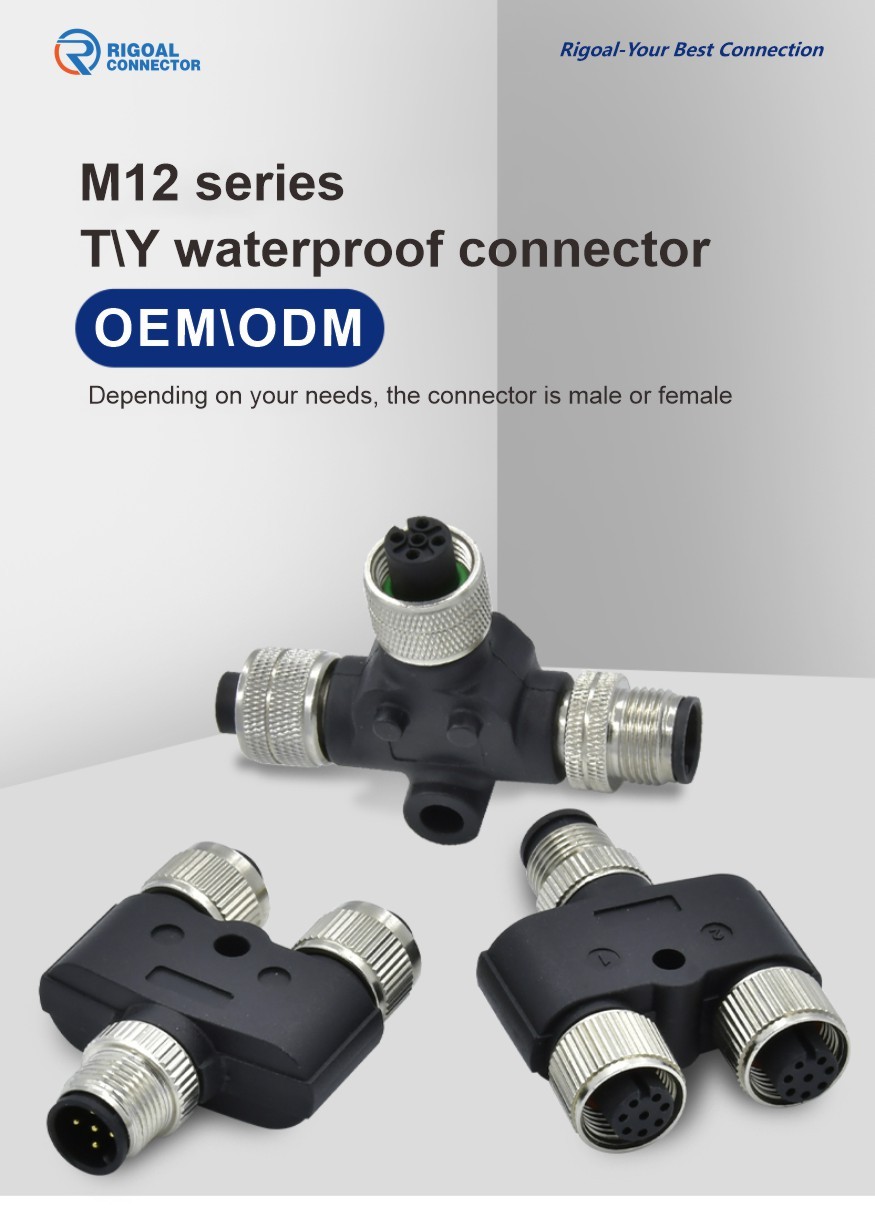

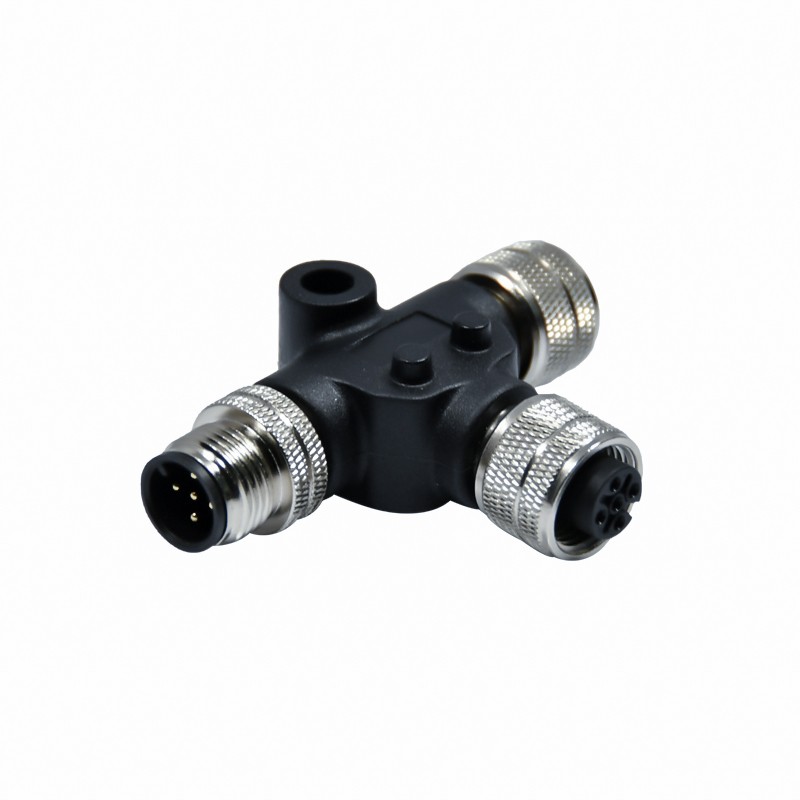

Connector series: M12 T Adapters

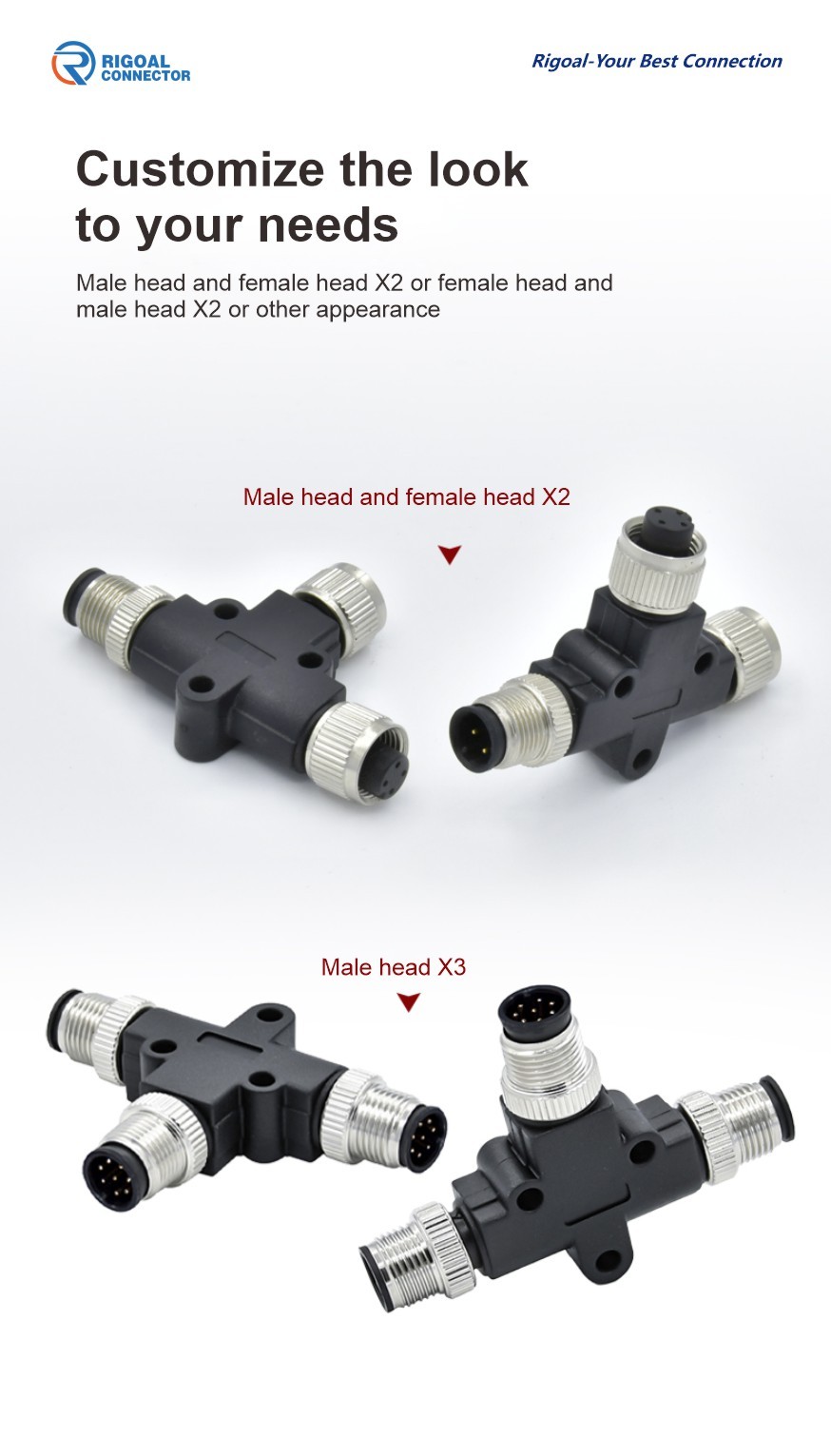

Gender: Male/Female

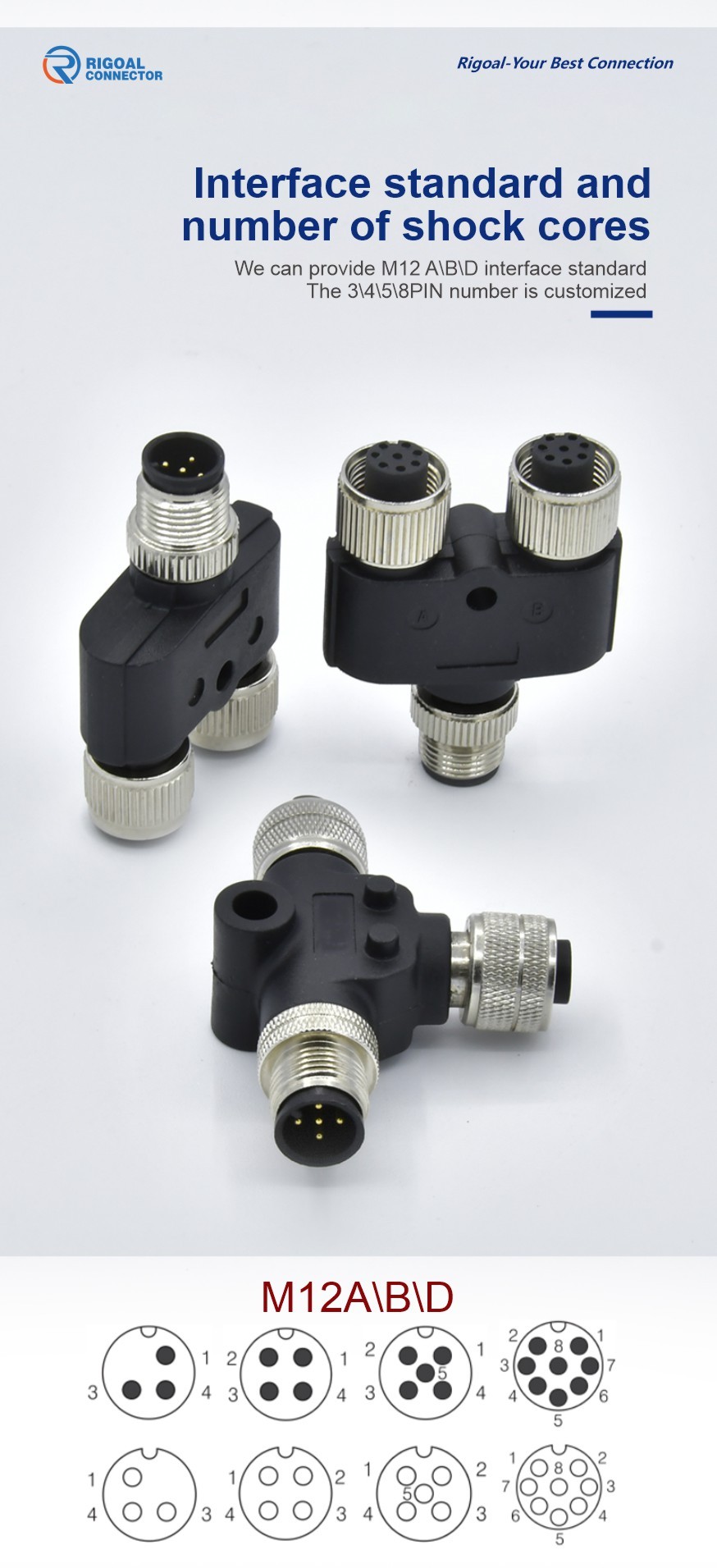

Coding: A,B,D
Orientation type:Straight
Part No.: RG121012
Download:
RG121012.pdf
Electrical Characteristics
|
Number of contacts |
3 |
4 |
5 |
8 |
12 |
17 |
5 |
4 |
|
Code |
A |
A |
A |
A |
A |
A |
B |
D |
|
Rated voltage |
250V |
60V |
30V |
30V |
250V |
60V |
250V |
|
|
Rated current |
4A |
4A |
2A |
1A |
4A |
4A |
4A |
|
|
Cable size in mm2 |
0.34 mm2 |
|||||||
General Information:
|
Contact Termination |
Solder |
|

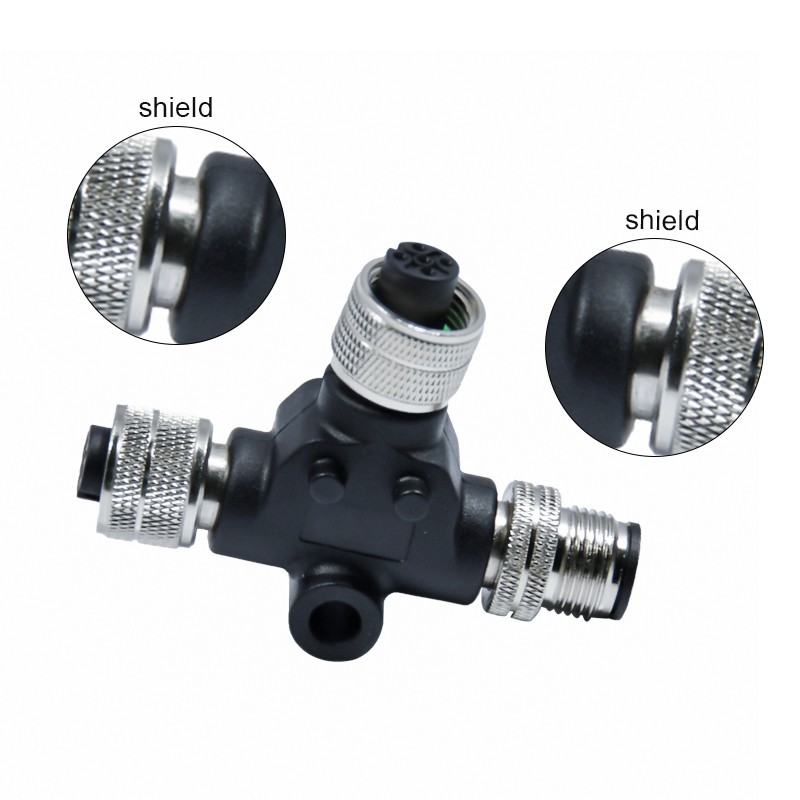

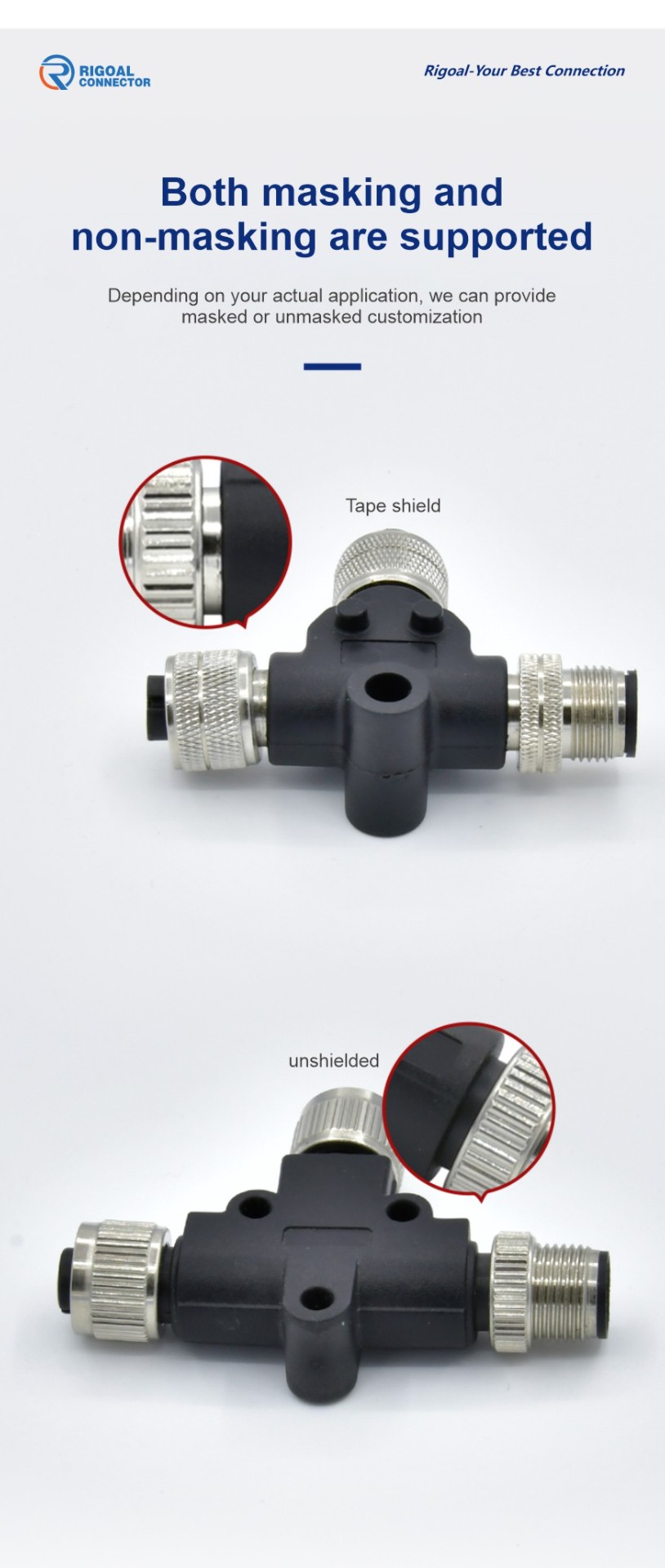

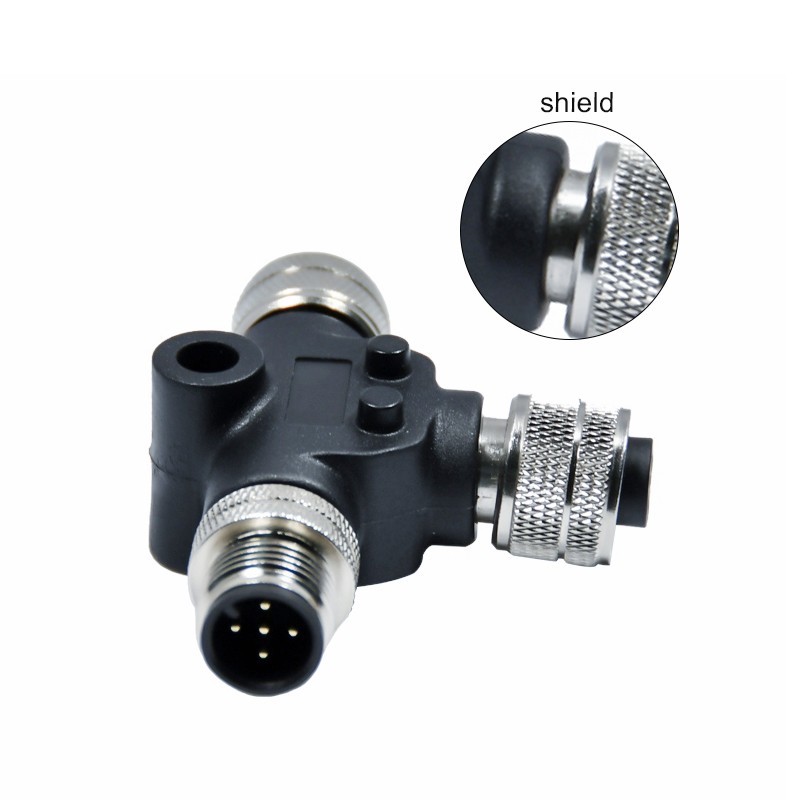

Shielding |
Available |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤10 MΩ |
|
Pin contact material |
Cuzn |
|
Contact plating |
Au (gold plating) |
|
Connector insert |
PA |
