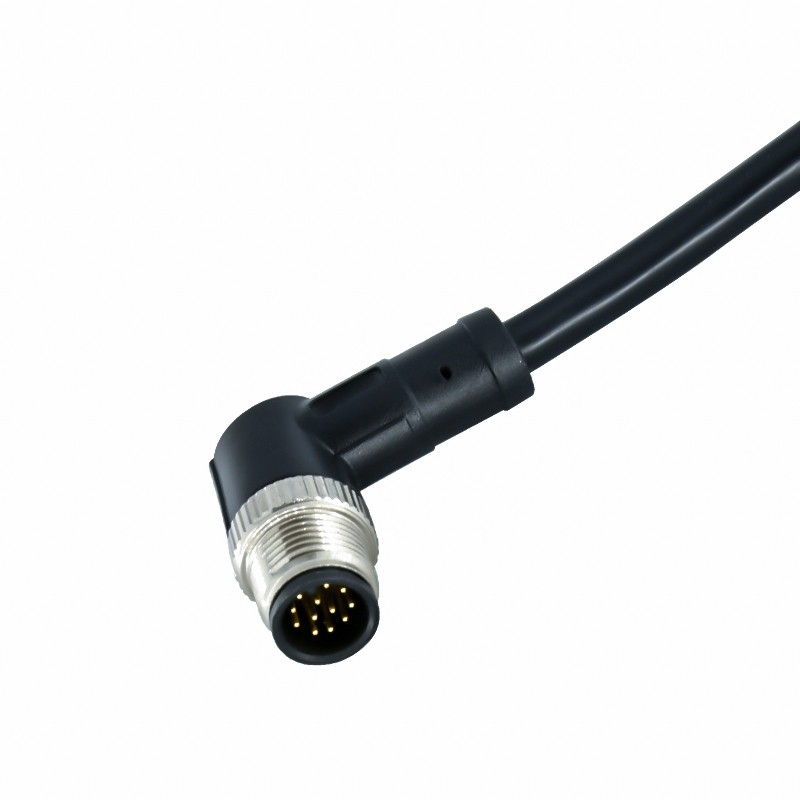

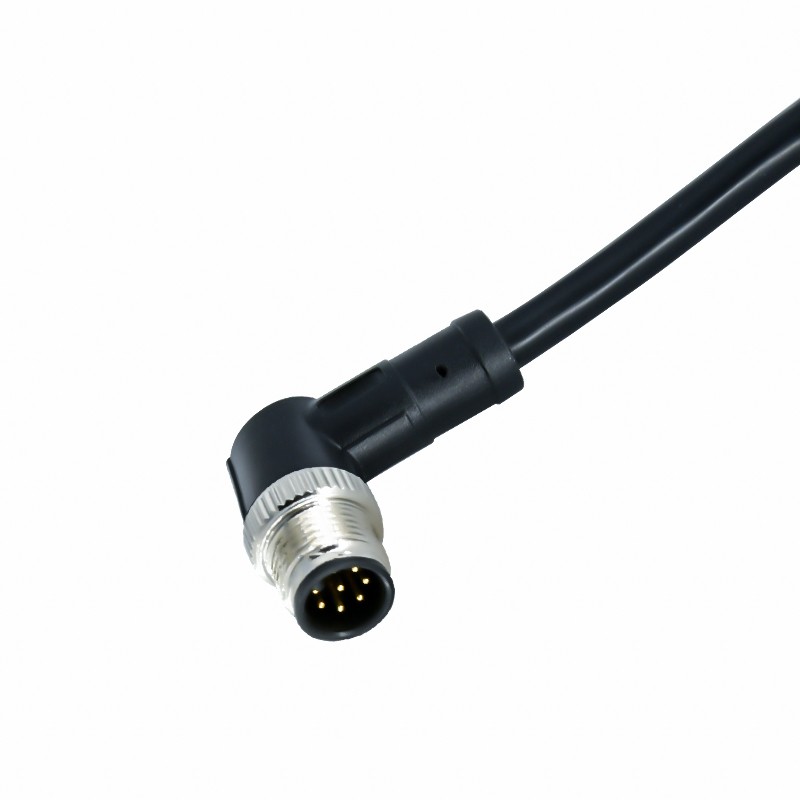

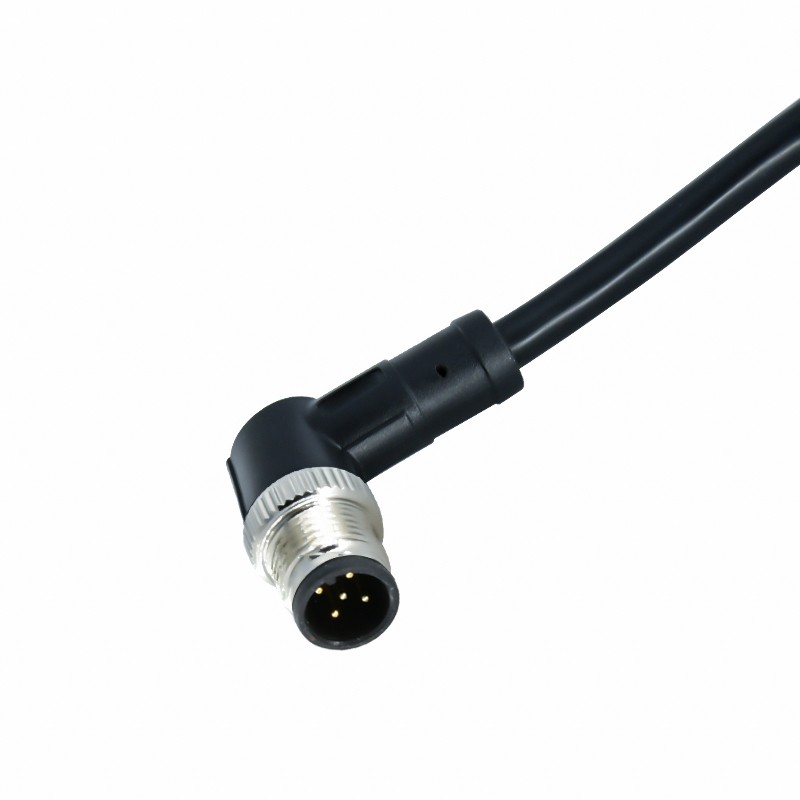

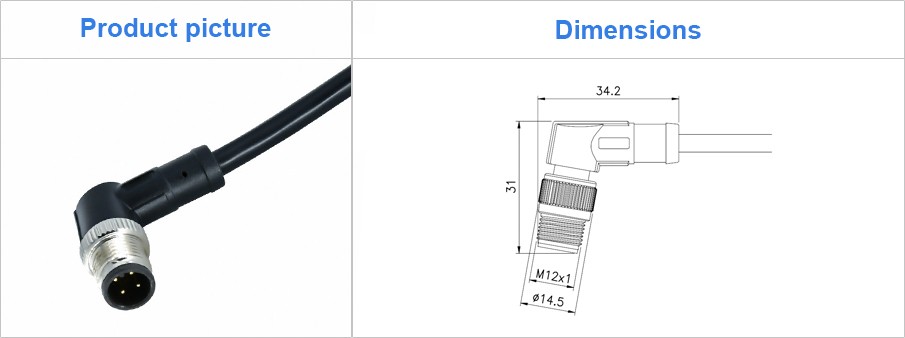

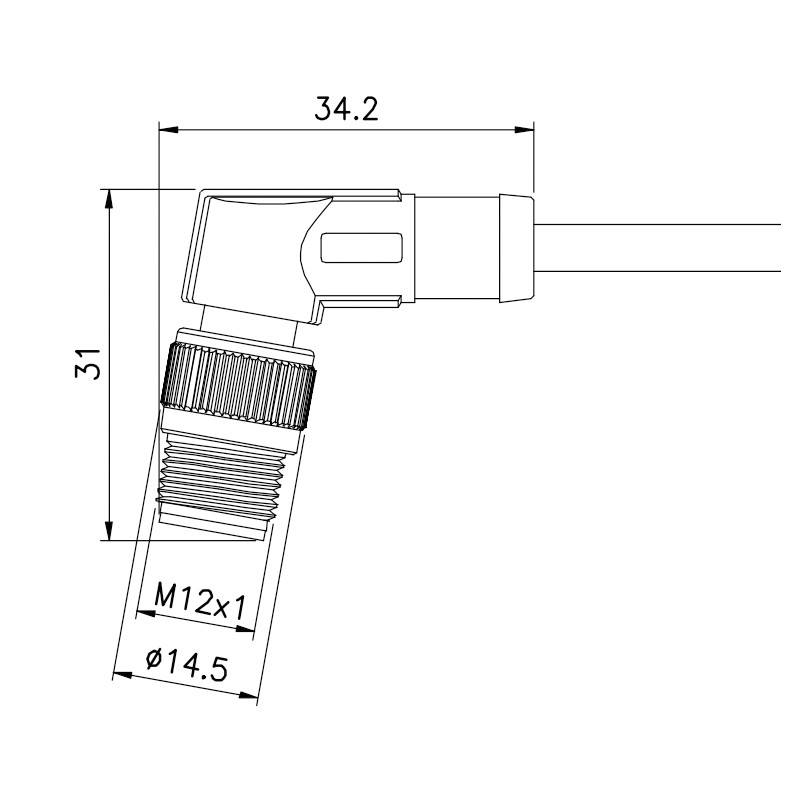

Product Description:
Connector series: M12 cable
Gender: Male
Coding: A,B,D
Orientation type: Angled
Part No.: M12-x-MR-xx-length-xxx (x:code,xx:Pin No,xxx:cable material)
Download:
M12-x-MR-xx-length-xxx.pdf
Brief Introduction:
M12 circular connector is the most commonly used connector in the factory automation. With full series of field wireable connector, overmolded cables, panel connector, T/Y splitter, wire harness and accessories, it is ideal designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
• M12*1 Thread Locking Mechanism, Anti-vibration Locking Design
• Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors
• A, B, C, D, K, L, X, S, T Coding Available
• PVC (general) or PUR (oil resistant) cable materials are available
• Cable length can be customized as user's requirement
• Straight and angled two orientation type
• Shield and Un-shield Version Available
General Information:
Number of contacts |
3 |
4 |
5 |
8 |
12 |
17 |
5 |
4 |
Code |
A |
A |
A |
A |
A |
A |
B |
D |
Rated voltage |
250V |
250V |
60V |
30V |
30V |
250V |
60V |
250V |
Rated current |
4A |
4A |
4A |
2A |
1A |
4A |
4A |
4A |
Wire guage in mm2 |
0.14mm2-0.34mm2 |
|||||||
Wire guage in AWG |
26AWG-22AWG |
|||||||
Termination |
Moulded on cable |
|||||||
Shielding |
Available |
|||||||
Operating temperature |
-25℃ ~ +85℃ |
|||||||
Degree of protection |
IP67/IP68 |
|||||||
Mechanical operation |
>500 mating cycles |
|||||||
Contact resistance |
≤10 MΩ |
|||||||
Materials |
||||||||
Pin contact |
Cuzn |
|||||||
Contact plating |
Au (gold plating) |
|||||||
Cable jacket |
PVC/PUR |
|||||||
Connector insert |
TPU |
