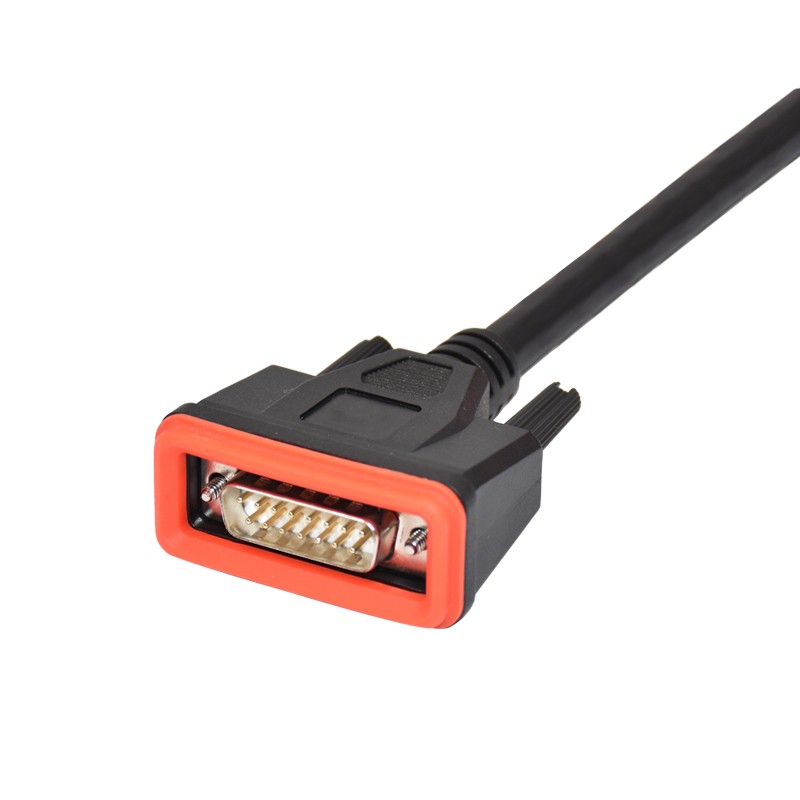

Product Description:
Connector series: D-SUB Cable
Gender: Male
Locking type: Fix screw
Mounting type: Straight
Part No.: RG-DB07
Download:
RG-DB07.pdf
General Information:
|
Number of contacts |
15pin | |
|
Rated voltage |
300V |
|
|
Rated current |
5A |
|
|
Connector locking system |
Solder | |
|
Operating temperature |
-30℃ ~ +105℃ |
|
|
Degree of protection |
IP67/IP68 |
|
|
Mechanical operation |
>500 mating cycles |
|
|
Contact resistance |
≤10 MΩ |
|
|
Material of connector |
Cuzn PA66 |
|
|
Contact plating |
Au（gold plating) |
|
|
Cable size |
28-22 AWG |
|
