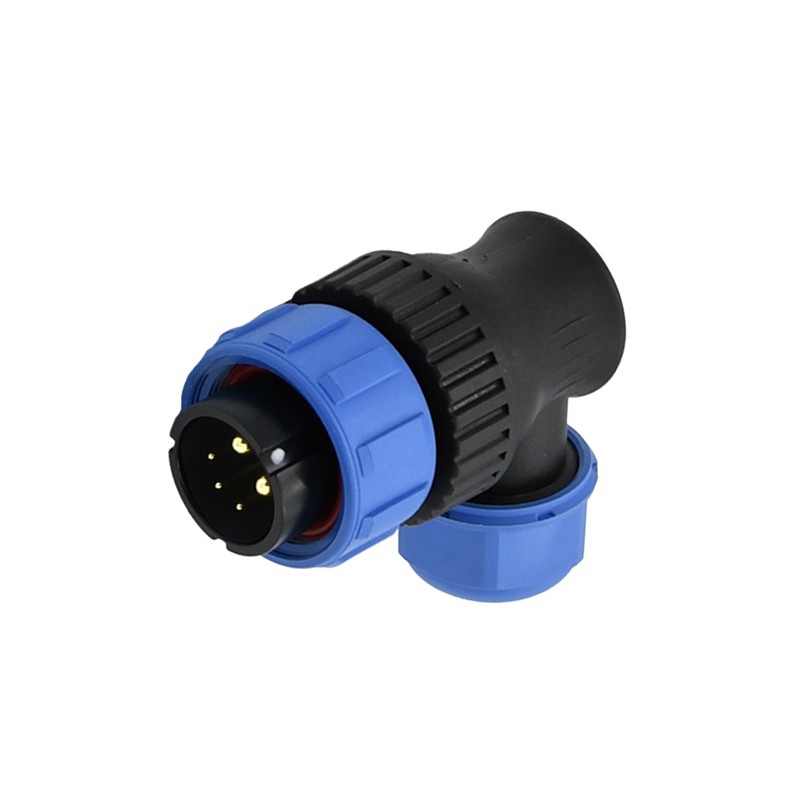

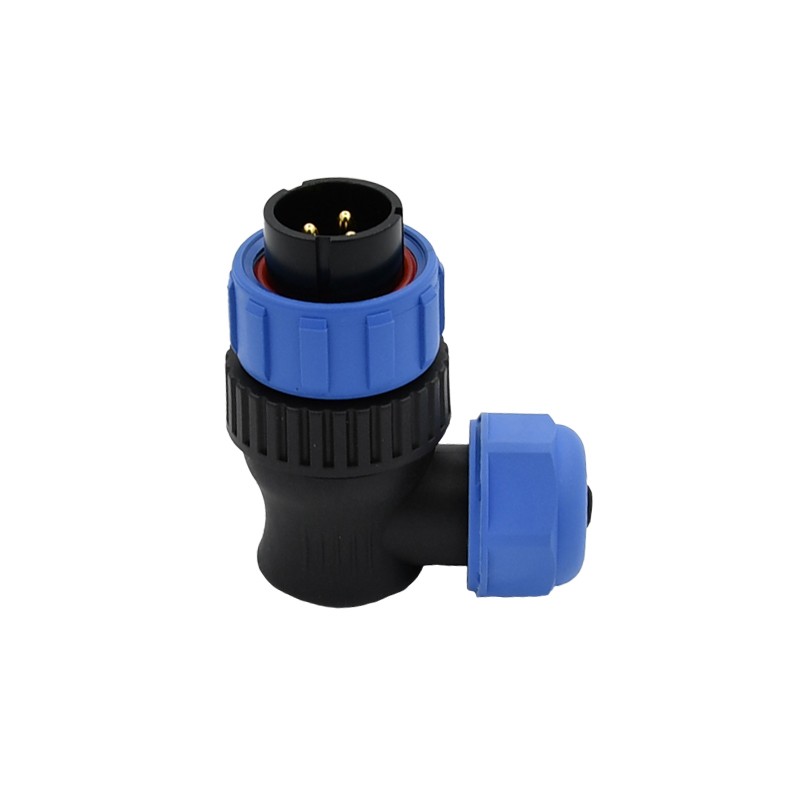

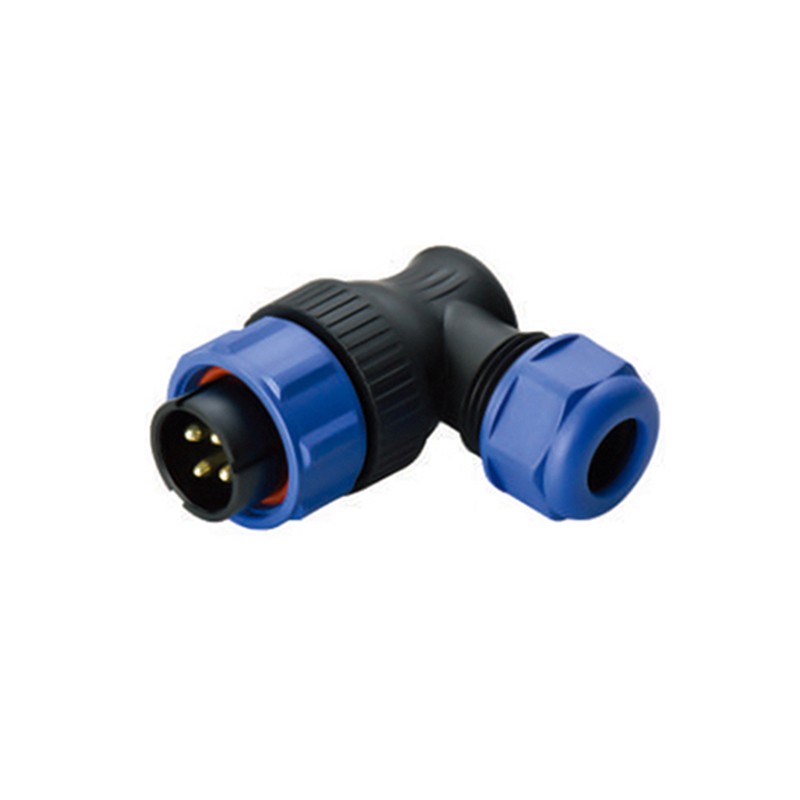

Product Description:
Connector series: RG2116 Assembly
Gender: Male
Mounting type: Right Angled
Order No.: RG2116P-*P (*refers to pin number)
Download:
RG21.pdf
Electrical Characteristics:
|
Number of pins |
2 | 3 | 4 |
5 |
5B |
5C |
7 | 9 | 12 | |
| Contact diameter (mm) | 3 |
3x2/1x3 |
2 |
1 |
||||||
|
Rated current (A) |
30 |
30/5 |
15 |
5 | ||||||
|
Rated voltage (AC.V) |
500 |
500 |
500 |
500 |
||||||
|
Tested voltage (AC.V) 1min |
1500 |
1500 |
1500 |
1500 |
||||||
|
Contact resistance (mΩ) |
1 |
1/5 |
2.5 |
5 |
||||||
|
Wire size (mm2) |
≤1.5 |
/ | / | / | ||||||
| Wire size (AWG) | 15 | / | / | / | ||||||
General Information:
|
Contact Termination |
Solder |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
| Shell material |
PC,Nylon66,fine resistance:V-0 |
|
Insert material |
PPS (max temperature:260℃) |
|
Contact material |
Brass copper plating |
