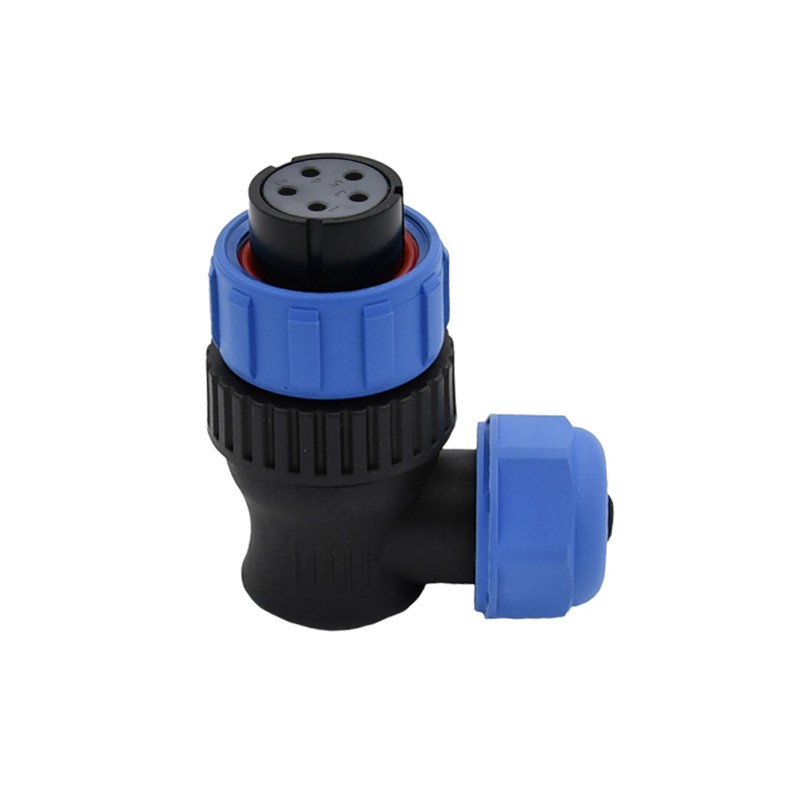

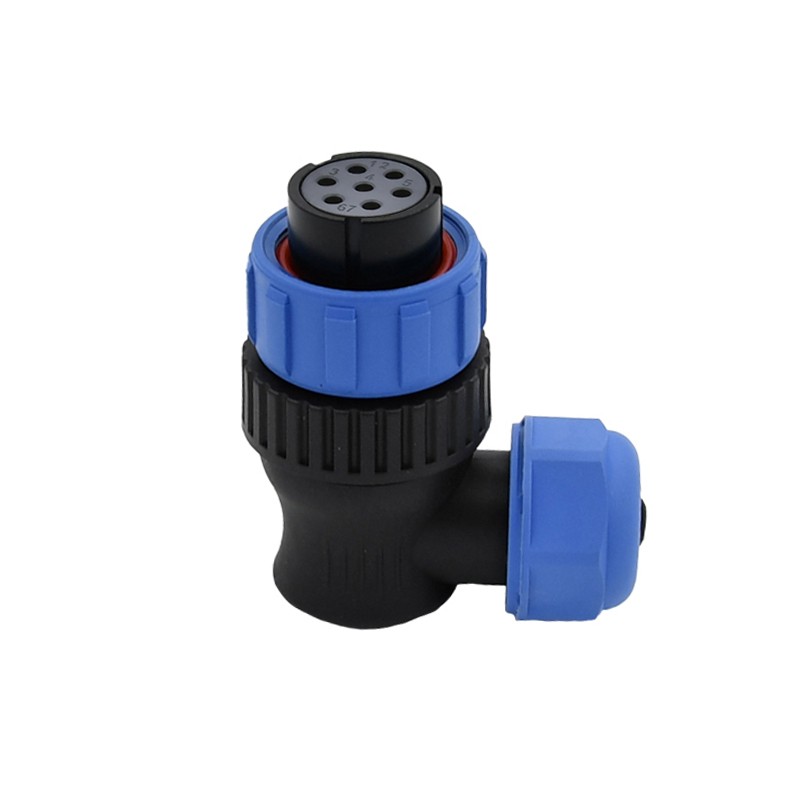

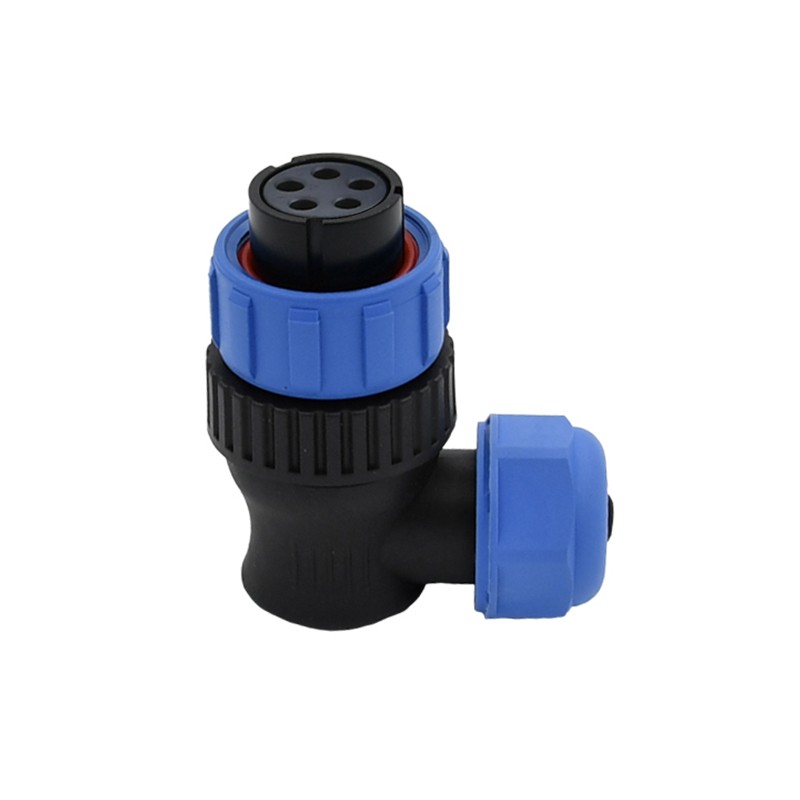

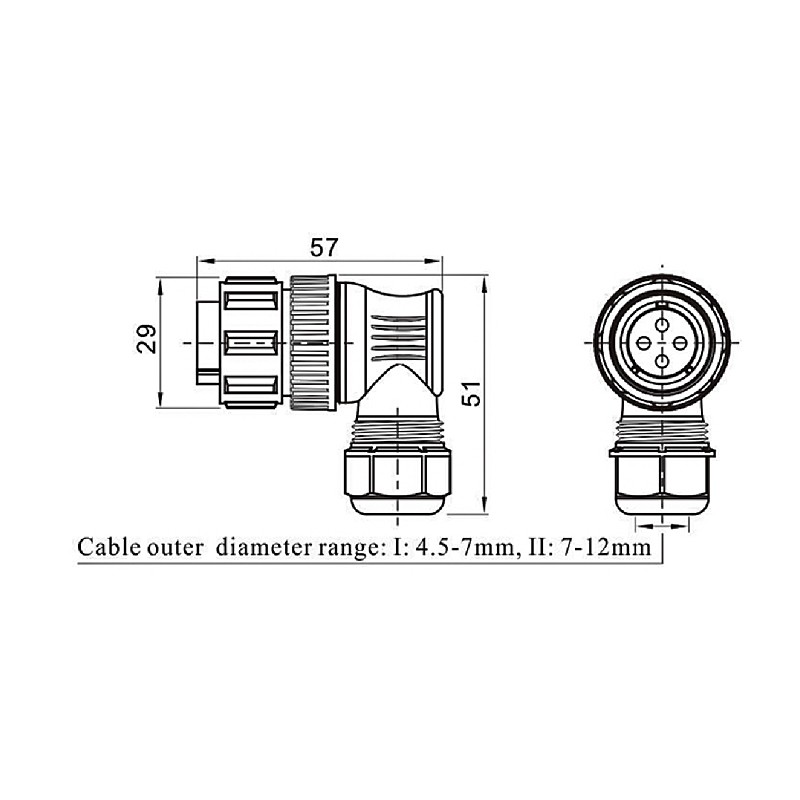

Product Description:
Connector series: RG2116 Assembly
Gender: Female
Mounting type: Right Angled
Order No.: RG2116S-*P (*refers to pin number)
Download:
RG21.pdf
Electrical Characteristics:
Number of pins
2
3
4
5
5B
5C
7
9
12
Contact diameter (mm)
3
3x2/1x3
2
1
Rated current (A)
30
30/5
15
5
Rated voltage (AC.V)
500
500
500
500
Tested voltage (AC.V) 1min
1500
1500
1500
1500
Contact resistance (mΩ)
1
1/5
2.5
5
Wire size (mm2)
≤1.5
/
/
/
Wire size (AWG)
15
/
/
/
General Information:
|
Contact Termination |
Solder |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
| Shell material |
PC,Nylon66,fine resistance:V-0 |
|
Insert material |
PPS (max temperature:260℃) |
|
Contact material |
Brass copper plating |
