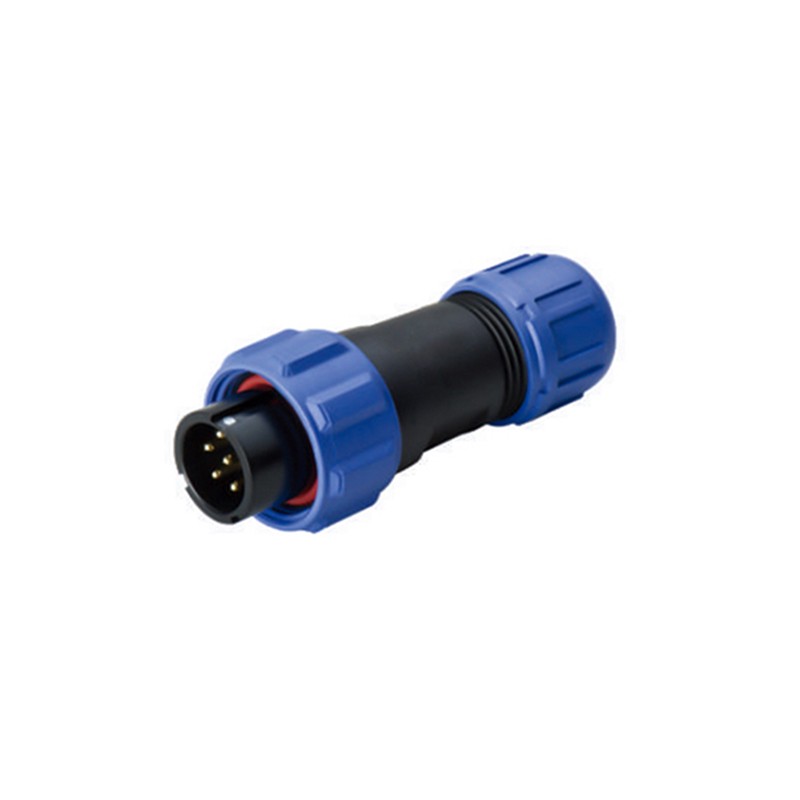

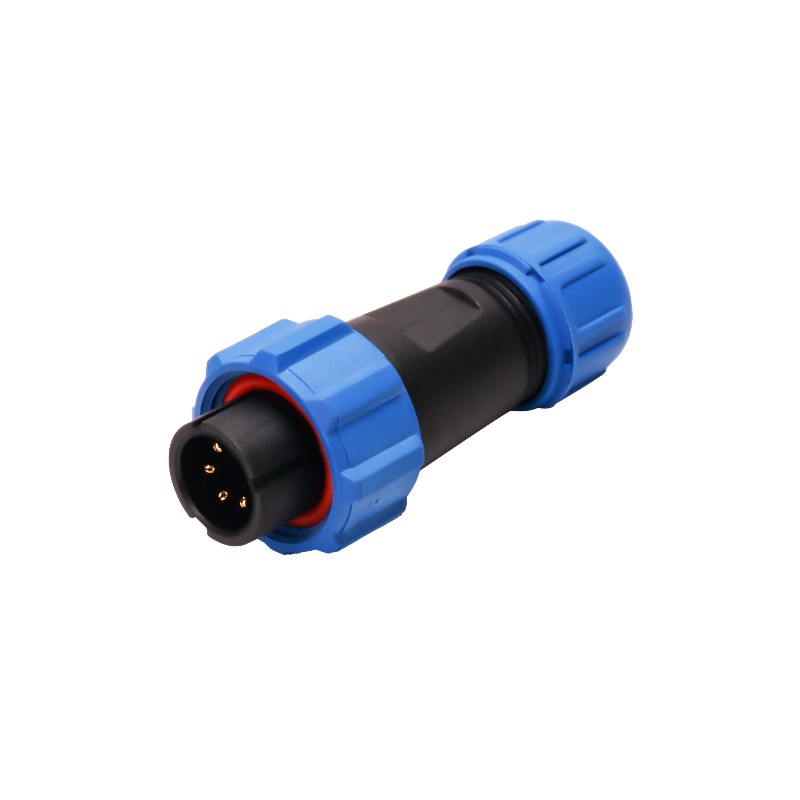

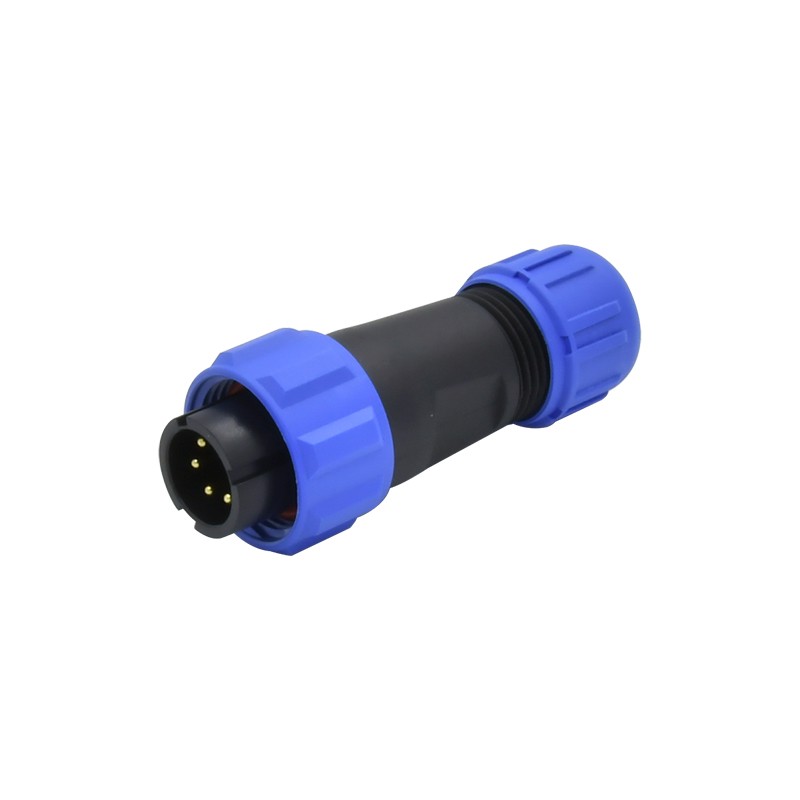

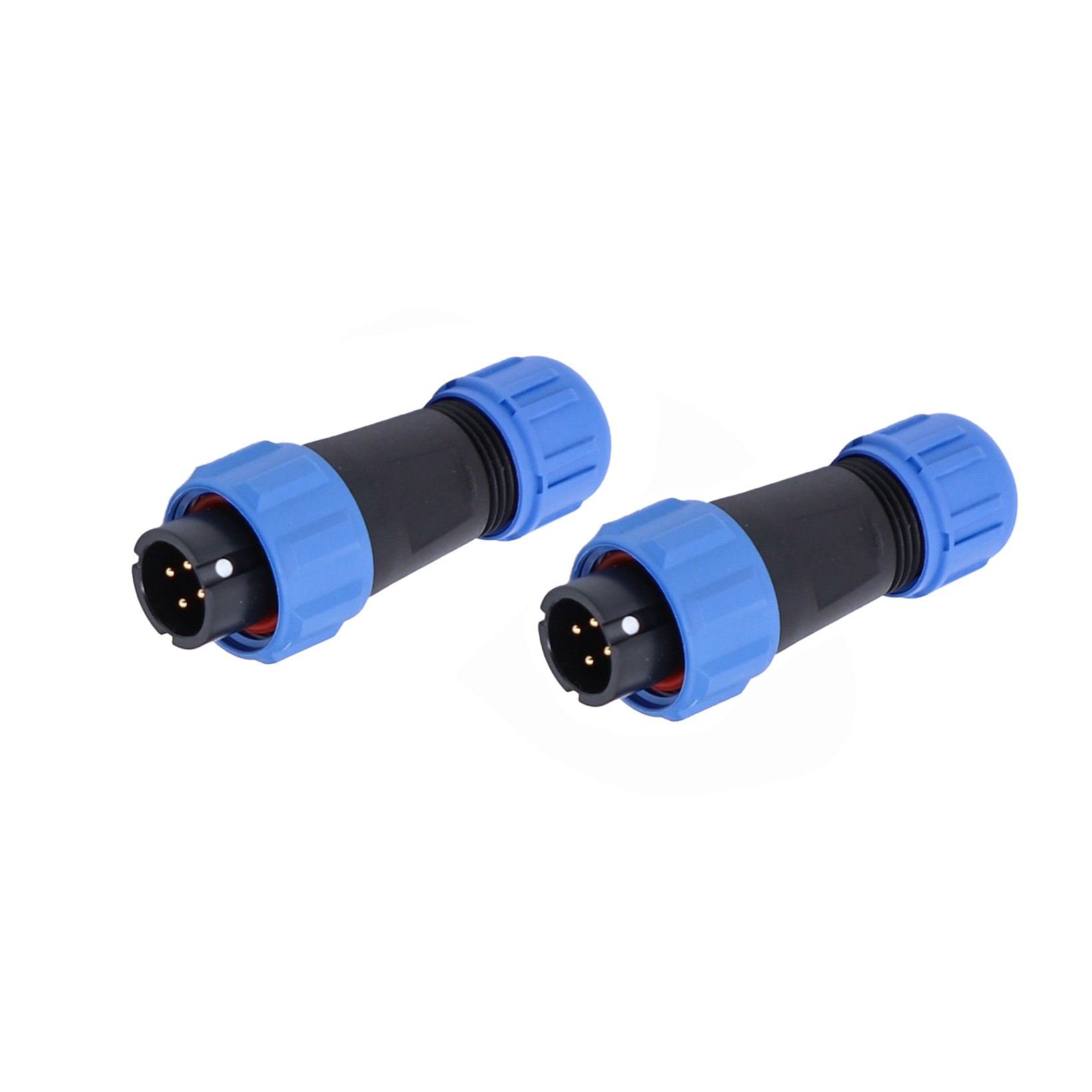

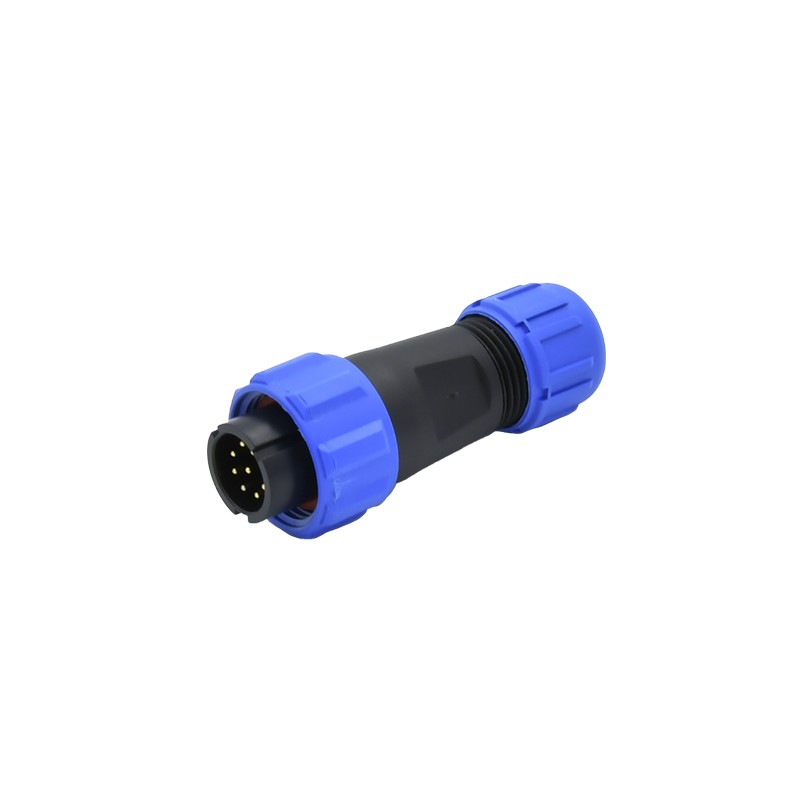

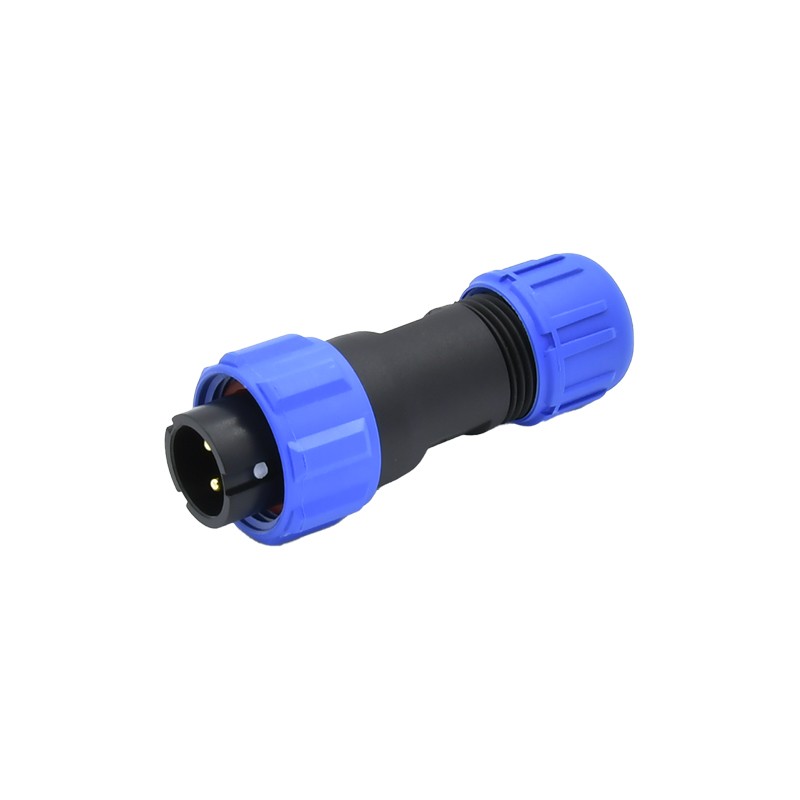

Product Description:
Connector series: RG1310 Assembly
Gender: Male
Mounting type: Straight
Order No.: RG1310P-*P (*refers to pin number)
Download:
RG1310P-P.pdf
Electrical Characteristics:
|

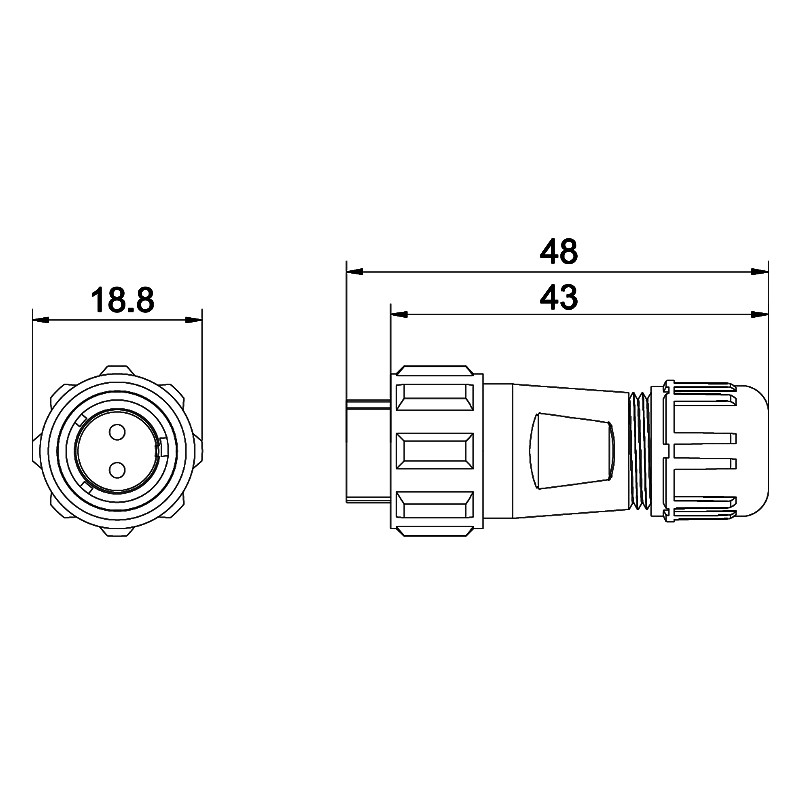

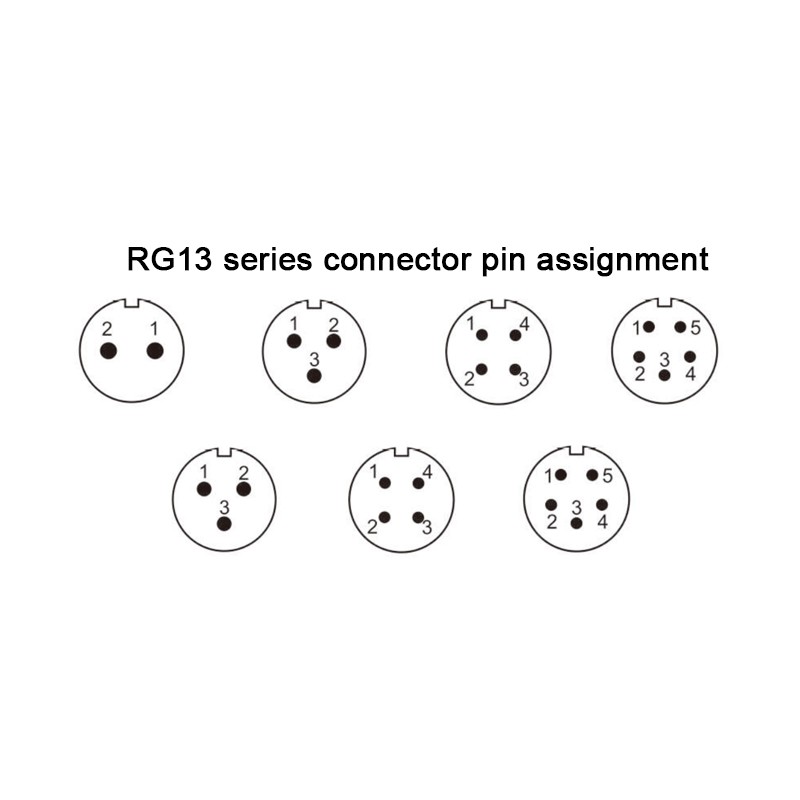

Number of pins |
2 | 3 | 4 | 5 |
6 |
7 |
9 |
| Contact diameter (mm) | 1.6 | 1.6 | 1 | 1 |
1 |
1 |
0.7 |
|
Rated current (A) |
13 | 13 | 5 | 5 | 5 | 5 |
3 |
|
Rated voltage (AC.V) |
250 |
250 |
200 |
180 |
125 |
125 |
125 |
|
Tested voltage (AC.V) 1min |
1500 |
1500 |
1500 |
1000 |
1000 |
1000 |
1000 |
|
Contact resistance (mΩ) |
2.5 |
2.5 |
5 |
5 |
5 |
5 |
10 |
|
Wire size (mm2) |
≤2 |
≤2 |
≤0.75 |
≤0.75 |
≤0.75 |
≤0.75 |
≤0.5 |
| Wire size (AWG) | 14 |
14 |
18 | 18 |
18 |
18 |
20 |
General Information:
|
Contact Termination |
Solder |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
| Shell material |
PC,Nylon66,fine resistance:V-0 |
|
Insert material |
PPS (max temperature:260℃) |
|
Contact material |
Brass copper plating |
