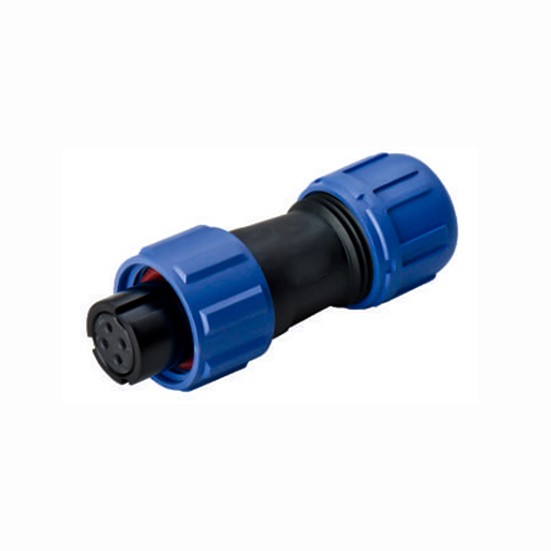

Product Description:

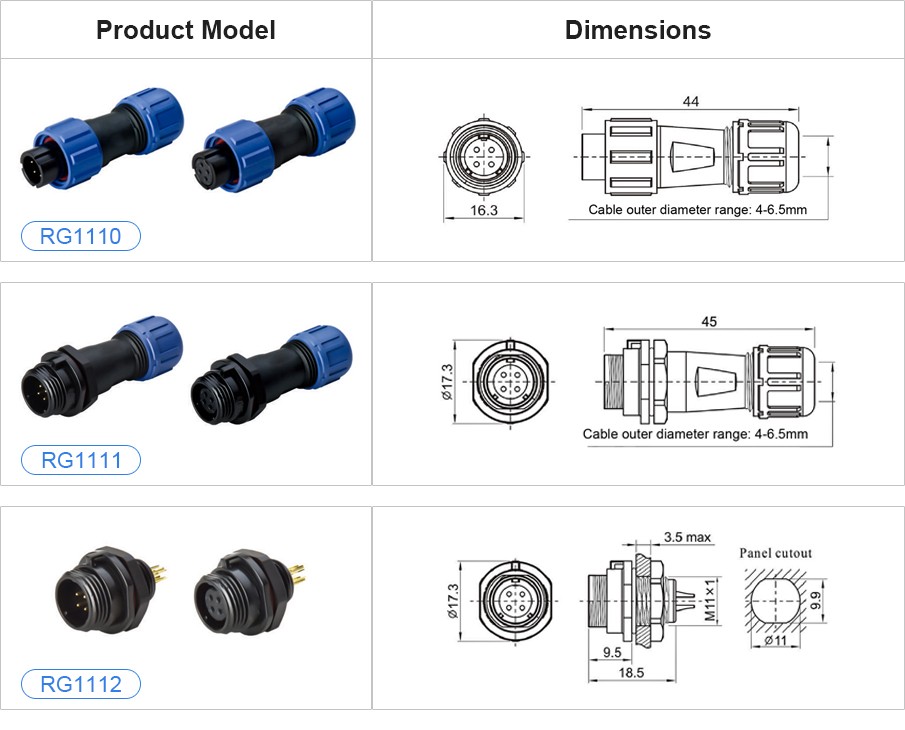

Connector series: RG1110 Assembly
Gender: Female
Mounting type: Straight

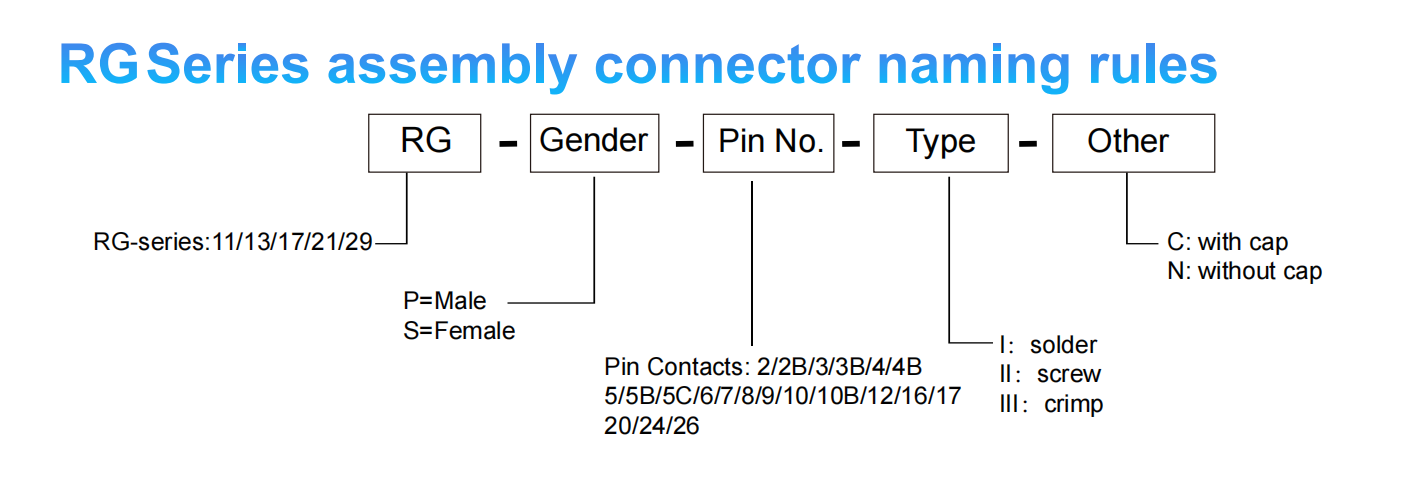

Order No.: RG1110P-*P/RG1110S-*P (*refers to pin number)
Download:
RG1110P-PRG1110S-P.pdf
Electrical Characteristics:
|
Number of pins |
2 | 3 | 4 | 5 |
| Contact diameter (mm) | 1 | 1 | 0.7 | 0.7 |
|
Rated current (A) |
5 |
5 | 3 | 3 |
|
Rated voltage (AC.V) |
180 |
180 |
125 |
125 |
|
Tested voltage (AC.V) 1min |
1000 |
1000 |
1000 |
1000 |
|
Wire size (mm2) |
≤0.75 |
≤0.75 |
≤0.5 |
≤0.5 |
| Wire size (AWG) | 18 |
18 |
20 |
20 |
General Information:
|
Contact Termination |
Solder |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤5 MΩ |
| Shell material |
PC,Nylon66,fine resistance:V-0 |
|
Insert material |
PPS (max temperature:260℃) |
|
Contact material |
Brass copper plating |
