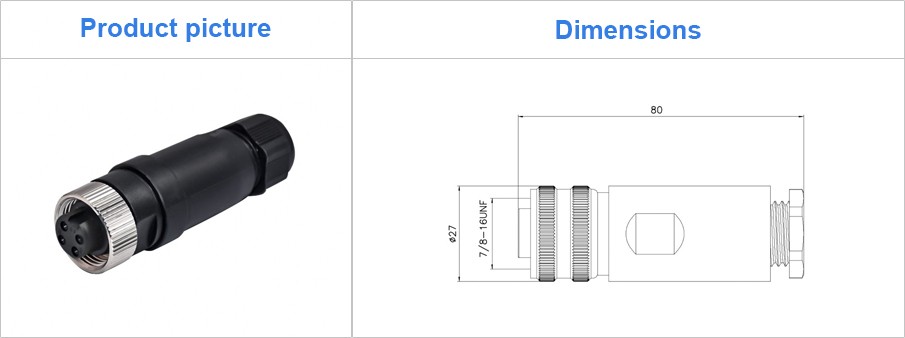

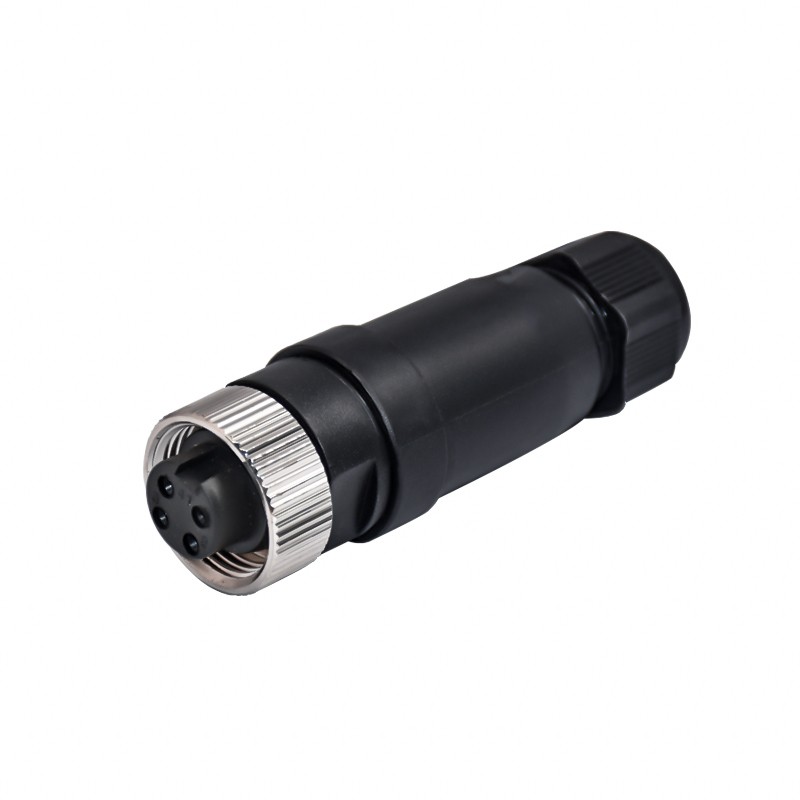

Product Description:
Connector series: 7/8'' Assembly
Gender: Female
Mounting type: Straight
Model No.: RG7/8''1002
Download:
RG78”2002.pdf
Brief Introduction:
7/8'' mini-change connector is one of the most important connectors in factory automation and Fieldbus. The 7/8" connectors designed for both power supply and signal transmission, which is widely used in sensors and actuators, packaging and transfer system, NMEA 2000 marine navigation and DeviceNet. Rigoal Connector offers molded cable type, field installable plugs, panel receptacles and T-Splitter for option to be applied in various devices.
• Circular Connector with 7/8''-16 UN screw-locking
• Moulded versions, Cable assembly, Panel receptacles possible
• Screw joint termination
• 3,4,,5,6 pin are available
• Straight and angled versions
General Information:
|
Number of contacts |
3 |
4 |
5 |
6 |
|
Rated voltage |
300V |
300V |
300V |
300V |
|
Rated current |
13A |
9A |
9A |
9A |
|
Contact Termination |
Screw joint |
|||
|
Shielding |
Unavailable |
|||
|
Operating temperature |
-20℃ ~ +80℃ |
|||
|
Degree of protection |
IP67/IP68 |
|||
|
Mechanical operation |
>500 mating cycles |
|||
|
Contact resistance |
≤5 MΩ |
|||
|
Material |
||||
|
Material of Connector |
Cuzn,TPU,PVC/PUR |
|||
|
Contact plating |
Au (gold plating) |
|||
|
housing |
Zinc diecasting nickel plated |
|||
