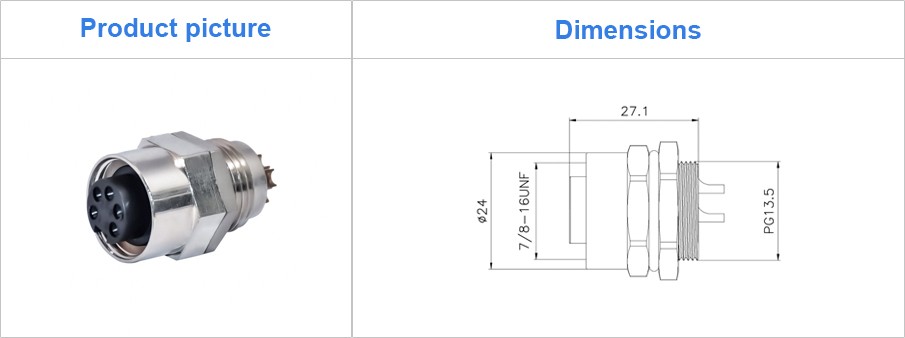

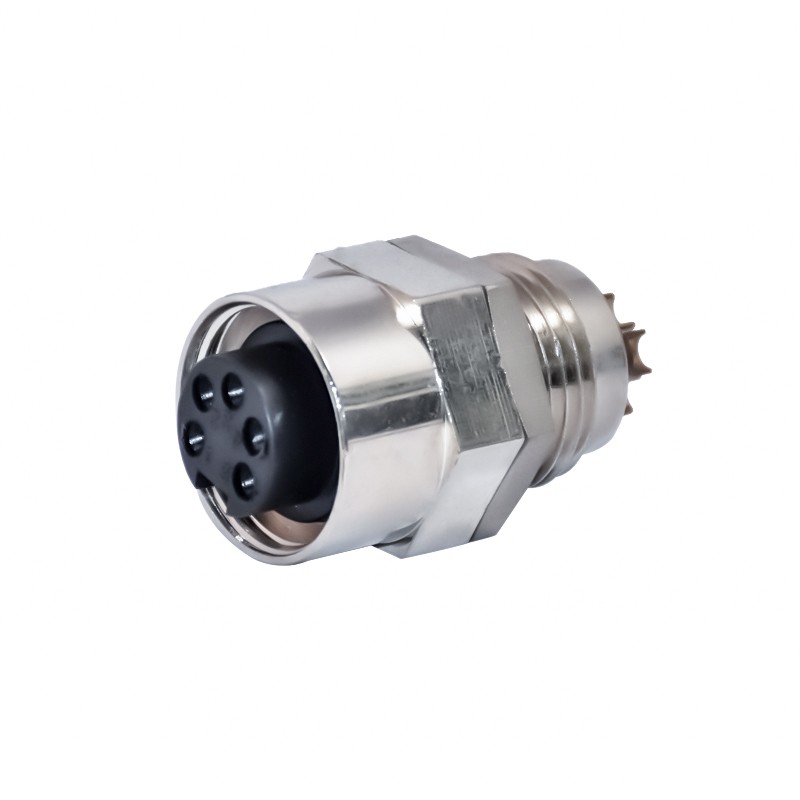

7/8 Female Panel Mount, Rear Fastened, Solder Type

Product Description:

Connector series: 7/8'' Panel Mount

Gender: Female

Mounting type: Rear fastened

Model No.: RG7/8''3002

Download:

  • Specification

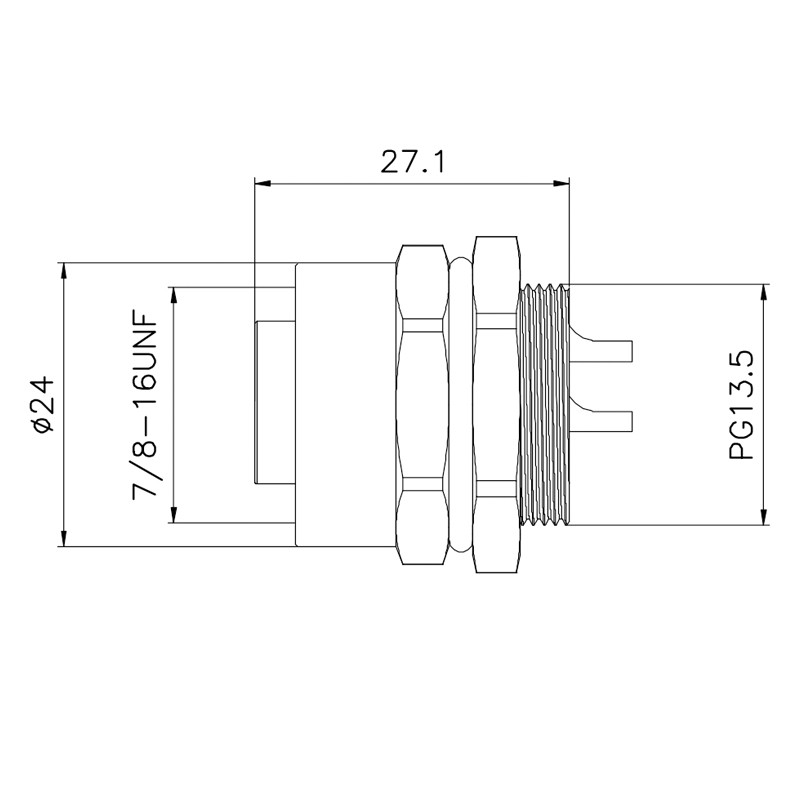

  • Drawing
  • Order method



Brief Introduction:

7/8'' mini-change connector is one of the most important connectors in factory automation and Fieldbus. The 7/8" connectors designed for both power supply and signal transmission, which is widely used in sensors and actuators, electric motors, NMEA 2000 marine navigation and DeviceNet. Rigoal Connector offers molded cable type, field installable plugs, panel receptacles and T-Splitter for option to be applied in various devices.



• Circular Connector with 7/8''-16 UN screw-locking

• Moulded versions, Cable assembly, Panel receptacles possible

• Screw joint termination

• 3,4,5,6 pin are available

• Straight and angled versions



General Information:

Number of contacts
3
4
5
6
Rated voltage
300V
300V
300V
300V
Rated current
13A
9A
9A
9A
Contact Termination
Screw joint
Shielding
Unavailable
Operating temperature
-20℃ ~ +80℃
Degree of protection
IP67/IP68
Mechanical operation
>500 mating cycles
Contact resistance
≤5 MΩ
Material
Material of Connector
Cuzn,TPU,PVC/PUR
Contact plating
Au (gold plating)
housing
Zinc diecasting nickel plated
