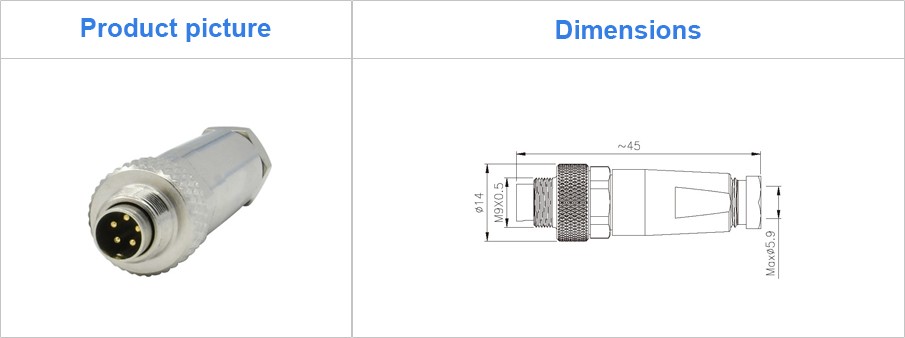

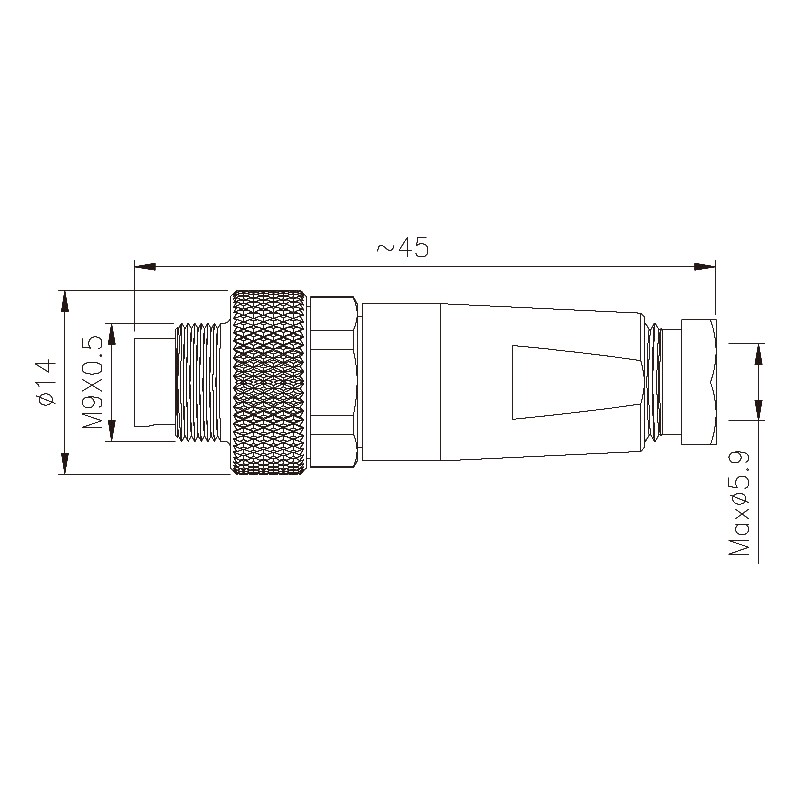

Product Description:
Connector series: M9 Assembly
Gender: Male
Coding: A
Orientation type: Straight
Part No.: M9-A-MS-Pin No-SH
Download:
RG092001.pdf

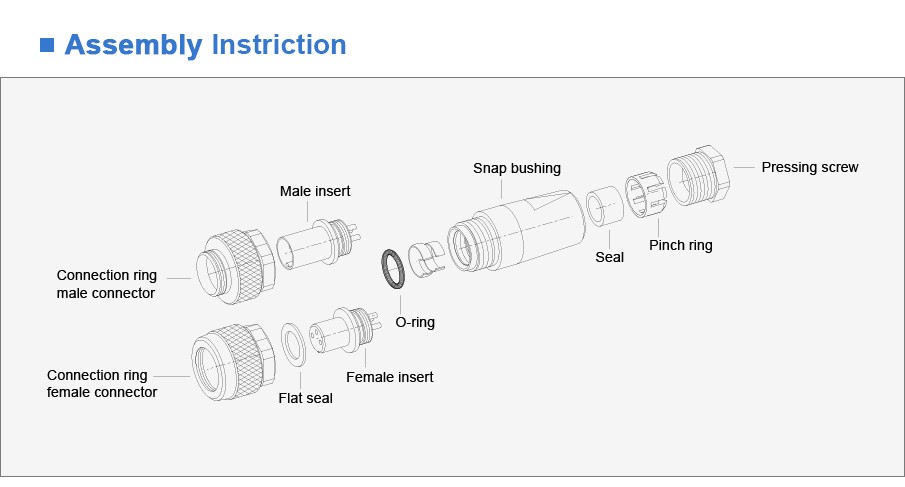

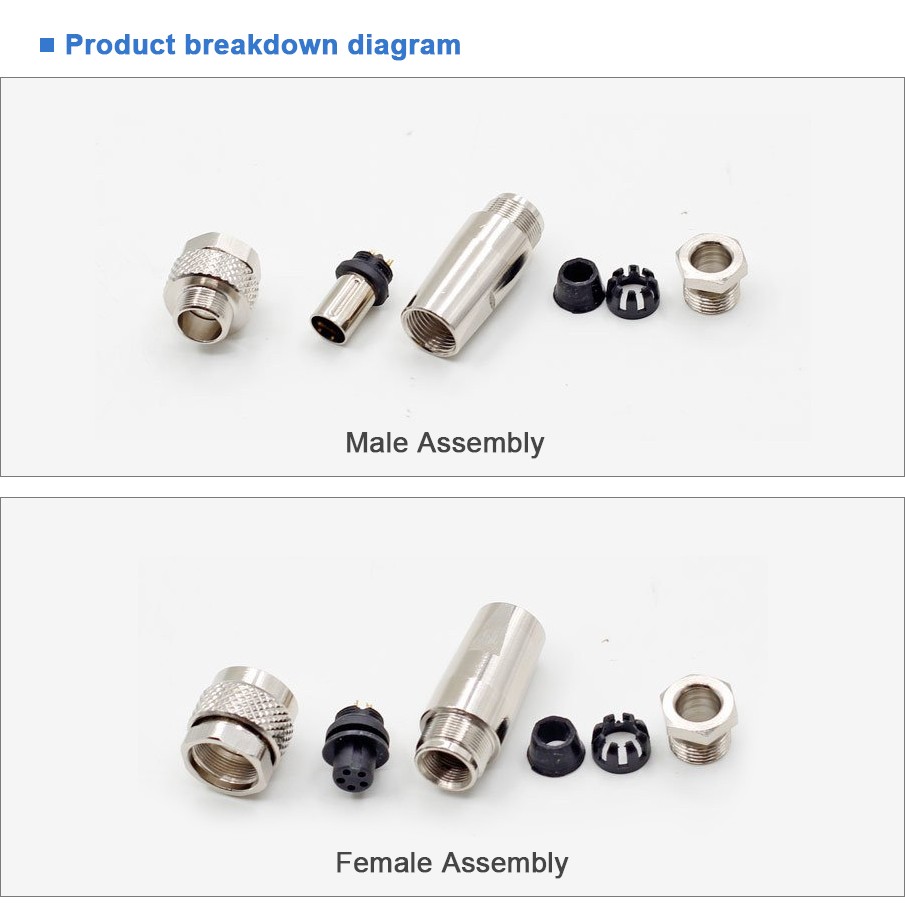

Brief Introduction:
M9 is a miniaturized connector with good waterproof performance can reach to IP67 or IP68, various pin contact optional:2,3,4,5,6,7 and 8pin. The products are mainly used in the fields such as sensors where the volume is small.
• Screw fastening thread M9
• Pre-molded with cables or soldered with single wires for immediate use
• Panel mount receptacles: rear/front mount
• Solder/PCB connection
• Customer specific assemblies and single wire lengths available
• Passed CE,Rohs certifications
General Information:
|
Number of contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Rated voltage |
125V |
125V |
125V |
125V |
125V |
125V |
125V |
|
Rated current |
4A |
4A |
3A |
3A |
1A |
1A |
1A |
|
Cable size |
24 AWG |
24 AWG |
24 AWG |
24 AWG |
26 AWG |
26 AWG |
26 AWG |
|
Contact Termination |
Screw |
||||||
|
Shielding |
Available |
||||||
|
Operating temperature |
-40℃ ~ +85℃ |
||||||
|
Degree of protection |
IP67/IP68 |
||||||
|
Mechanical operation |
>500 mating cycles |
||||||
|
Contact resistance |
≤3 MΩ |
||||||
|
Materials |
|||||||
|
Pin contact material |
CuSn |
||||||
|
Contact plating |
Au (gold plating) |
||||||
|
Shell material |
Brass nickel-plated |
||||||
|
Sealing material |
Epoxy resin/rubber |
||||||
