Product Description:

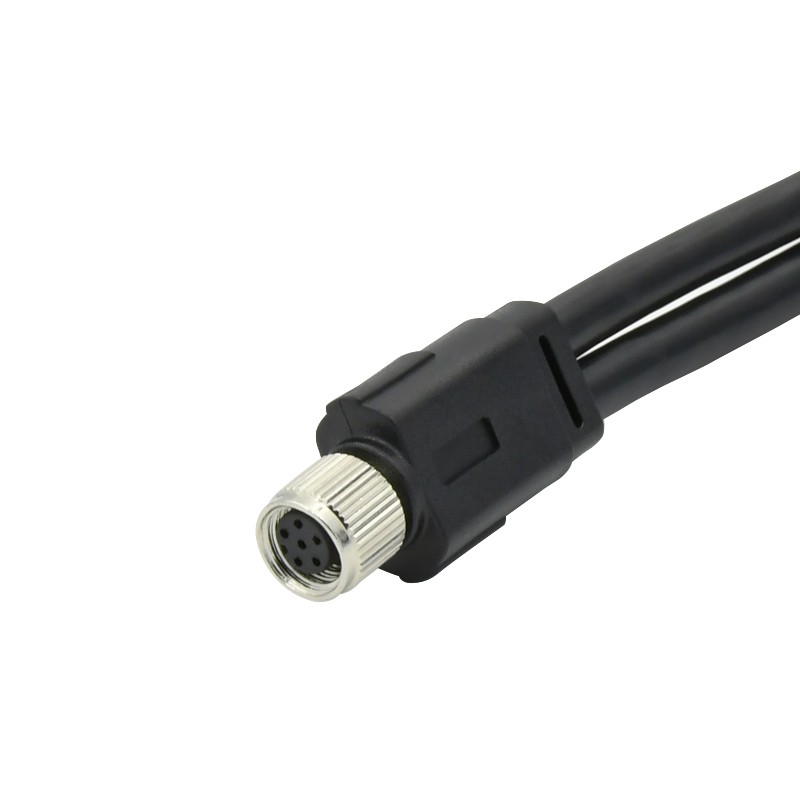

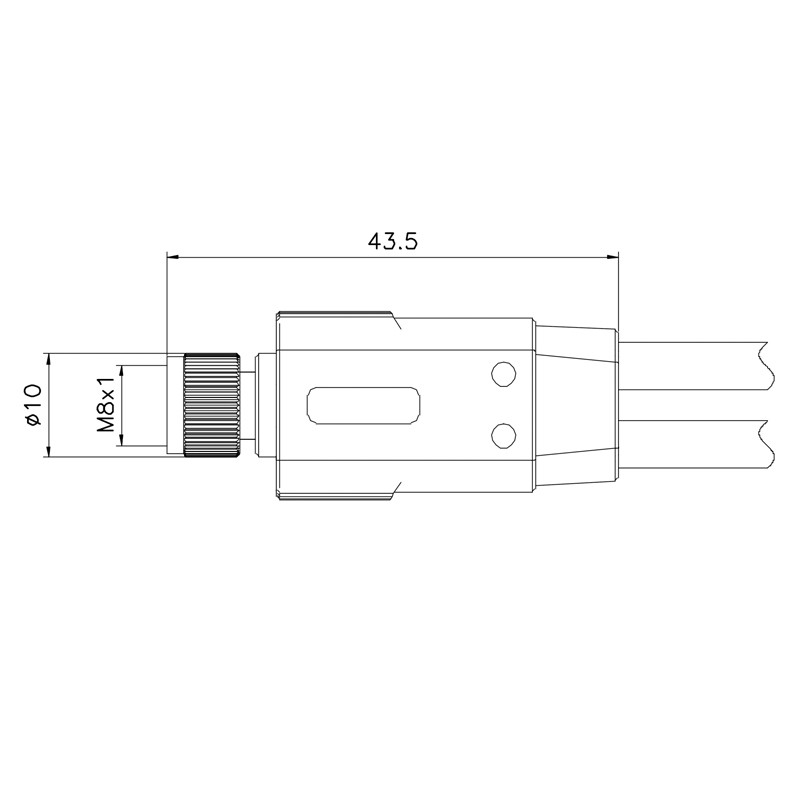

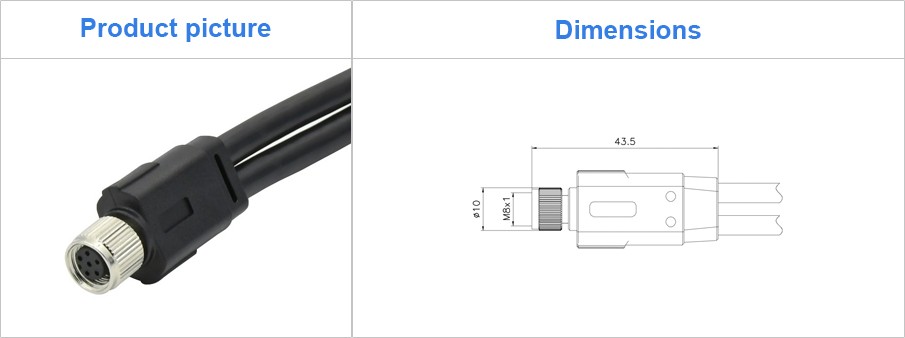

Connector series: M8 Y cable splitter
Gender: Male/Female
Coding: A,B,D
Orientation type:Straight
Part No.: M8-Y-x-FS-Pin No.-Length-xx (x-coded, xx-cable material)
Download:
Brief Introduction:
M8 metric threaded connector is one of the most commonly used connectors in the field of factory automation, which is mainly developed and designed for sensors with 8mm connection diameter in many areas. The M8 connector is exquisitely designed, which is convenient for installation and application of equipment with limited space, and the connection is stable and reliable. The product has anti-vibration loosening and anti-rotation design after installation or mating.
• M8*1 thread locking mechanism, anti-vibration locking design
• 3pin, 4pin, 5pin, 6pin, 8pin available
• A, B coding optional
• The receptacle counter part with PCB contacts or Solder type panel mount connectors
• Meets IP67/IP68 waterproof requirements
General Information:
|
Code |
A |
A |
A |
A |
B |
D |
|
Number of contacts |
3 pin |
4 pin |
6 pin |
8 pin |
5 pin |
4 pin |
|
Rated voltage |
60V |
60V |
30V |
30V |
30V |
60V |
|
Rated current |
4A |
4A |
2A |
1.5A |
3A |
4A |
|
Cable size in mm2 |
0.25 |
0.25 |
0.14 |
0.14 |
0.25 |
0.25 |
|
Contact Termination |
Solder |
|||||
|
Shielding |
Unavailable |
|||||
|
Operating temperature |
-25℃ ~ +85℃ |
|||||
|
Degree of protection |
IP67/IP68 in locked condition |
|||||
|
Mechanical operation |
>500 mating cycles |
|||||
|
Contact resistance |
≤10 MΩ |
|||||
|
Materials |
||||||
|
Pin contact material |
Cuzn |
|||||
|
Contact plating |
Au (gold plating) |
|||||
|
Connector insert |
TPU |
|||||
|
Cable jacket |
PVC/PUR |
|||||
