Product Description:

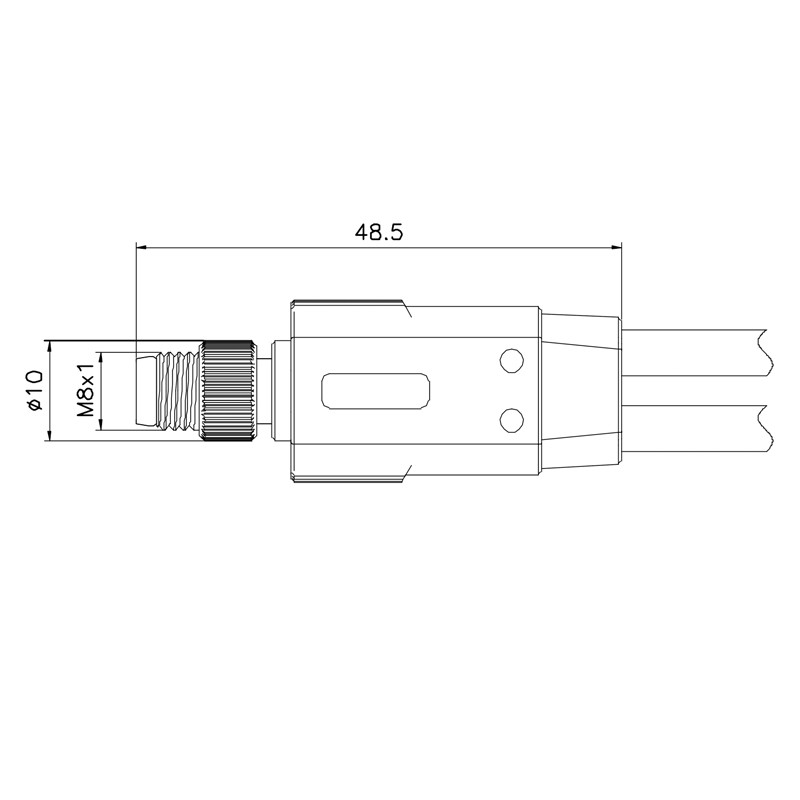

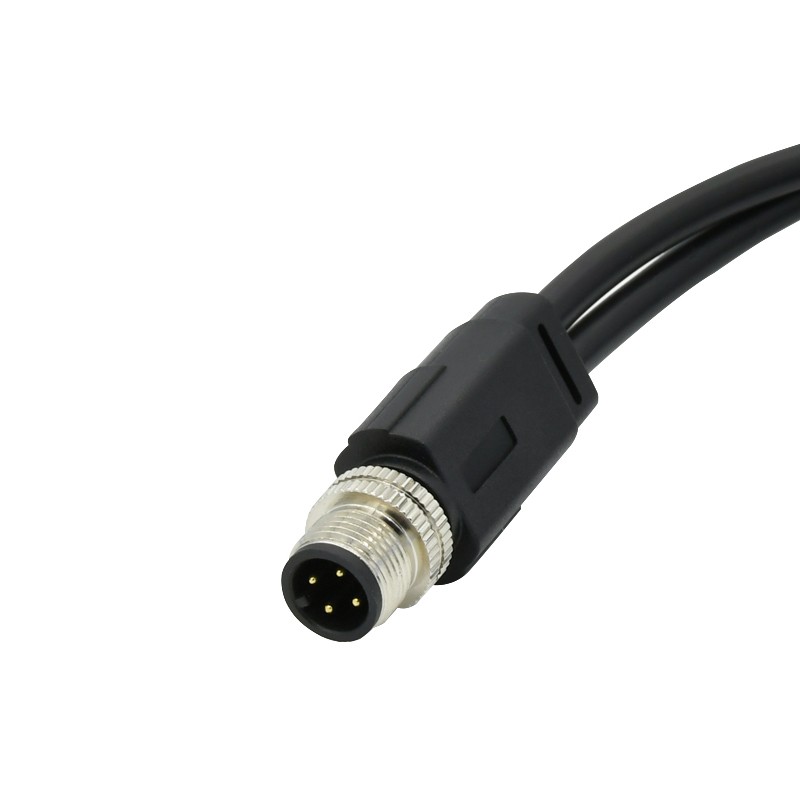

Connector series: M8 Y cable splitter
Gender: Male/Female
Coding: A,B,D
Orientation type:Straight
Part No.: M8-Y-x-MS-xx-xxx-xxxx
(x-coded,xx-pin no,xxx-cable length,xxxx-cable material)
Download:
Electrical Characteristics:
|
Code |
A |
A |
D |
B |
A |
A |
|
Number of contacts |
3 pin |
4 pin |
4 pin |
5 pin |
6 pin |
8 pin |
|
Rated voltage |
60V |
60V |
60V |
30V |
30V |
30V |
|
Rated current |
4A |
4A |
4A |
3A |
2A |
1.5A |
|
Cable size in mm2 |
0.25mm2 |
0.14mm2 |
||||
General Information:
|
Contact Termination |
Solder |
|
Shielding |
Unavailable |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 in locked condition |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤10 MΩ |
|
Pin contact material |
Cuzn |
|
Contact plating |
Au (gold plating) |
| Connector insert | TPU |
|
Cable jacket |
PVC/PUR |
