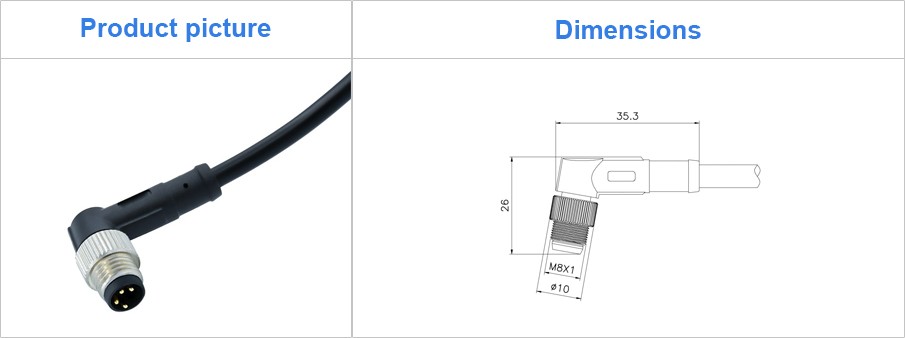

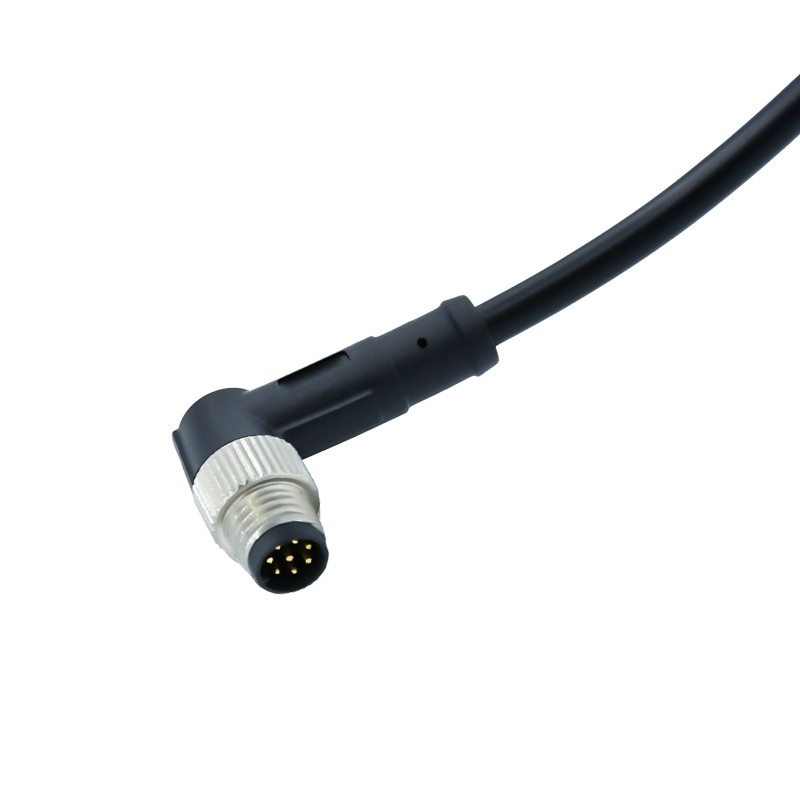

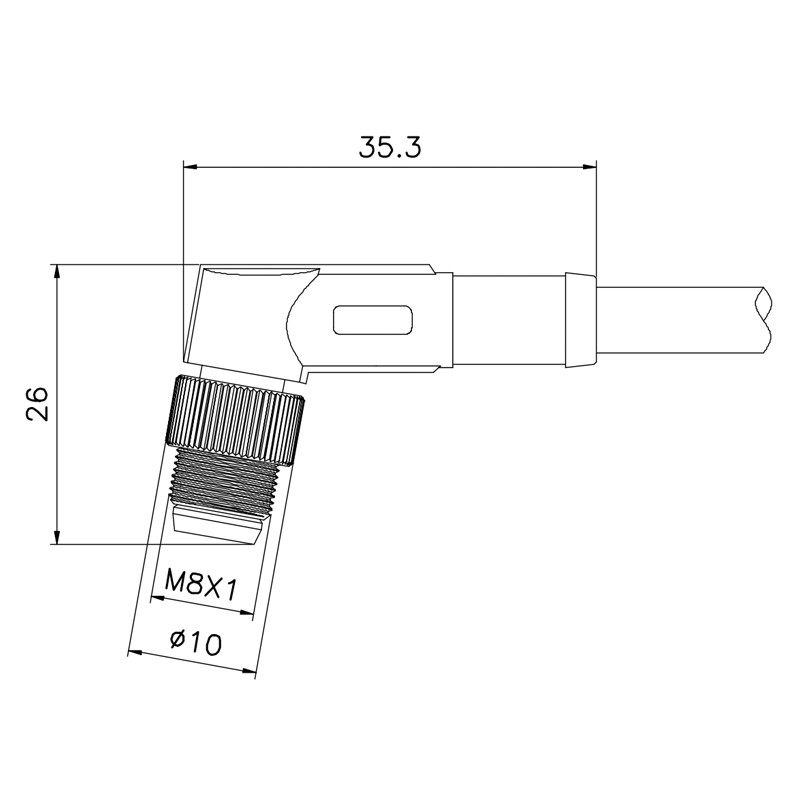

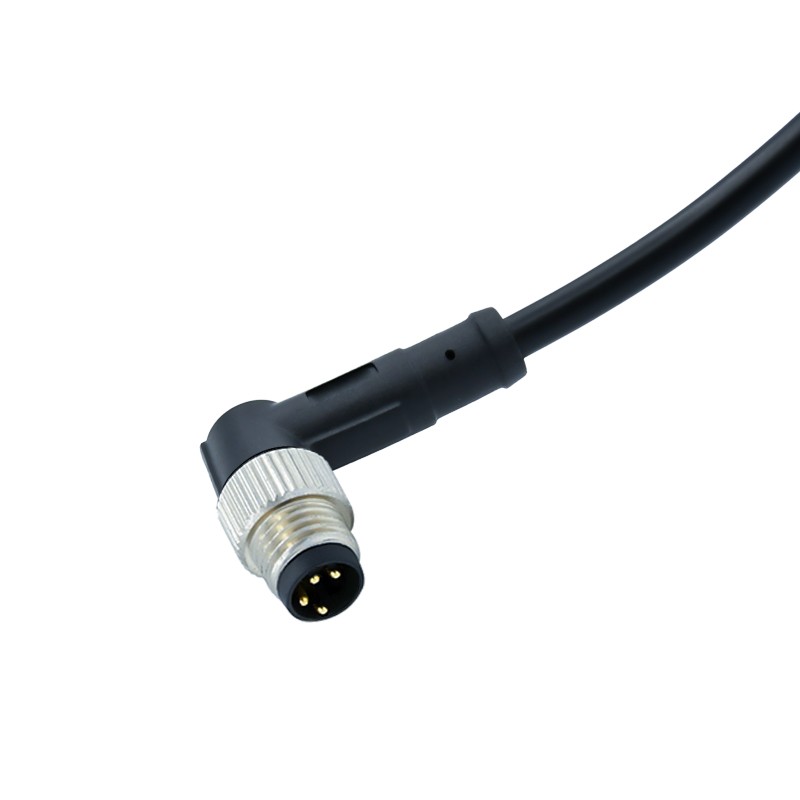

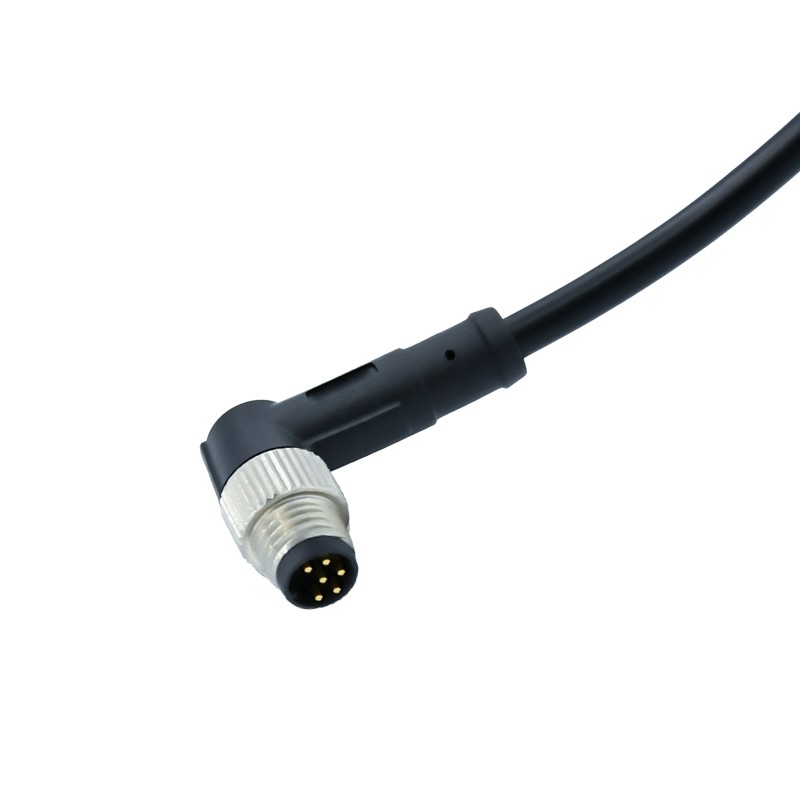

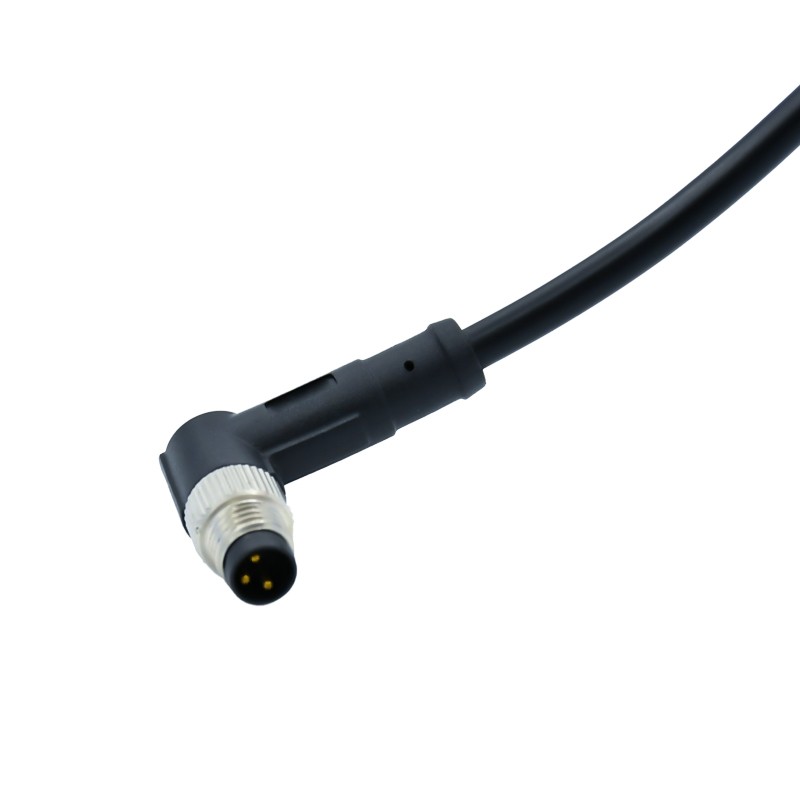

Product Description:
Connector series: M8 cable
Gender: Male
Coding: A,B,D
Orientation type: Right Angle
Part No.: M8-x-MR-Pin No-Length-xx (x:coded,xx: cable materials)
Download:
RG081006.pdf
Brief Introduction:
M8 metric threaded connector is one of the most commonly used connectors in the field of factory automation, which is mainly developed and designed for sensors with 8mm connection diameter in many areas. The M8 connector is exquisitely designed, which is convenient for installation and application of equipment with limited space, and the connection is stable and reliable. The product has anti-vibration loosening and anti-rotation design after installation or mating.
• M8*1 thread locking mechanism, anti-vibration locking design
• 3pin, 4pin, 5pin, 6pin, 8pin available
• A, B coding optional
• Custom cable specification and lengths, molded with PVC or PUR cable
• Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cable available
• Meets IP67/IP68 waterproof requirements
General Information:
|
Number of contacts |
3 pin |
4 pin |
6 pin |
8 pin |
|
Rated voltage |
60V |
60V |
30V |
30V |
|
Rated current |
4A |
4A |
2A |
1.5A |
|
Wire guage in mm2 |
0.25mm2 |
0.25mm2 |
0.14mm2 |
0.14mm2 |
|
Wire guage in AWG |
24AWG |
24AWG |
26AWG |
26AWG |
|
Termination |
Moulded on cable |
|||
|
Shielding |
Available |
|||
|
Operating temperature |
-25℃ ~ +85℃ |
|||
|
Degree of protection |
IP67/IP68 in locked condition |
|||
|
Mechanical operation |
>500 mating cycles |
|||
|
Contact resistance |
≤10 MΩ |
|||
|
Materials |
||||
|
Pin contact |
Cuzn |
|||
|
Contact plating |
Au (gold plating) |
|||
|
Cable jacket |
PVC/PUR |
|||
|
Connector insert |
TPU |
|||
