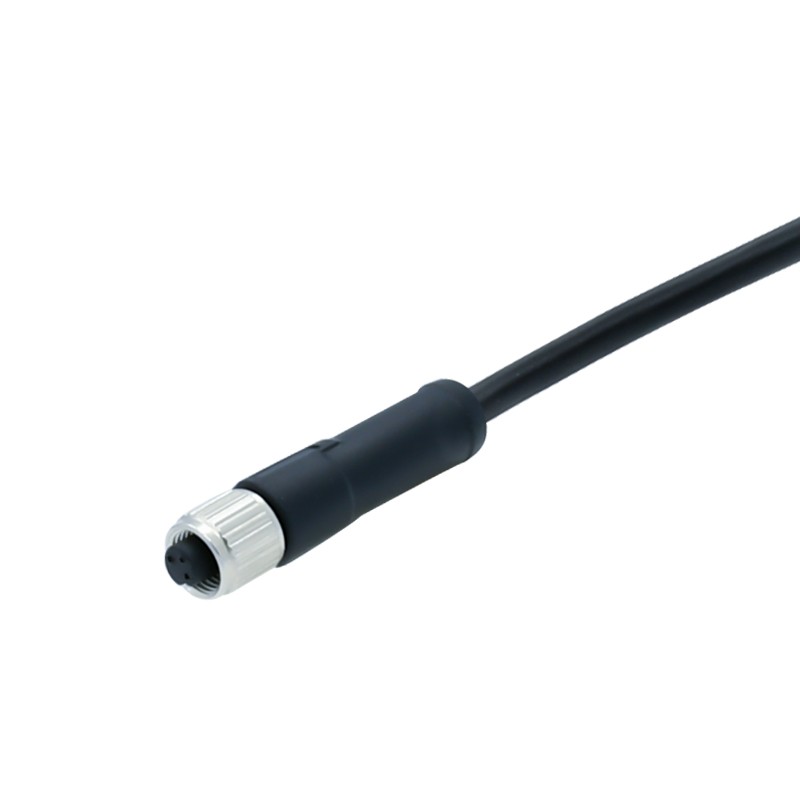

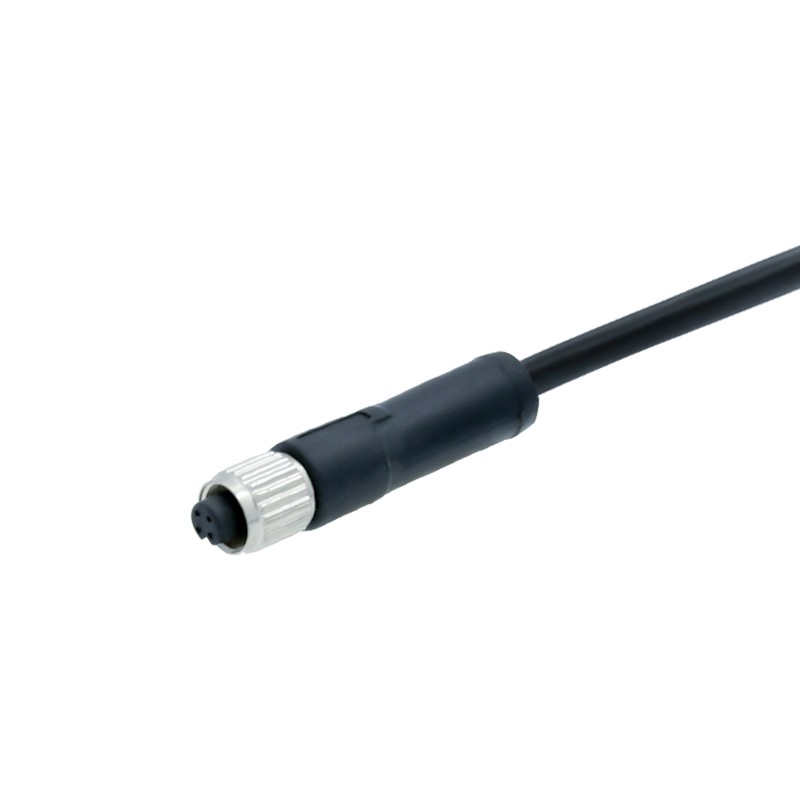

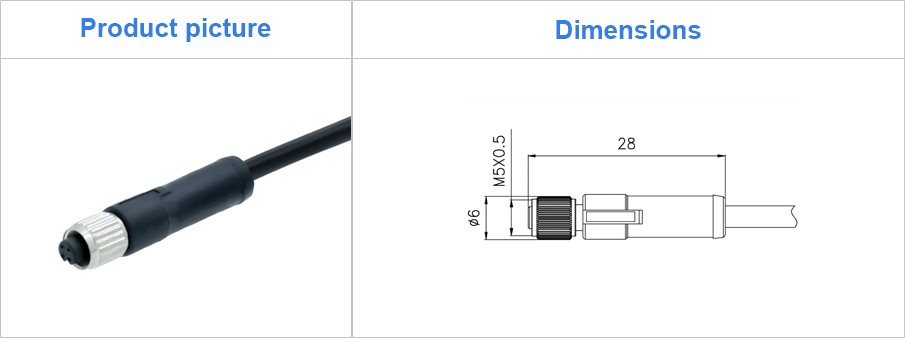

Product Description:
Connector series: M5 cable
Gender: Female
Coding: A
Orientation type: Straight
Part No.: RG051002
Download:
RG051002.pdf
Brief Introduction:
M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area. It is available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection class is IP67/IP68. The rated voltage is 60 V, the max current is 1 A.
• Cable plugs and panel receptacles are available

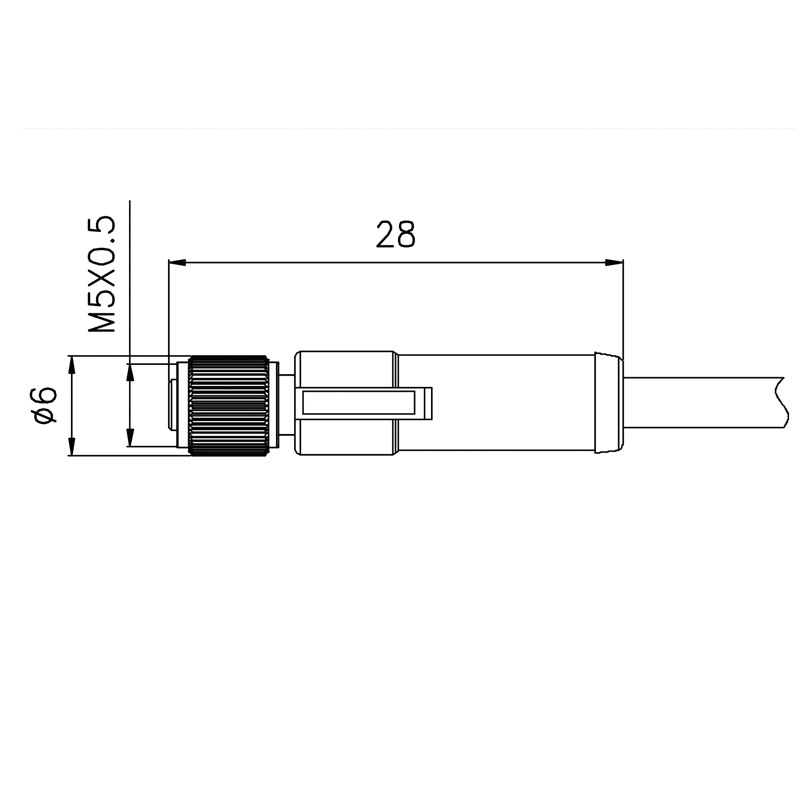

• Connector M5 x 0.5 with screw interlock
• TPU over molded, IP67 protection degree
• 3 and 4 -pole are optional
• PVC/PUR cable material,the length can be customized
General Information:
|
Number of contacts |
3 pin |
4 pin |
|
Rated voltage |
60V |
60V |
|
Rated current |
1A |
1A |
|
Wire guage in mm2 |
0.14mm2 |
0.14mm2 |
|
Wire guage in AWG |
26AWG |
26AWG |
|
Termination |
Moulded on cable |
|
|
Shielding |
Unavailable |
|
|
Operating temperature |
-25℃ ~ +85℃ |
|
|
Degree of protection |
IP67/IP68 in locked condition |
|
|
Mechanical operation |
>500 mating cycles |
|
|
Contact resistance |
≤10 MΩ |
|
|
Materials |
||
|
Pin contact |
Cuzn |
|
|
Contact plating |
Au (gold plating) |
|
|
Cable jacket |
PVC/PUR |
|
|
Coupling nut |
Brass with nickel plated |
|
