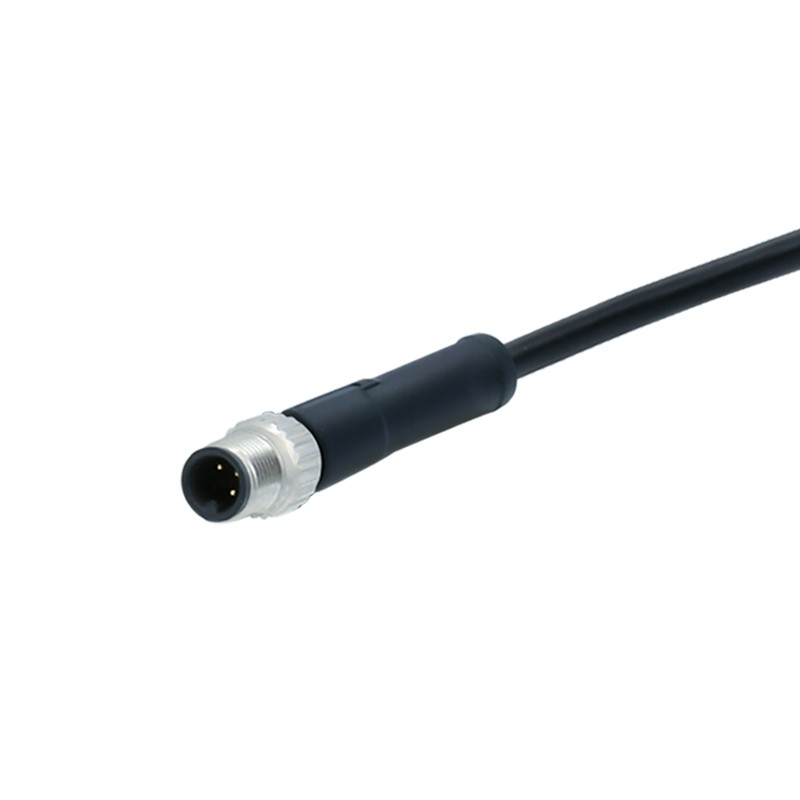

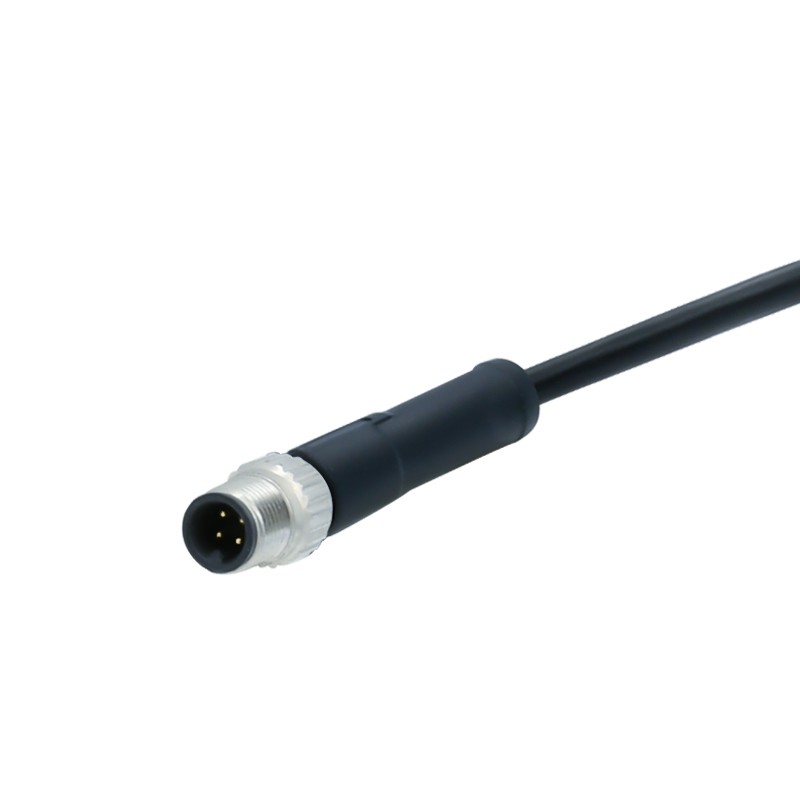

M5 Male Molded Cable Straight

Product Description:

Connector series: M5 cable

Gender: Male

Coding: A

Orientation type: Straight

Part No.: RG051000


Download:

RG051000.pdf

  • Specification

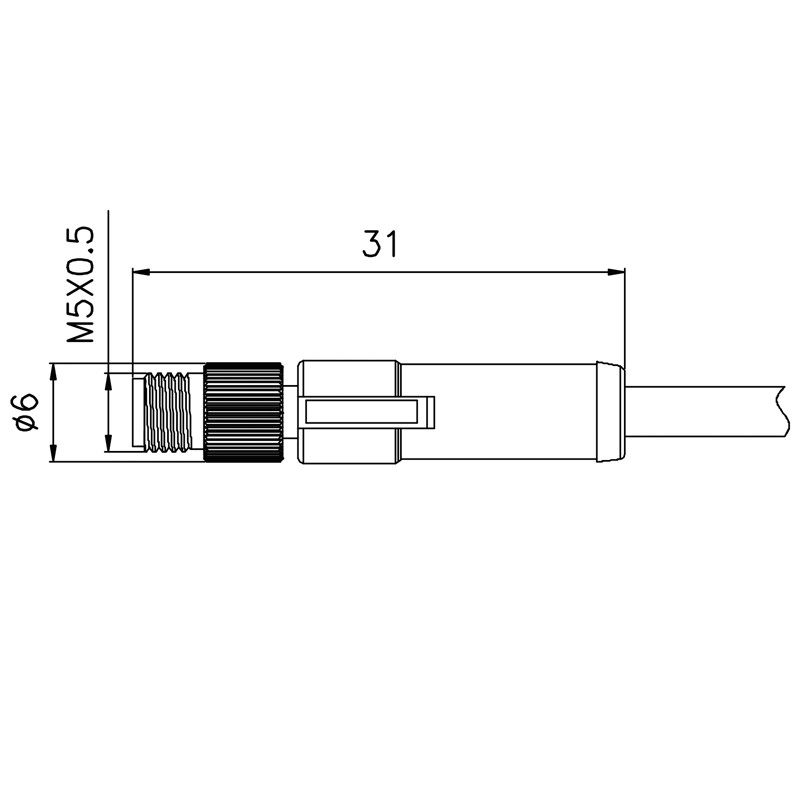

  • Drawing
  • Order method



Brief Introduction:

M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area. It is available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection class is IP67/IP68. The rated voltage is 60 V, the max current is 1 A.


• Cable plugs and panel receptacles are available

• Connector M5 x 0.5 with screw interlock

• TPU over molded, IP67 protection degree

• 3 and 4 -pole are optional

• PVC/PUR cable material,the length can be customized



General Information:

Number of contacts
3 pin
4 pin
Rated voltage
60V
60V
Rated current
1A
1A
Wire guage in mm2
0.14mm2
0.14mm2
Wire guage in AWG
26AWG
26AWG
Termination
Moulded on cable
Shielding
Unavailable
Operating temperature
-25℃ ~ +85℃
Degree of protection
IP67/IP68 in locked condition
Mechanical operation
>500 mating cycles
Contact resistance
≤10 MΩ
Materials
Pin contact
Cuzn
Contact plating
Au (gold plating)
Cable jacket
PVC/PUR
Coupling nut
Brass with nickel plated
