Brief Introduction:

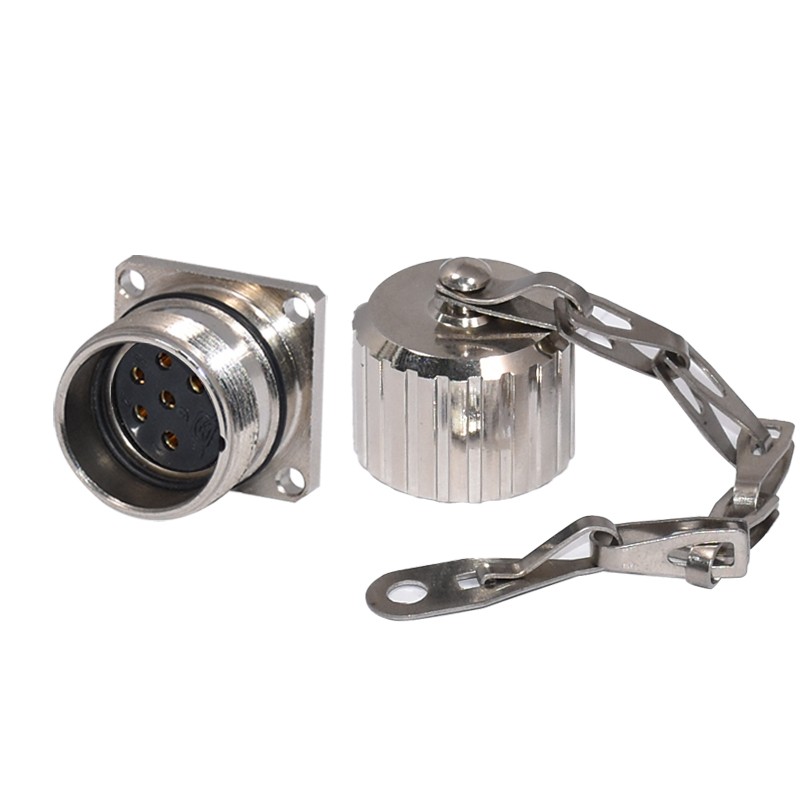

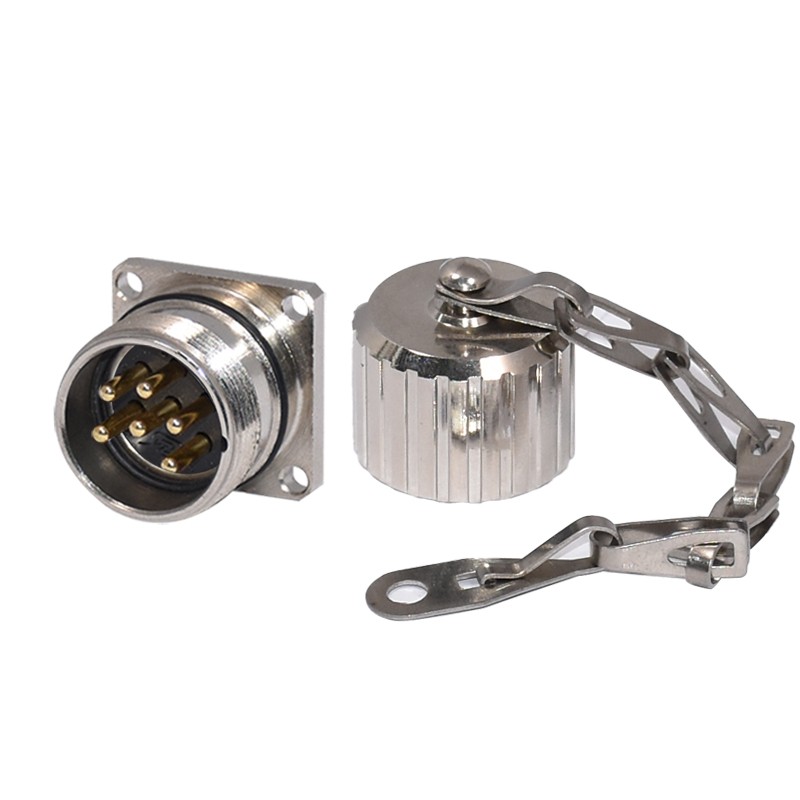

Circular M23 waterproof connector was specially developed for harsh operational environment; it ensures the operation stability under moisture, vibration and temperature change,which has over molded cable, assembly and panel type, designed for primarily transferring both power and analog or digital signals. The possible pin-outs for the M23 power are 6,8 poles while the signal pin-outs include 6, 7, 9, 12, 16, 17, and 19 poles.

• M23 circular connector according to IEC 61076-2-101

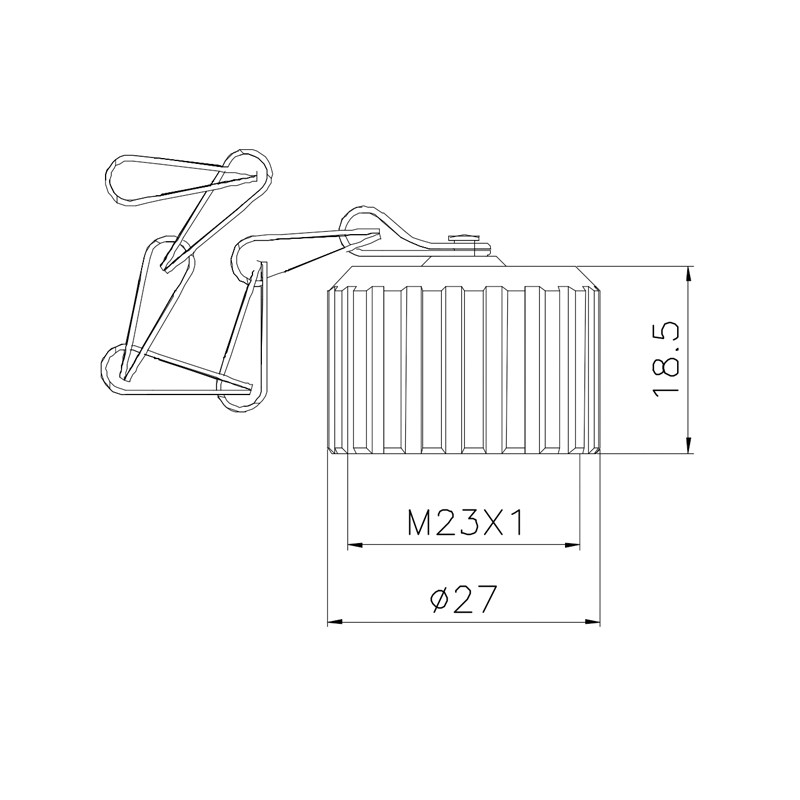

• M23 circular connector with M23*1.0 screw locking

• Three different contact options including crimp, solder, and dip solder

• Housings including straight, right angle and panel mounts

• Waterproof rating is IP67, protected from dust and water during immersion, resistant to oils and chemical

• 6,9,12,16,19 pin optional for both power and signal
