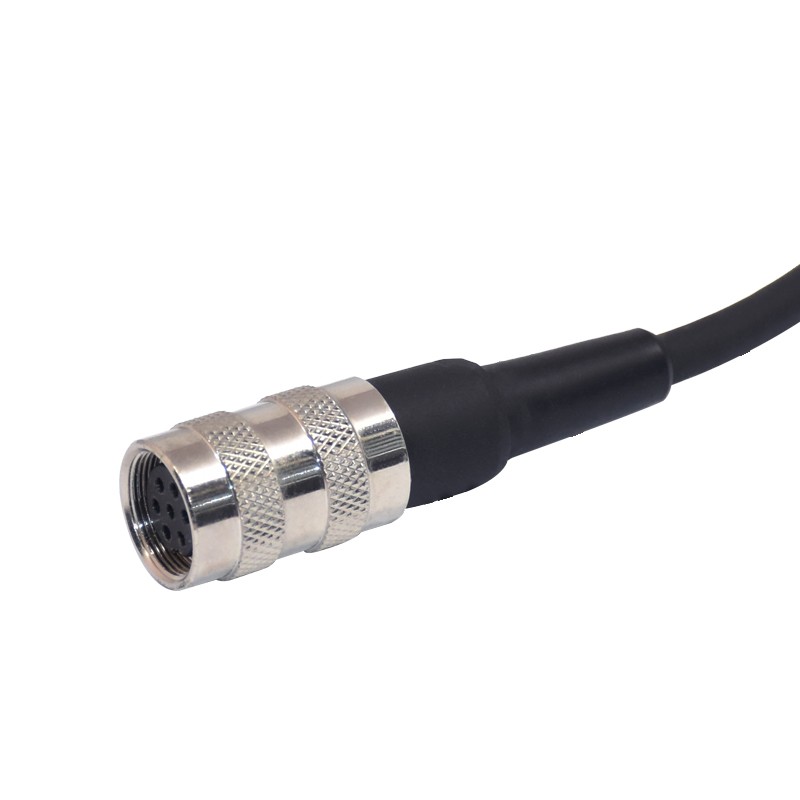

M16 Female Molded Cable, Straight

Product Description:

Connector series: M16 Cable

Gender: Female

Mounting type: Straight

Part No.: RG161003

Download:

  • Specification

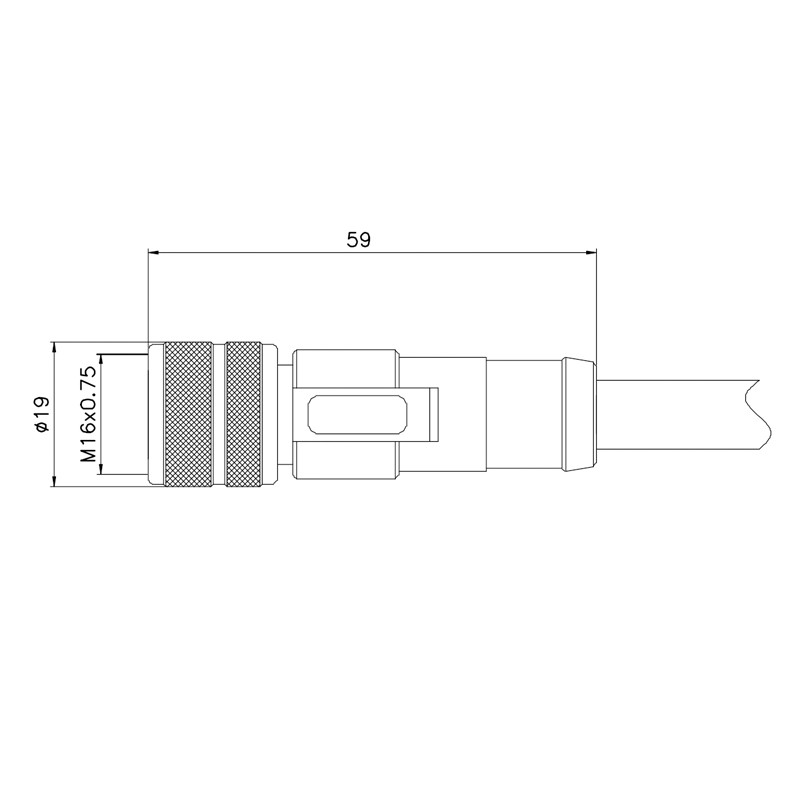

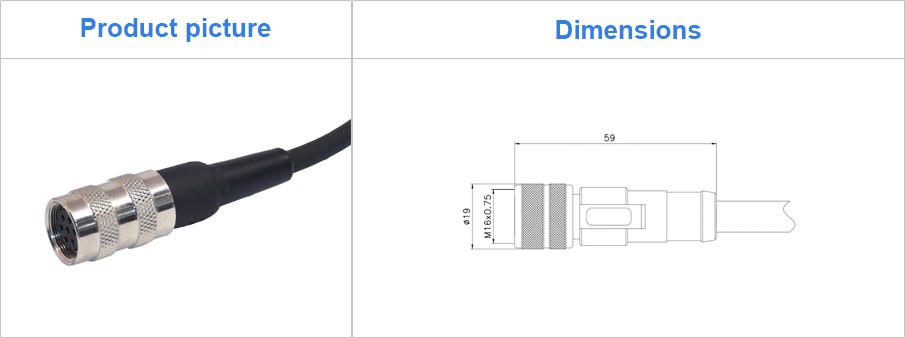

  • Drawing
  • Order method



Brief Introduction:

M16 Connectors is the circular connectors with threaded joint M16 designed according to IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, also have good shielding effectiveness when mated and locked. M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.


 Connector with screw locking according to DIN EN 61076-2-106

• Excellent EMC shielding (versions with  shielding rings 360°)

• Panel mount types for front or rear panel mounting

• With dip solder contacts of various contact lengths

• 3 termination possibilities: solder, crimp, screw clamp terminations

• UV Resistant, Hydrolysis Resistant, Oil resistant



General Information:

Number of contacts
2
3


6


12
14
16
19 24
Rated voltage
250V
250V
250V
125V
60V
60V
60V
Rated current
7A
6A
5A
5A
5A
3A
1A
Wire gauge
max 0.75mm2
max 0.25mm2
Cable AWG
28AWG-16AWG/Custom
Contact Termination
Solder
Shielding
Unavailable
Operating temperature
-20℃ ~ +80℃
Degree of protection
IP67/IP68
Mechanical operation
>500 mating cycles
Contact resistance
≤5 MΩ
Material
Pin contact material
Cuzn
Contact plating
Au (gold plating)
Housing
Zinc diecasting nickel plated
Contact body
PBT
