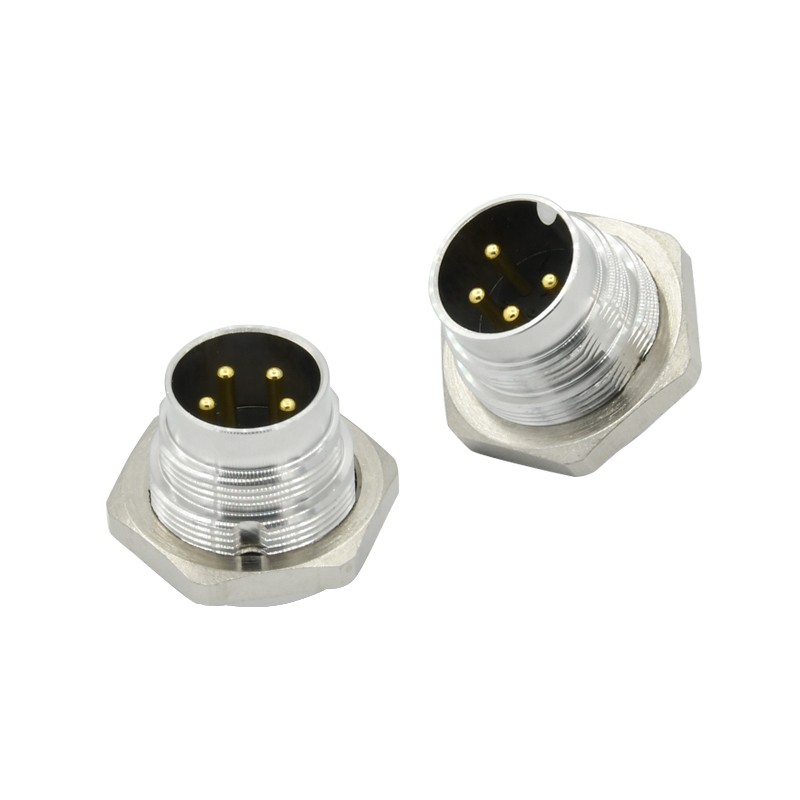

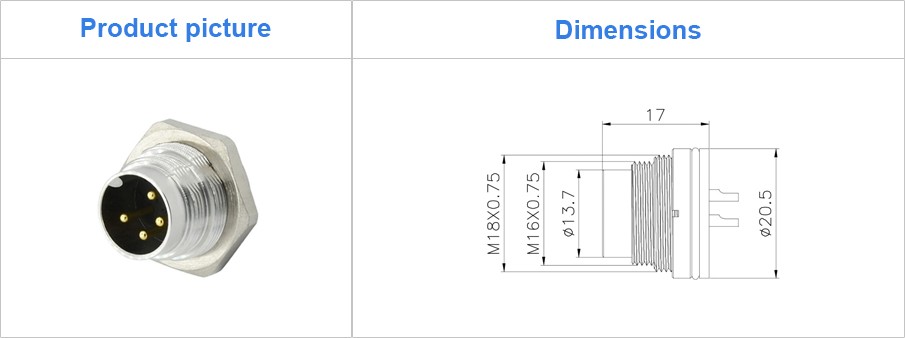

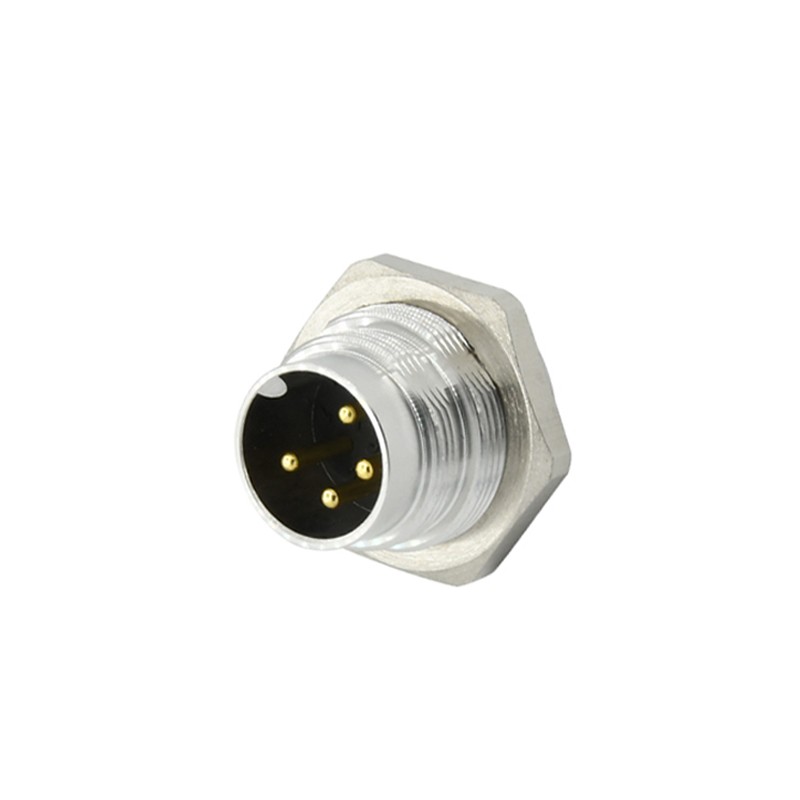

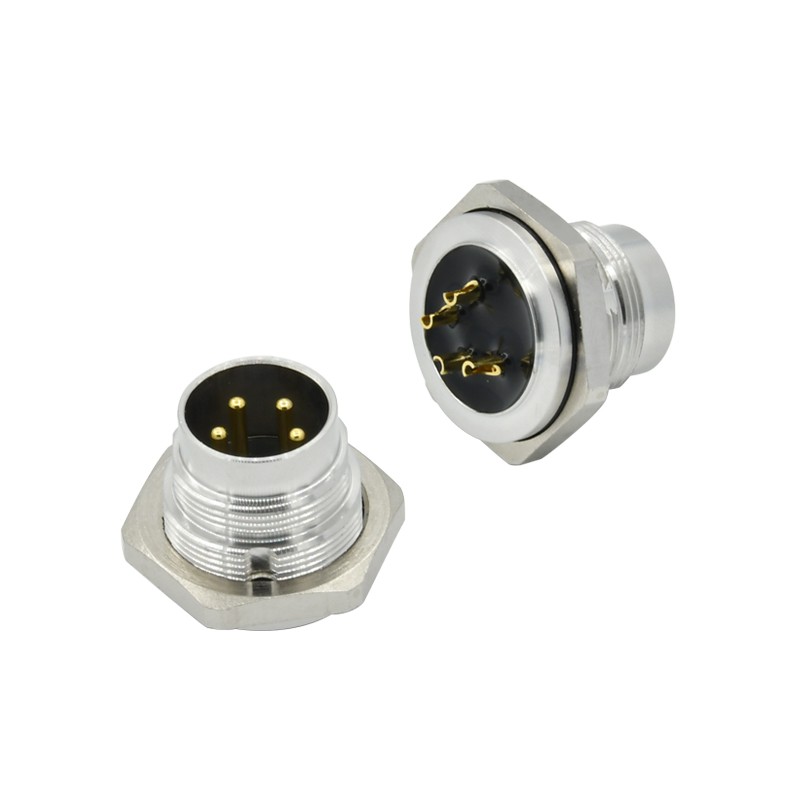

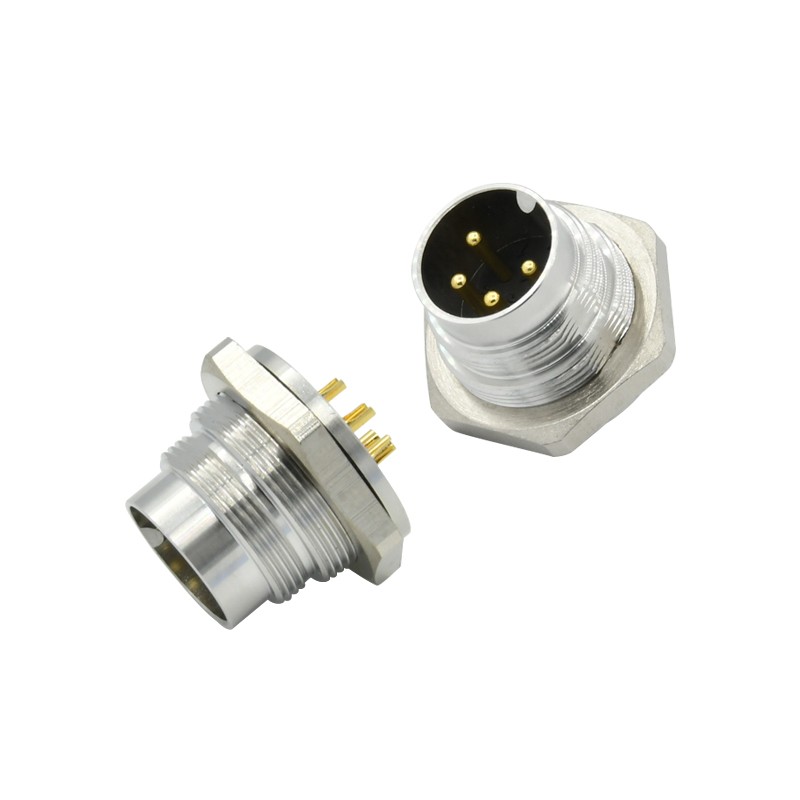

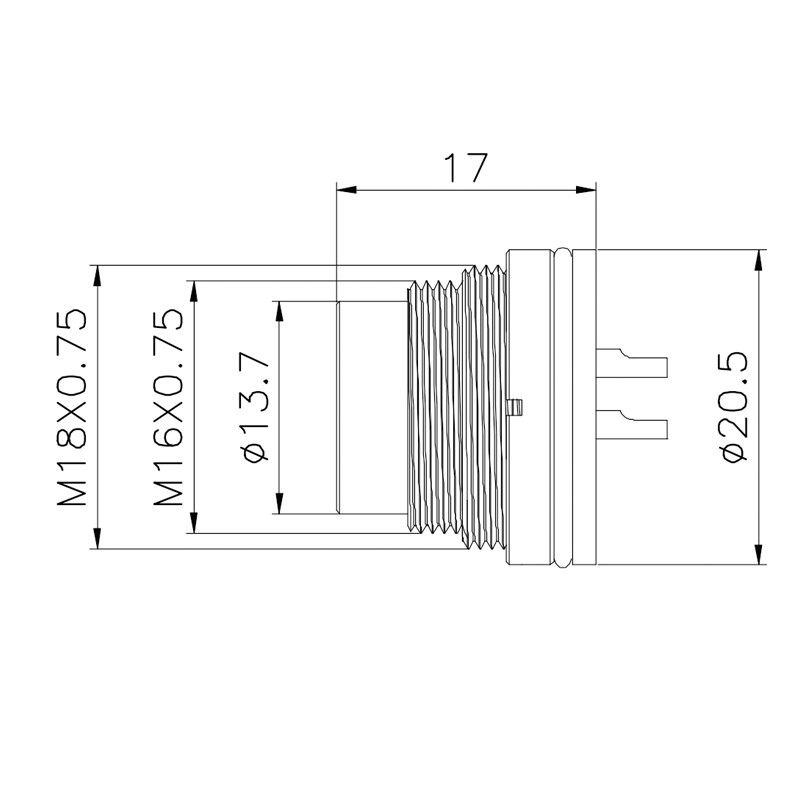

Product Description:
Connector series: M16 Panel Mount
Gender: Male
Mounting type: Front fastened
Model No.: RG163001
Download:
Brief Introduction:
M16 Connectors is the circular connectors with threaded joint M16 designed according to IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, also have good shielding effectiveness when mated and locked. M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.
• Connector with screw locking according to DIN EN 61076-2-106
• Excellent EMC shielding (versions with shielding rings 360°)
• Panel mount types for front or rear panel mounting
• With dip solder contacts of various contact lengths
• 3 termination possibilities: solder, crimp, screw clamp terminations
• UV Resistant, Hydrolysis Resistant, Oil resistant
General Information:

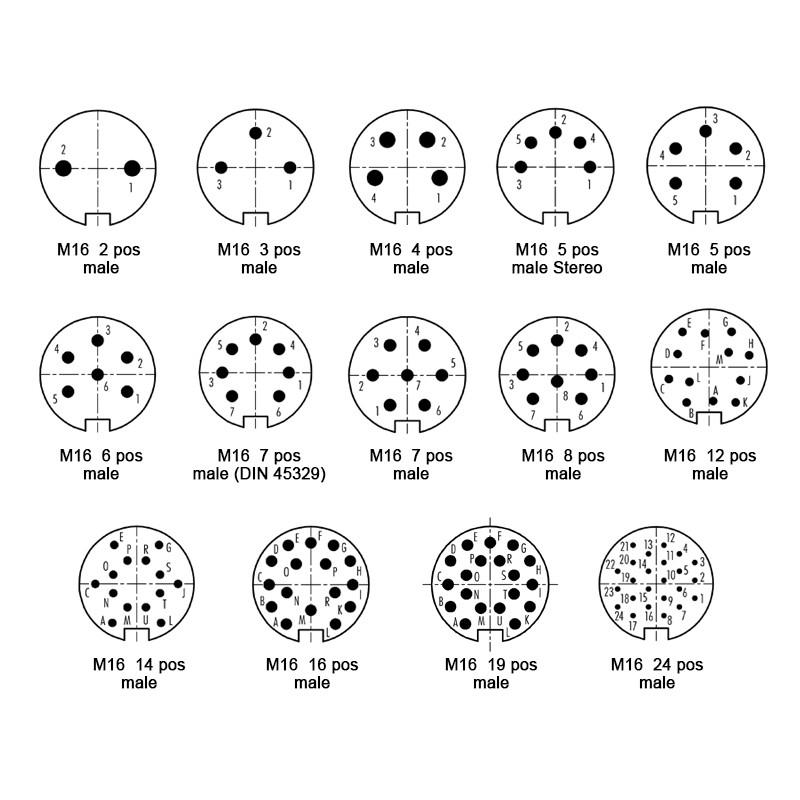

Number of contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
12 |
14 |
16 |
19 |
24 |
Rated voltage |
250V |
250V |
250V |
125V |
60V |
60V |
60V |
|||||
Rated current |
7A |
6A |
5A |
5A |
5A |
3A |
1A |
|||||
Contact Termination |
Solder |
|||||||||||
Shielding |
Unavailable |
|||||||||||
Operating temperature |
-20℃ ~ +80℃ |
|||||||||||
Degree of protection |
IP67/IP68 |
|||||||||||
Mechanical operation |
>500 mating cycles |
|||||||||||
Contact resistance |
≤5 MΩ |
|||||||||||
Material |
||||||||||||
Pin contact material |
Cuzn |
|||||||||||
Contact plating |
Au (gold plating) |
|||||||||||
Material of housing |
Zinc diecasting nickel plated |
