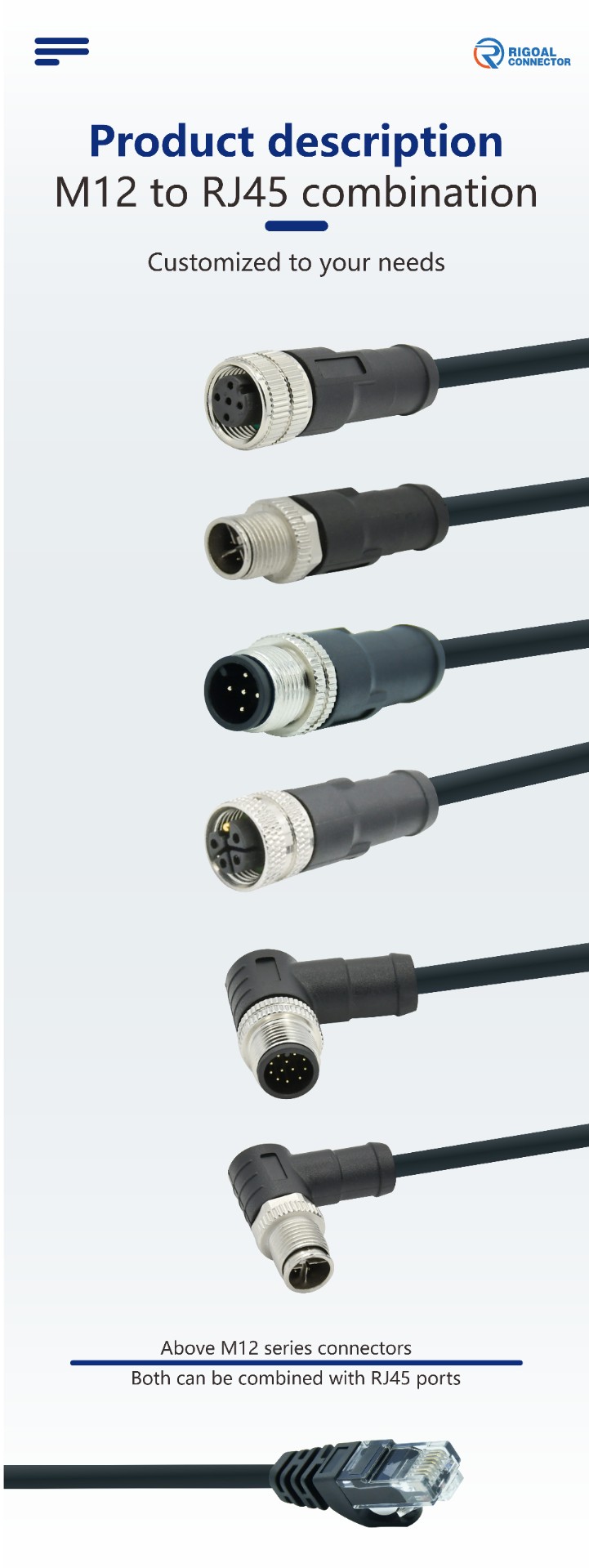

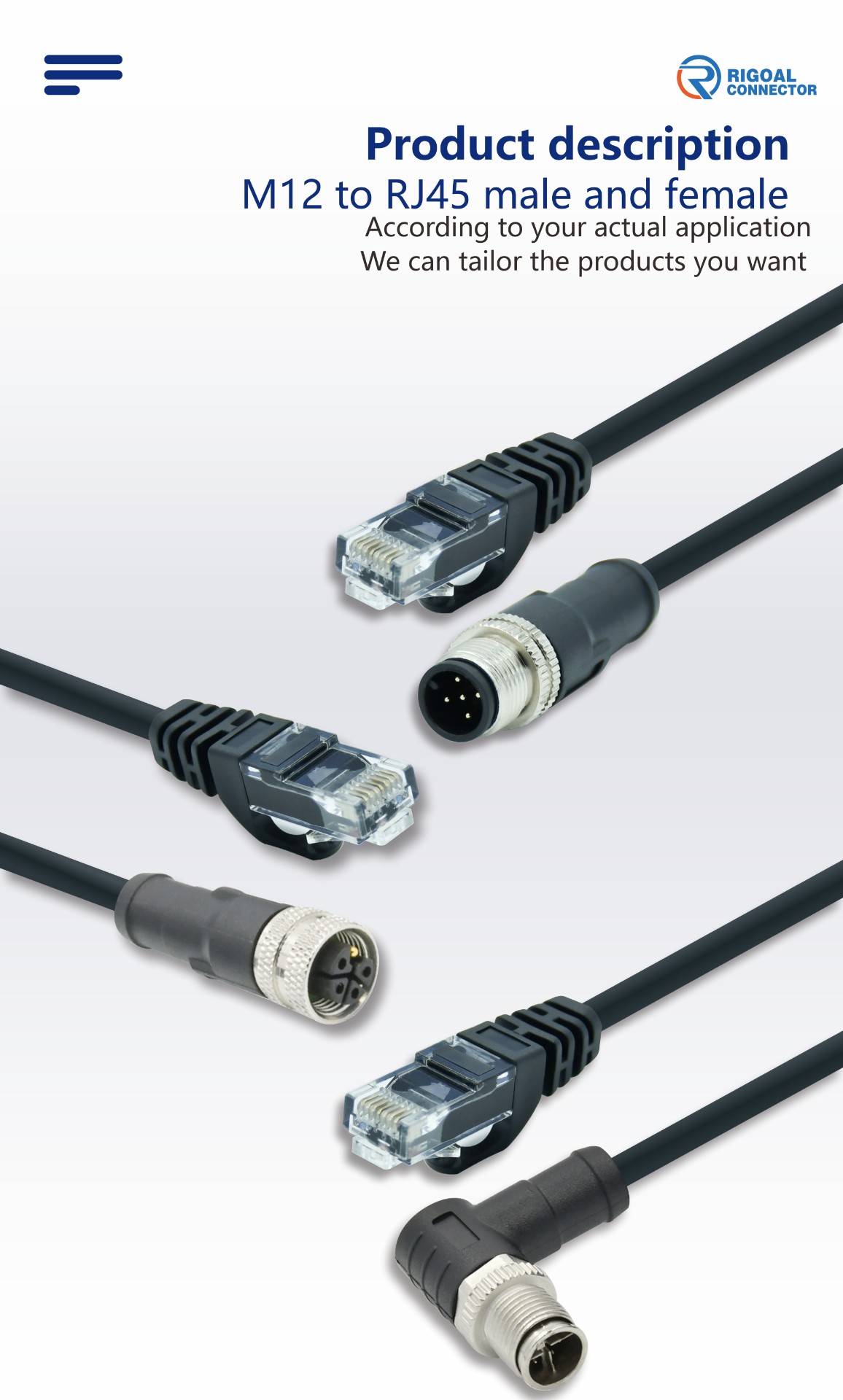

Product Description:

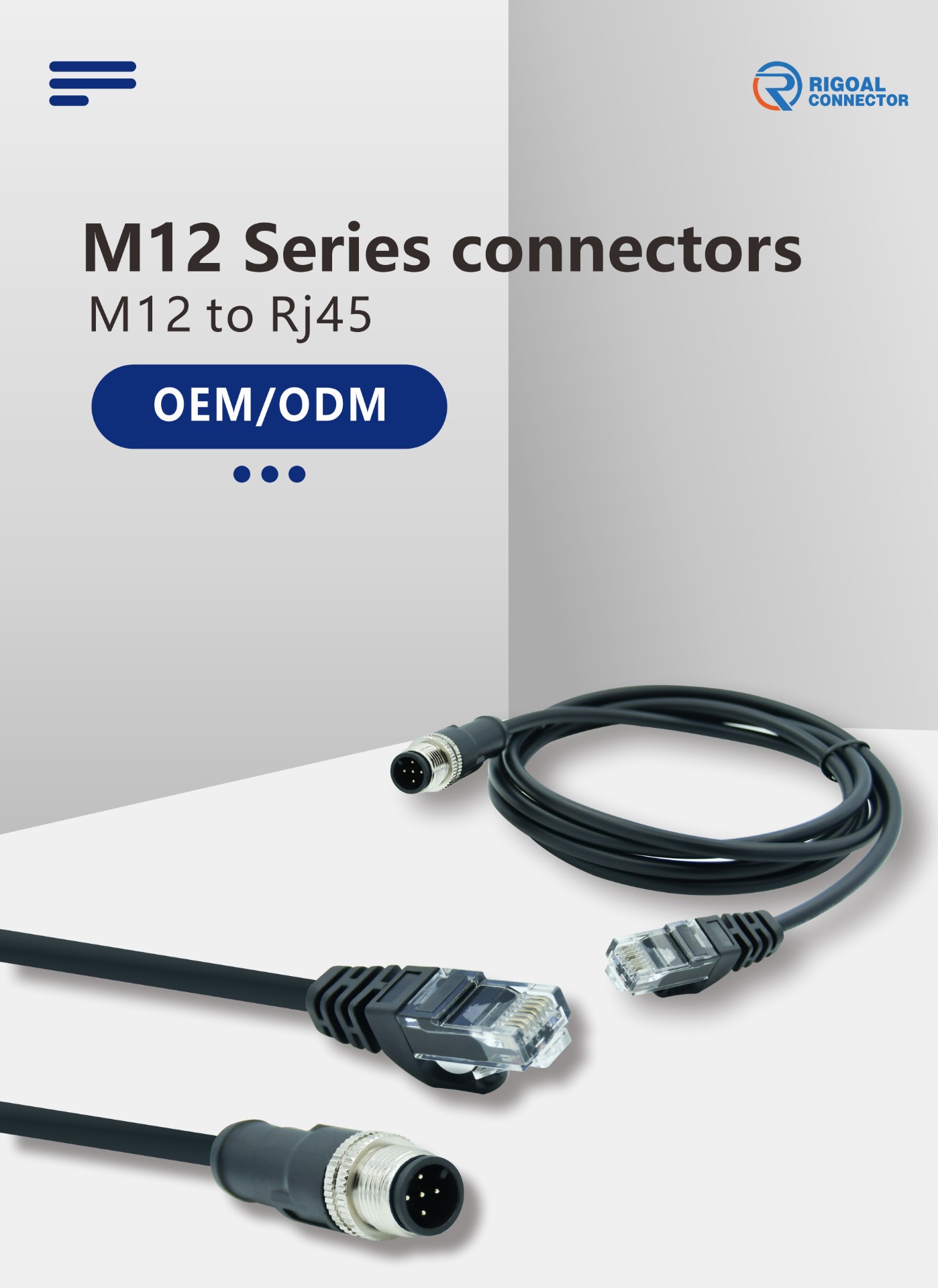

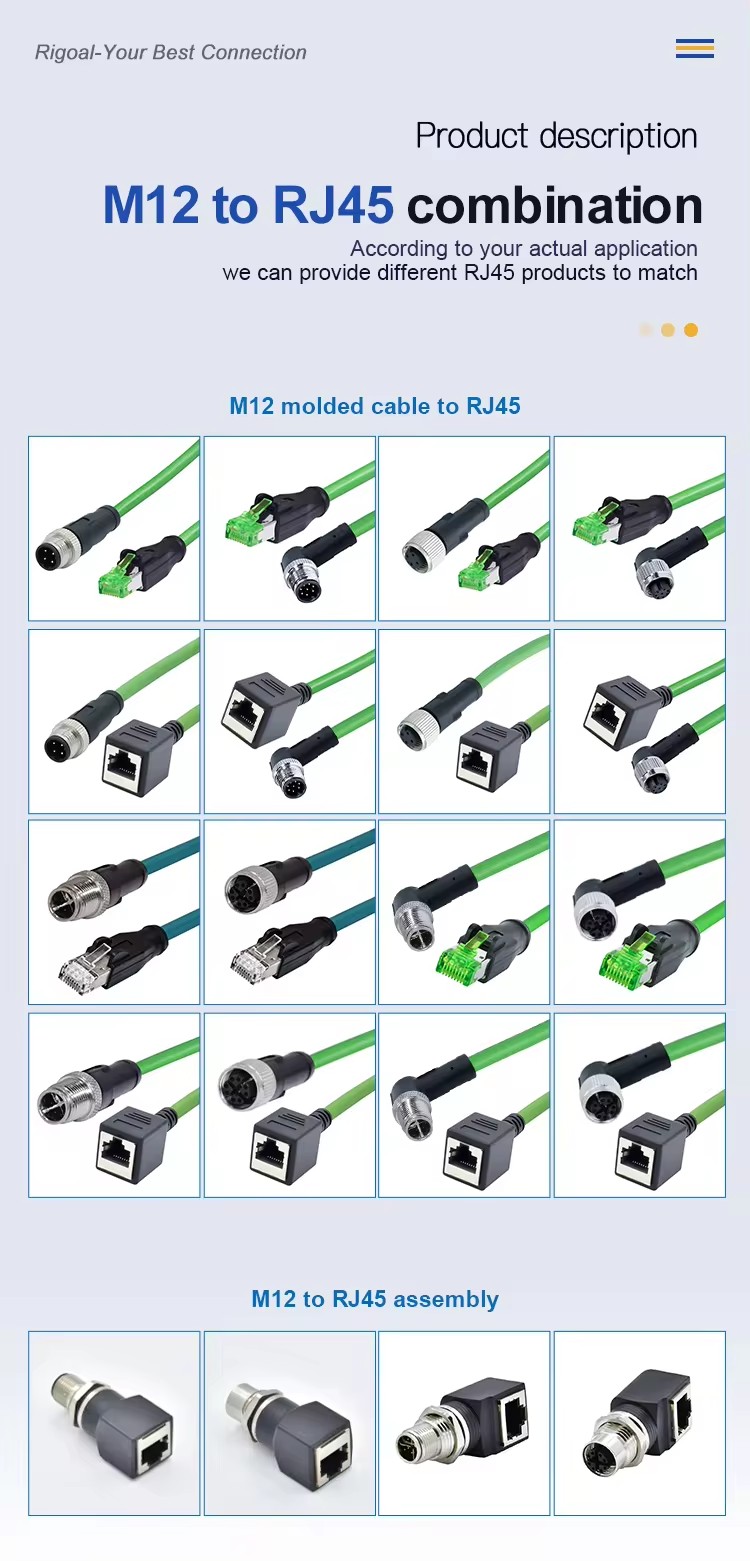

Connector series: M12 to RJ45 Cable
Gender: Male/Female
Coding: D
Mounting type: Angled

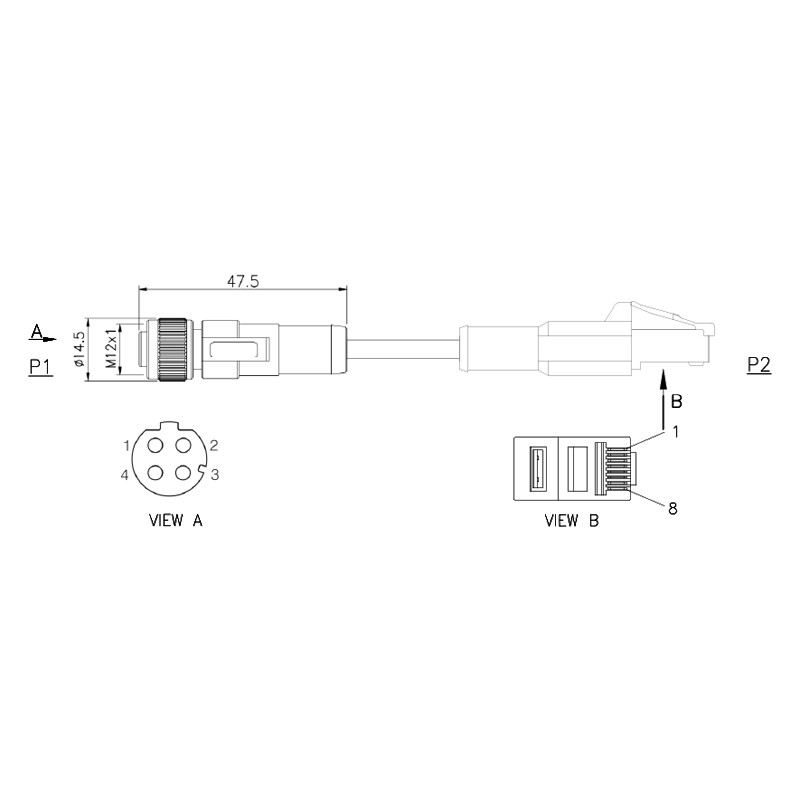

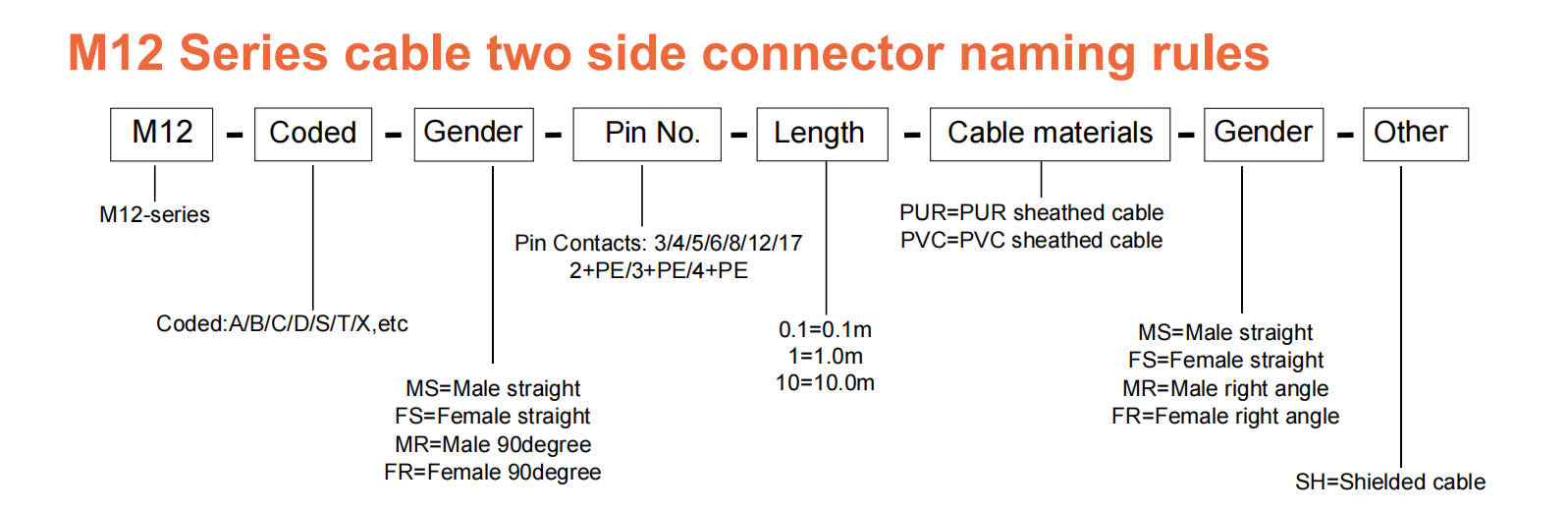

Part No.: M12D4FS-RJ45M-(cable length)
Download:
M12D4FS-RJ45M-.pdf
General Information:
|
Coding |
D | |
|
Number of contacts |
4 | |
|
Type |
Molded |
|
|
Rated voltage |
250V |
|
|
Rated current |
4A |
|
| Connector locking system | Solder | |
|
Operating temperature |
-25℃ ~ +85℃ |
|
|
Degree of protection |
IP67/IP68 |
|
|
Mechanical operation |
>500 mating cycles |
|
|
Contact resistance |
≤10 MΩ |
|
|
Material of connector |
CuZn,TPU |
|
|
Contact plating |
AU (gold plating) |
|
| Cable materials | Cat 5e/cat 6e/custom request | |
