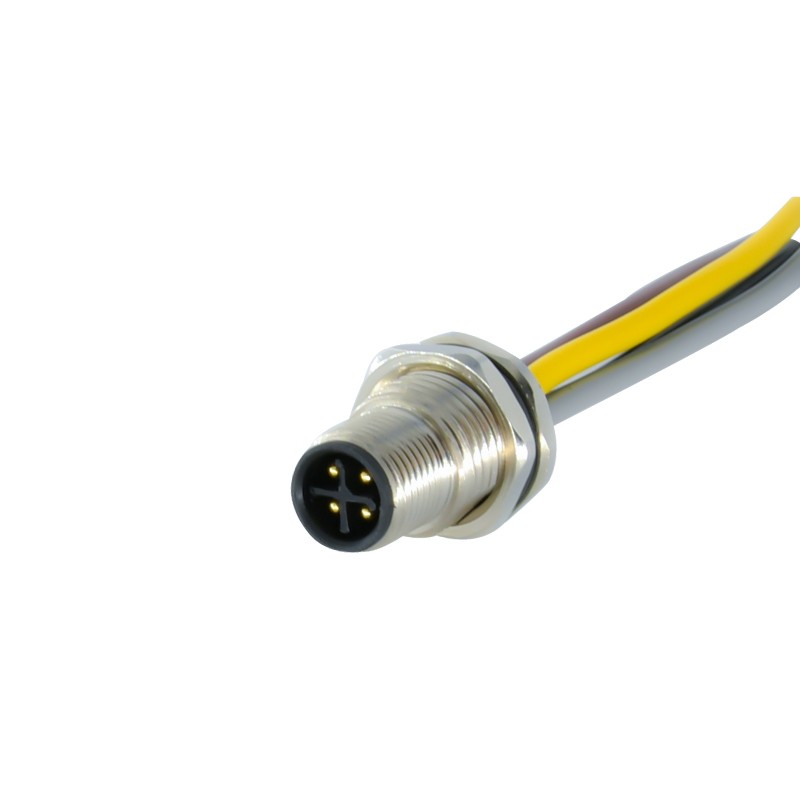

M12 Male Front Panel Mount with Pigtail, M16 threaded, S-Code

Product Description:

Connector series: M12 Panel Mount

Gender: Male

Coding: S

Mounting type: Front fastened

Part No.: RG123027

Download:

RG123027.pdf

  • Specification

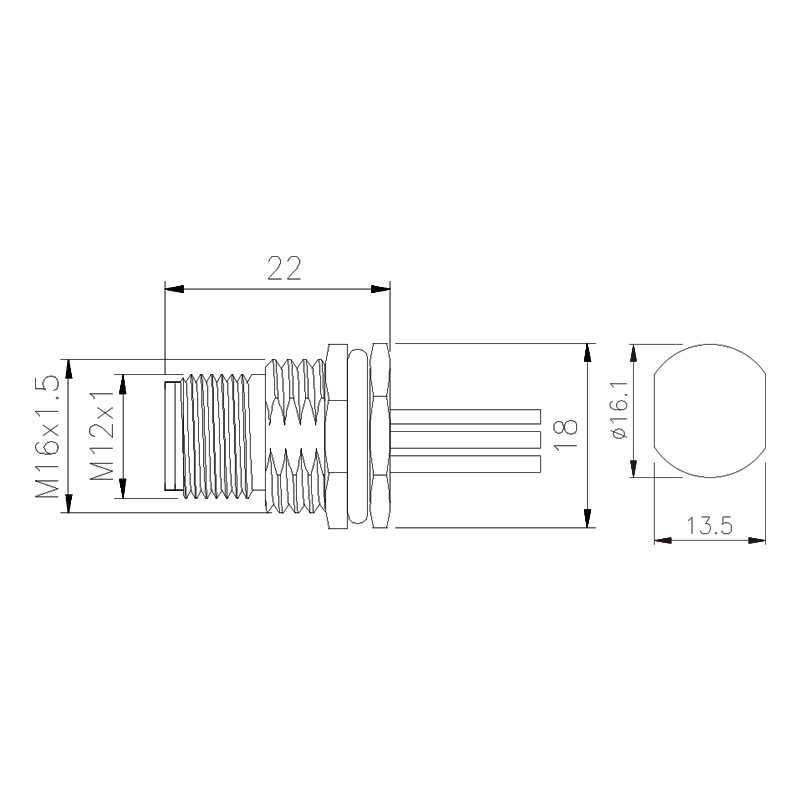

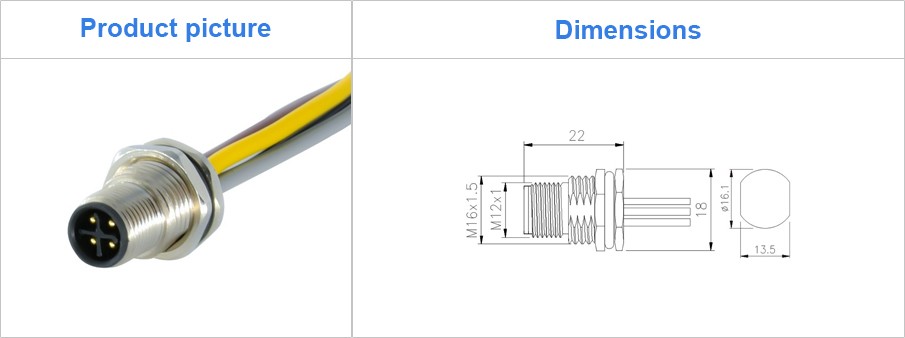

  • Drawing
  • Order method



Brief Introduction:

M12 circular connector is the most commonly used connector in the factory automation. With full series of field wireable connector, overmolded cables, panel connector, T/Y splitter, wire harness and accessories, it is ideal designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.


• M12*1 Thread Locking Mechanism, Anti-vibration Locking Design
• Cable plugs, field installable plugs, Panel receptacles, T-connectors, Y-Splitters are available
• Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors
• A, B, C, D, K, L, X, S, T Coding Available
•  Panel receptacles support solder and PCB two types for option
• Mounting thread supporting M12*1 and M16*1.5 threaded



General Information:

Number of contacts
2+PE
3+PE
Rated voltage
630V
630V
Rated current
12A
12A
Wire length
Customized
Contact Termination
Solder
Mount thread
PG9 threaded
Shielding
Unavailable
Operating temperature
-25℃ ~ +85℃
Degree of protection
IP67/IP68
Mechanical operation
>500 mating cycles
Contact resistance
≤10 MΩ
Materials
Pin contact
Cuzn
Contact plating
Au (gold plating)
Cable jacket
PVC/PUR
Connector insert
TPU
