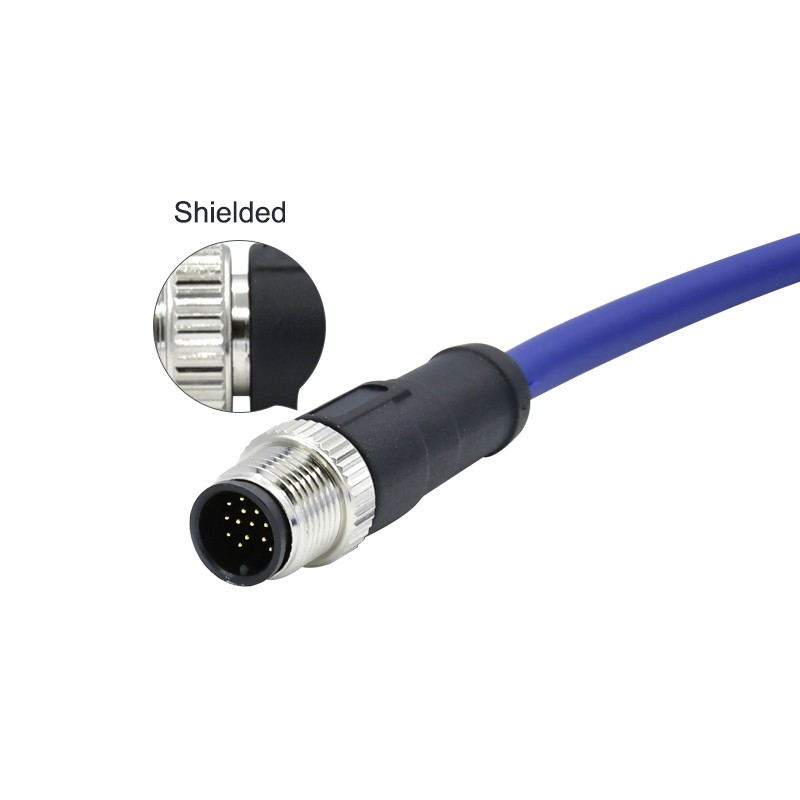

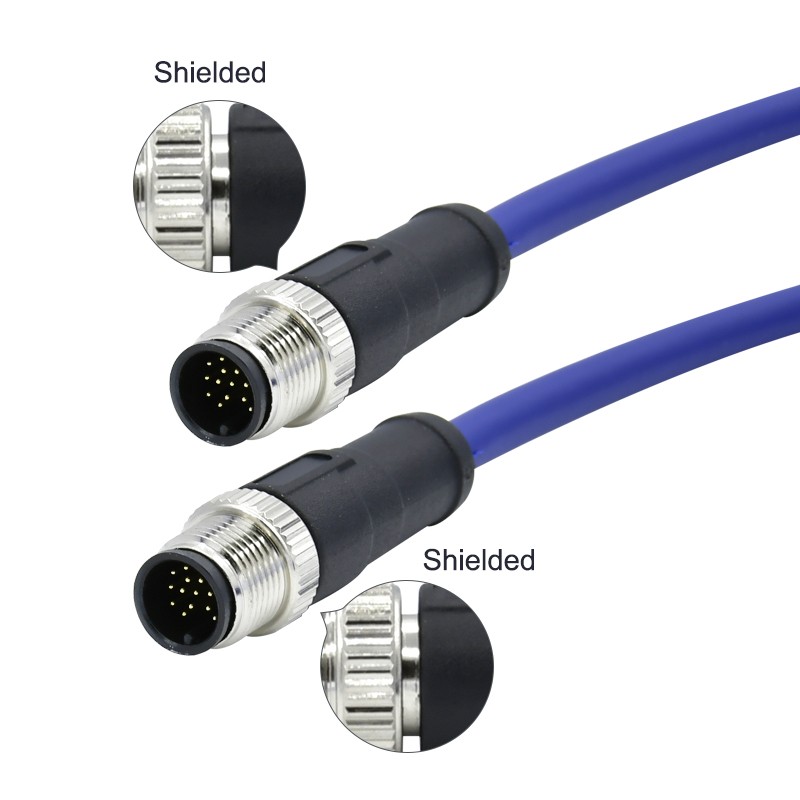

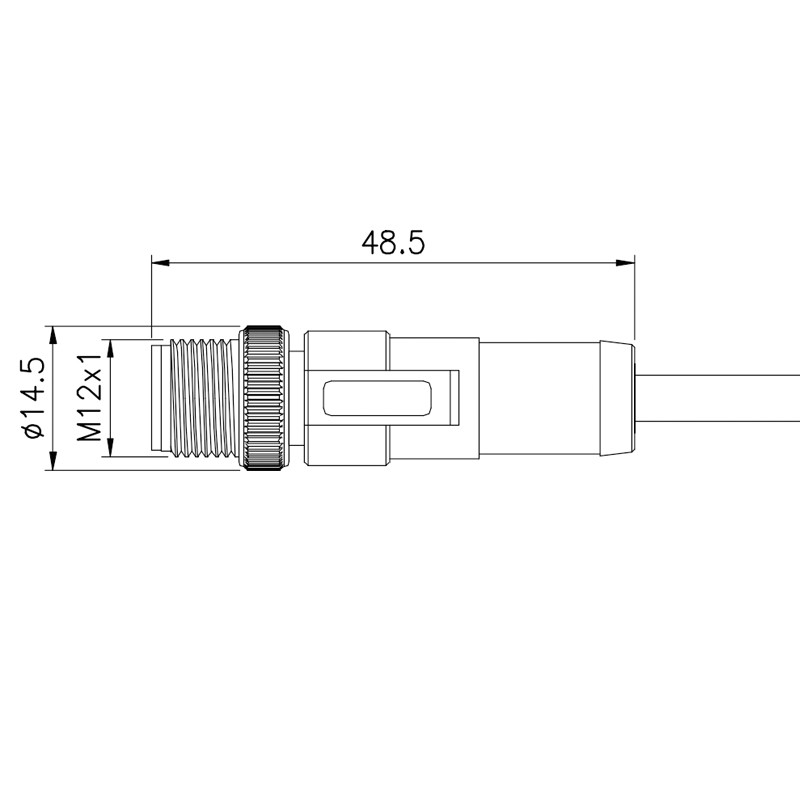

Product Description:
Connector series: M12 cable
Gender: Male
Coding: A,B,D
Orientation type: Straight

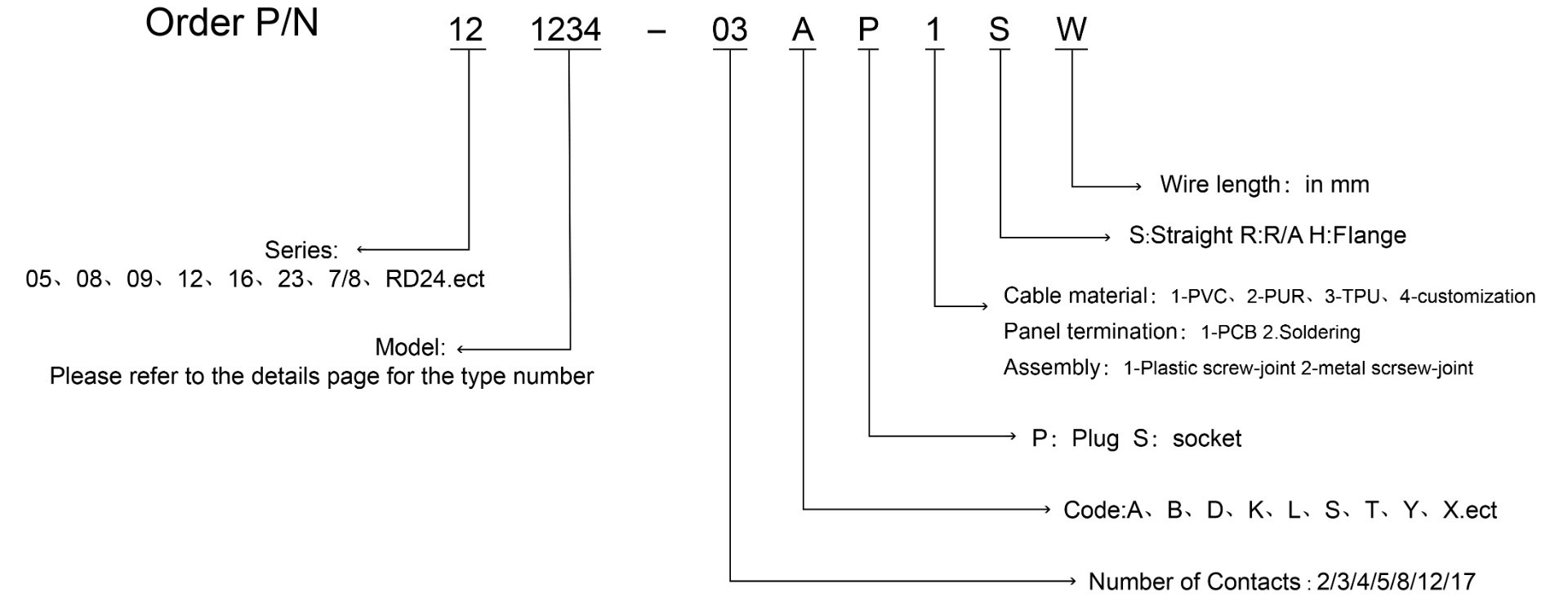

Part No.: RG121005
Download:
Electrical Characteristics
|
Number of contacts |
3 |
4 |
5 |
8 |
12 |
17 |
5 |
4 |
|
Code |
A |
A |
A |
A |
A |
A |
B |
D |
|
Rated voltage |
250V |
60V |
30V |
30V |
250V |
60V |
250V |
|
|
Rated current |
4A |
4A |
2A |
1A |
4A |
4A |
4A |
|
|
Wire guage in mm2 |
0.14mm2-0.34mm2 |
|||||||
|
Wire guage in AWG |
26AWG-22AWG |
|||||||
General Information:
|
Termination |
Moulded on cable |
|

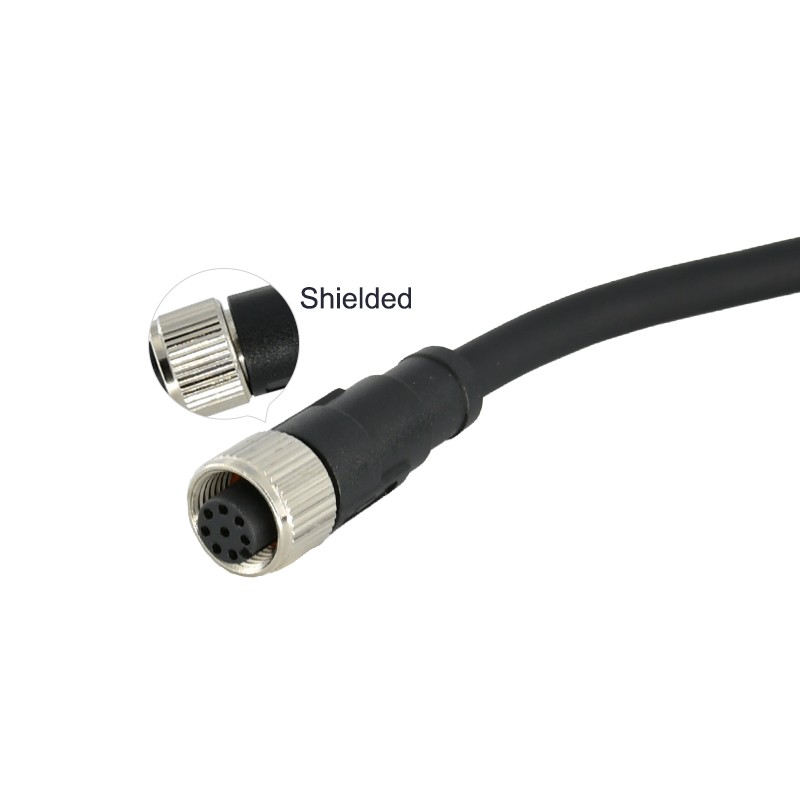

Shielding |
Available |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤10 MΩ |
|
Pin contact |
Cuzn |
|
Contact plating |
Au (gold plating) |
|
Cable jacket |
PVC/PUR |
|
Connector insert |
TPU |
