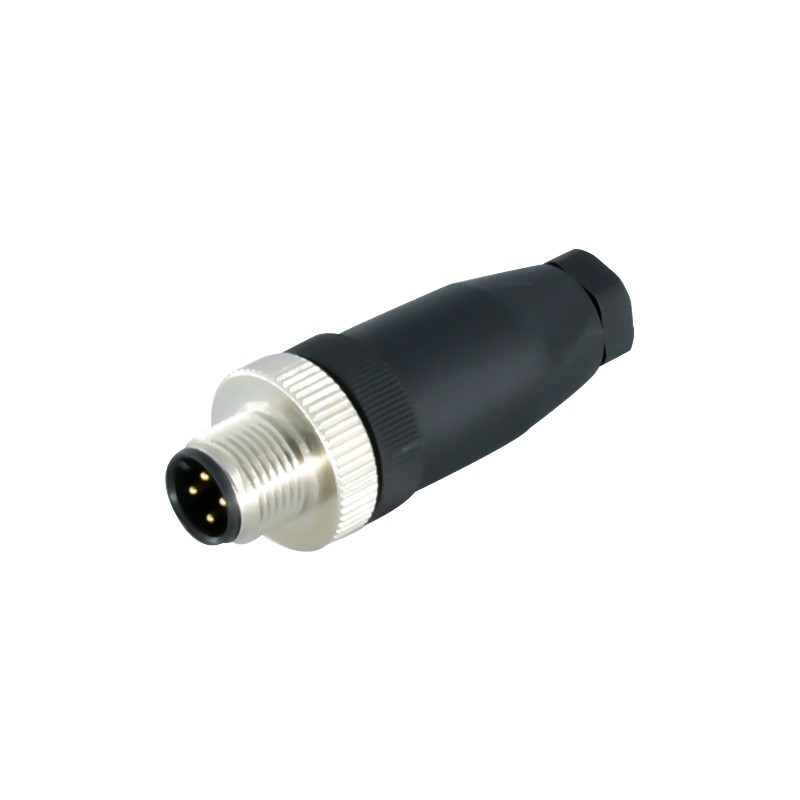

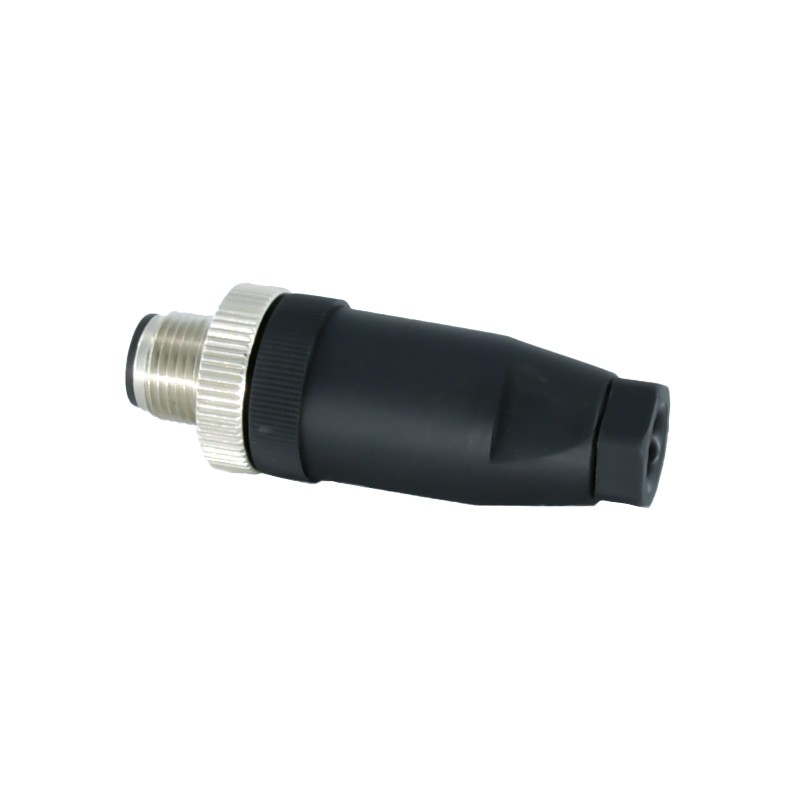

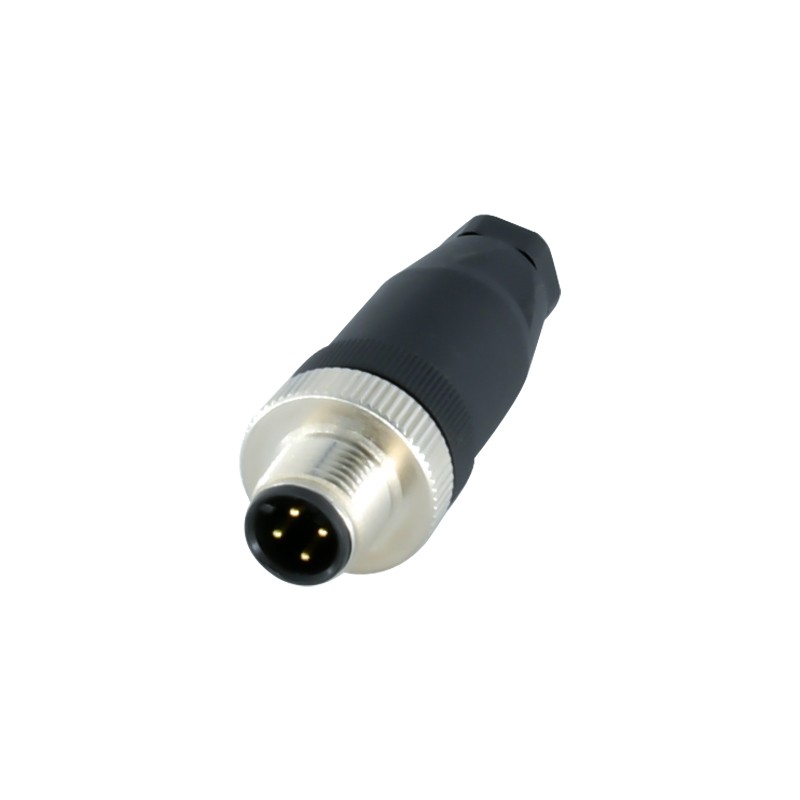

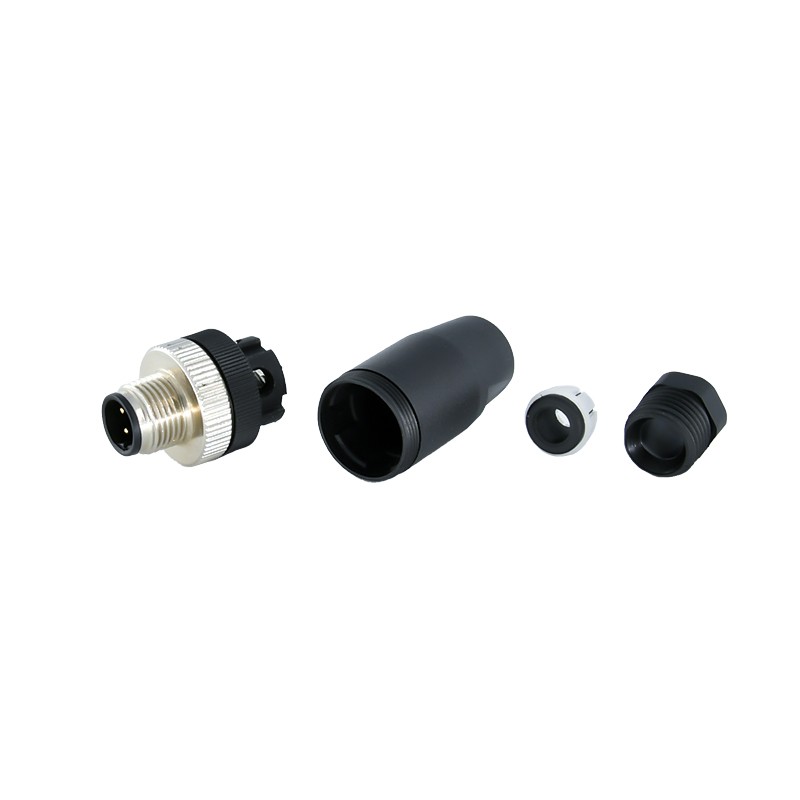

Product Description:
Connector series: M12 Assembly
Gender: Male
Coding: A,B,D
Orientation type: Straight

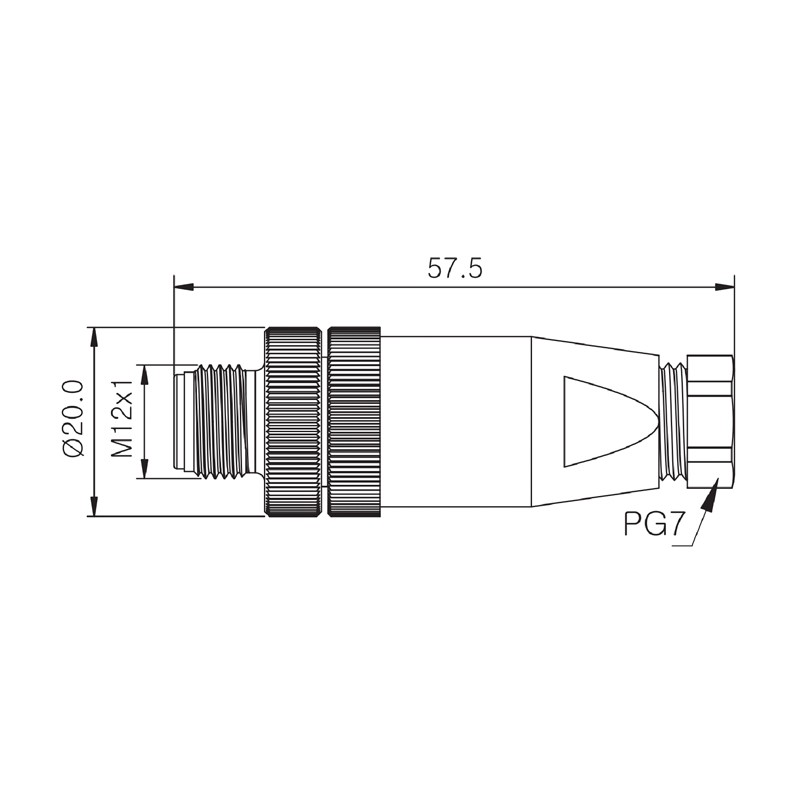

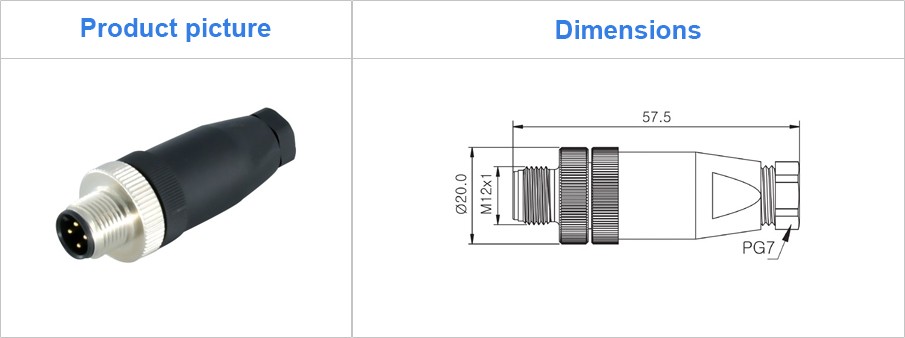

Part No.: M12-x-MS-xx-PG7 (x refers to code,xx refers to pin)
Download:
M12-x-MS-xx-PG7.pdf
Brief Introduction:
M12 circular connector is the most commonly used connector in the factory automation. With full series of field wireable connector, overmolded cables, panel connector, T/Y splitter, wire harness and accessories, it is ideal designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
• M12*1 Thread Locking Mechanism, Anti-vibration Locking Design
• Cable plugs, field installable plugs, Panel receptacles, T-connectors, Y-Splitters are available

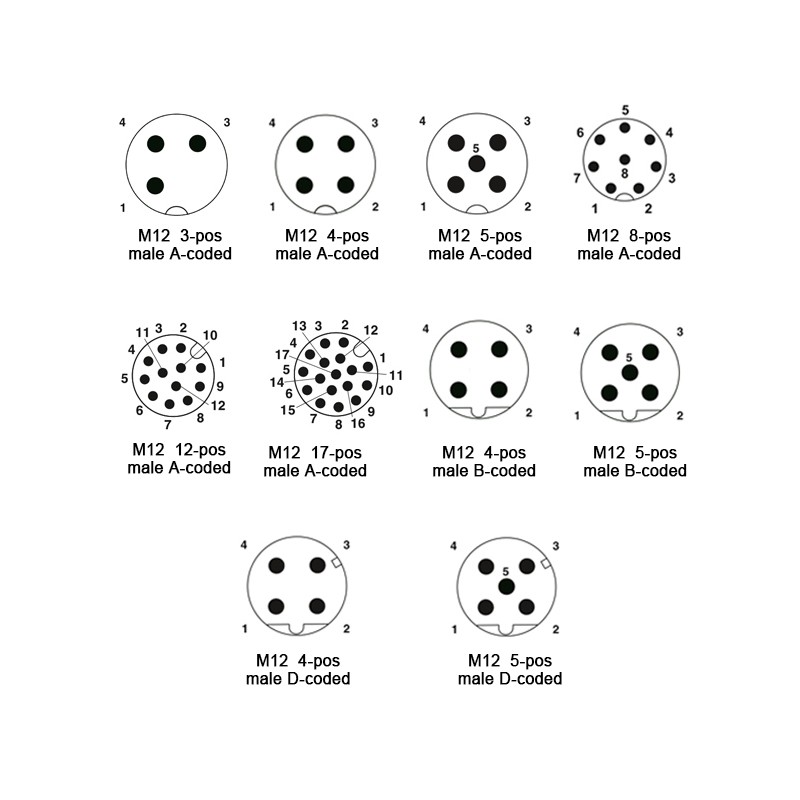

• Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors
• A, B, C, D, K, L, X, S, T Coding Available
• Straight and angled two orientation type
• Shield and Un-shield Version Available
General Information:
|
Number of contacts |
3 |
4 |
5 |
8 |
12 |
4 |
5 |
4 |
|
Code |
A |
A |
A |
A |
A |
B | B |
D |
|
Rated voltage |
250V |
250V |
60V |
30V |
30V |
250V |
60V |
250V |
|
Rated current |
4A |
4A |
4A |
2A |
1A |
4A |
4A |
4A |
|
Outlet |
Suitable OD 4-6mm cable |
|||||||
|

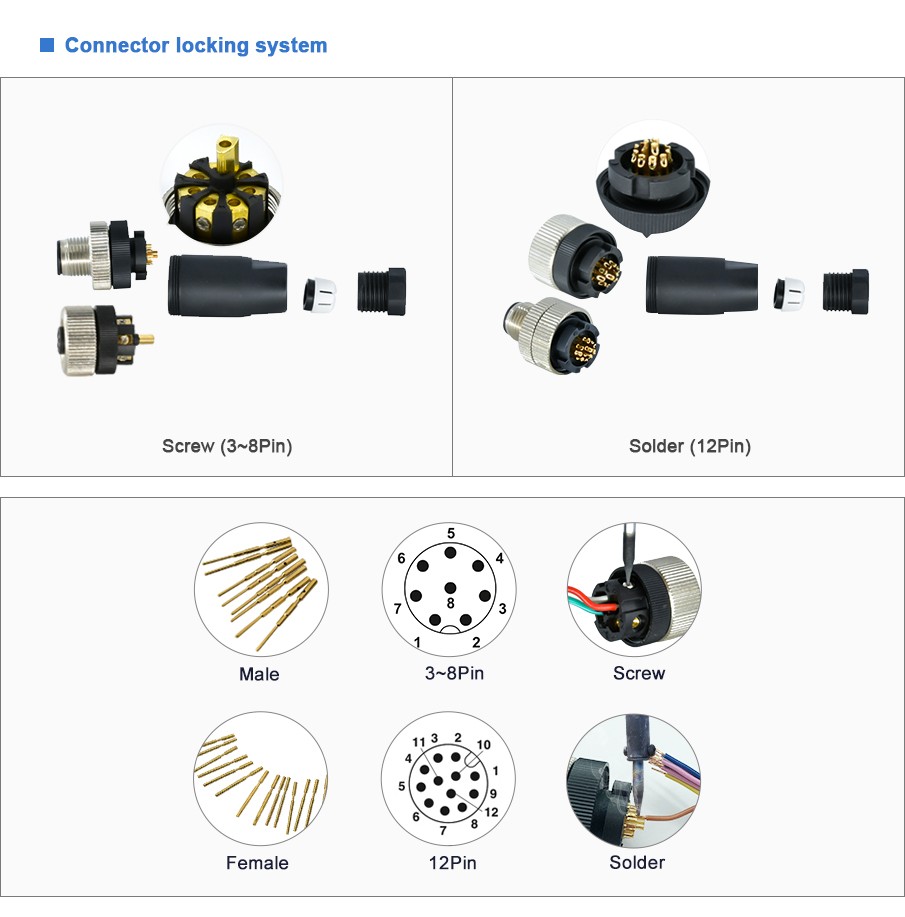

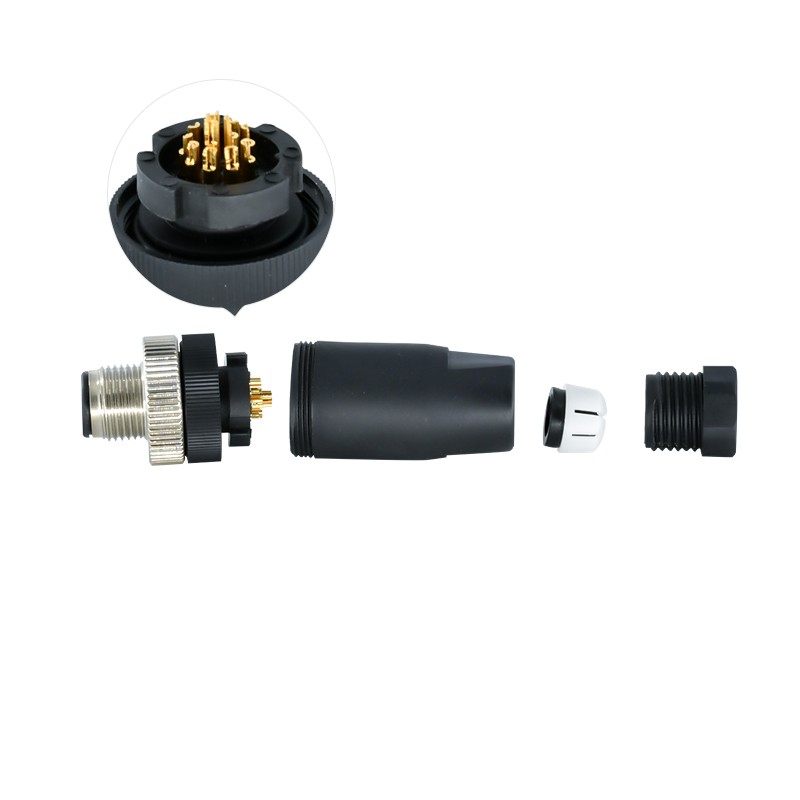

Contact Termination |
Screw clamp（12 pin is solder type） |
|||||||
|
Shielding |
Unavailable |
|||||||
|
Operating temperature |
-25℃ ~ +85℃ |
|||||||
|
Degree of protection |
IP67/IP68 |
|||||||
|
Mechanical operation |
>500 mating cycles |
|||||||
|
Contact resistance |
≤10 MΩ |
|||||||
|
* Materials |
||||||||
|
Pin contact |
Cuzn |
|||||||
|
Contact plating |
Au (gold plating) |
|||||||
|
Connector insert |
PA |
|||||||
