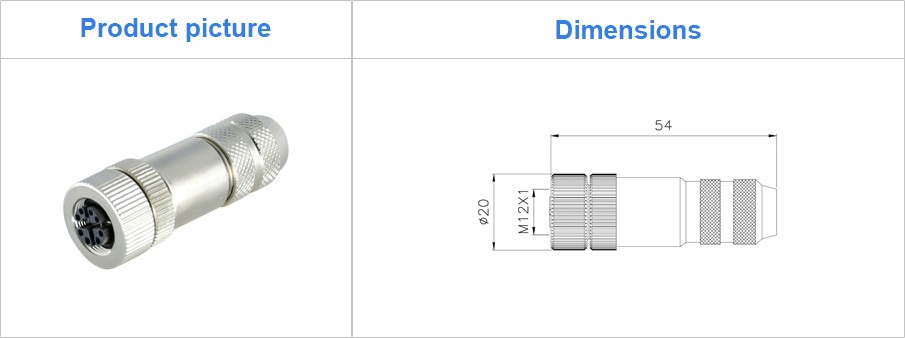

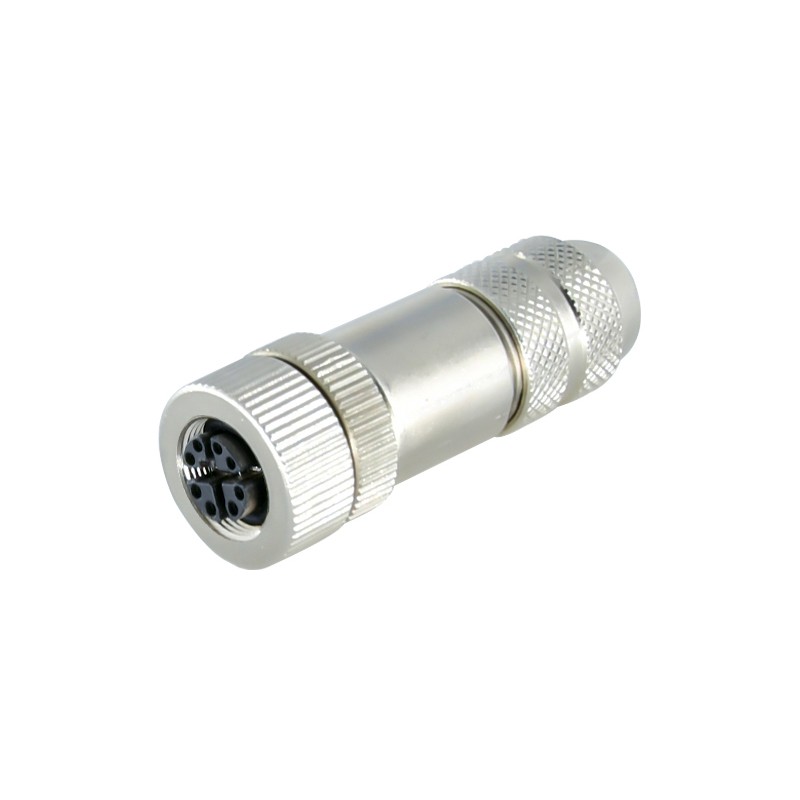

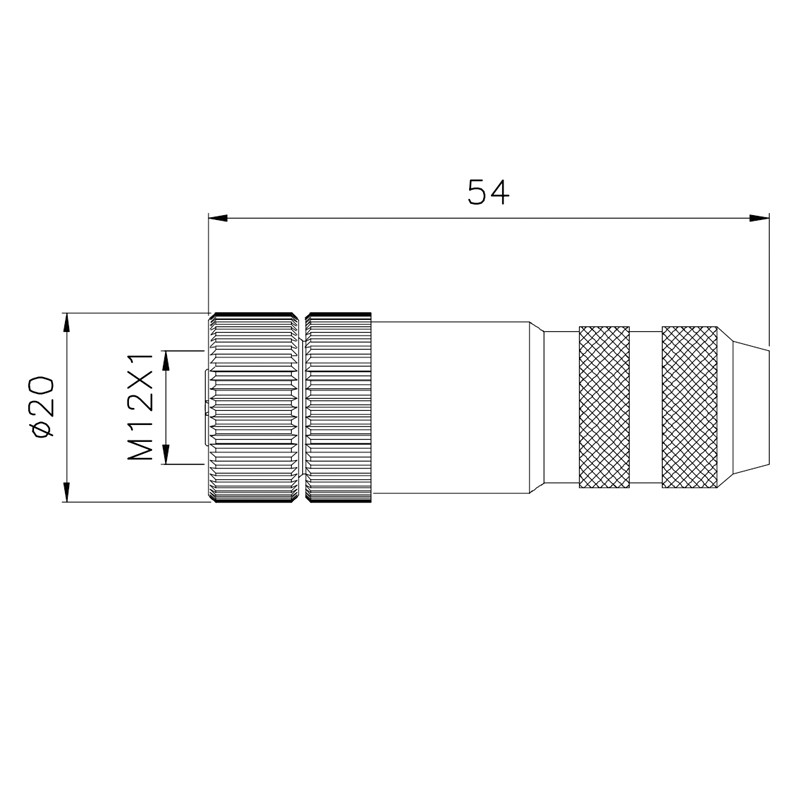

Product Description:
Connector series: M12 Assembly
Gender: Female
Coding: X
Orientation type: Straight
Part No.: M12-X-FS-Pin No.-SH
Download:
M12-X-FS-Pin No.-SH.pdf
Brief Introduction:
M12 circular connector is the most commonly used connector in the factory automation. With full series of field wireable connector, overmolded cables, panel connector, T/Y splitter, wire harness and accessories, it is ideal designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
• M12*1 Thread Locking Mechanism, Anti-vibration Locking Design
• X-coded Support Higher Bandwidth Needs of Up to 10 Gb/s
• Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors
• A, B, C, D, K, L, X, S, T Coding Available
• Straight and angled two orientation type
• Shield and Un-shield Version Available
General Information:
|
Number of contacts |
8 pin |
|
Rated voltage |
60V |
|
Rated current |
0.5A |
|
Outlet |
Suitable OD 4-8mm cable |
|
Contact Termination |
Solder |
|
Shielding |
Available |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤10 MΩ |
|
Materials |
|
|
Pin contact |
Cuzn |
|
Contact plating |
Au (gold plating) |
|
Cable jacket |
PVC/PUR |
|
Connector insert |
PA |
