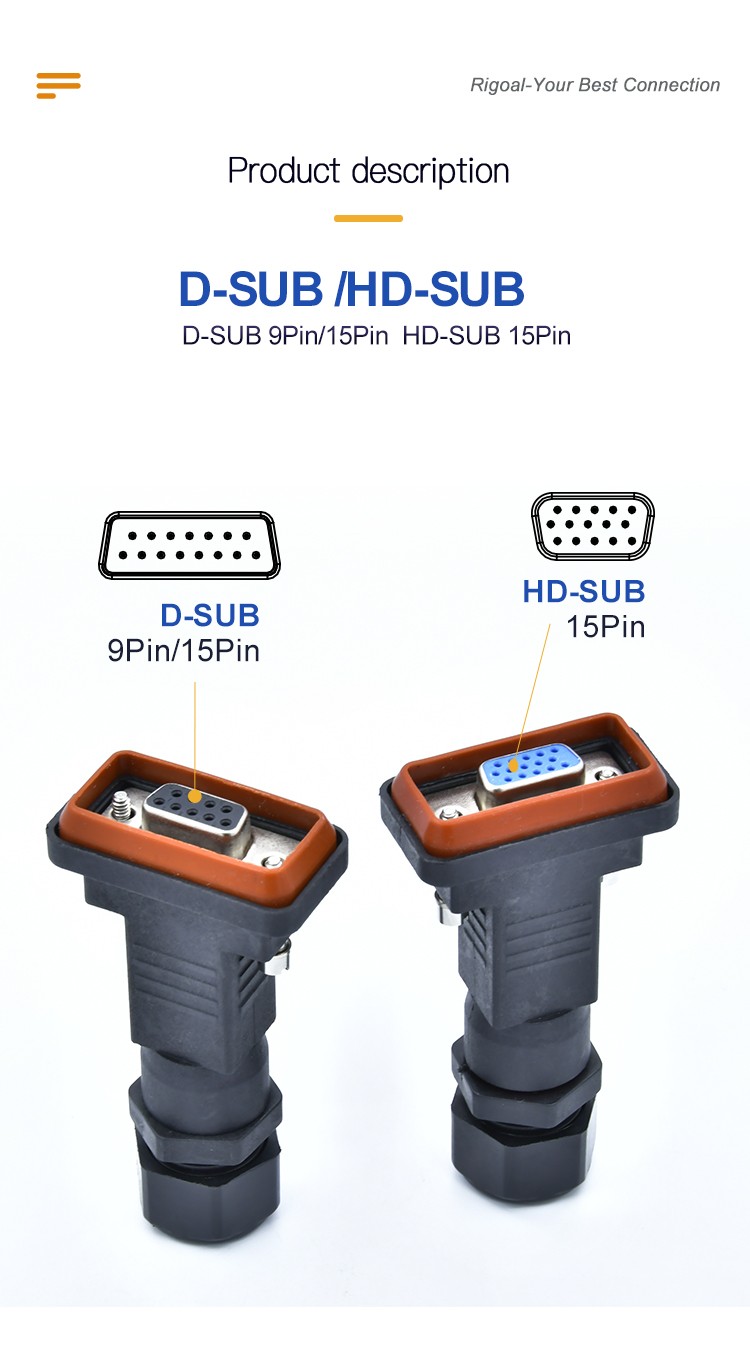

Product Description:

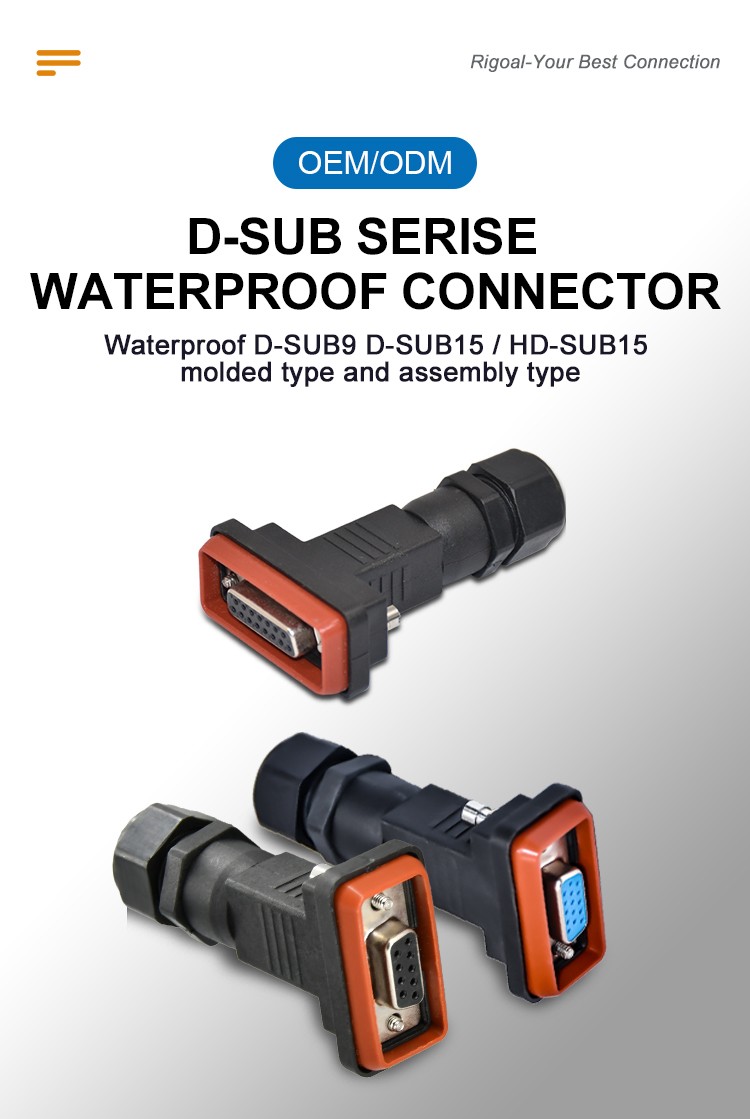

Connector series: D-SUB Assembly

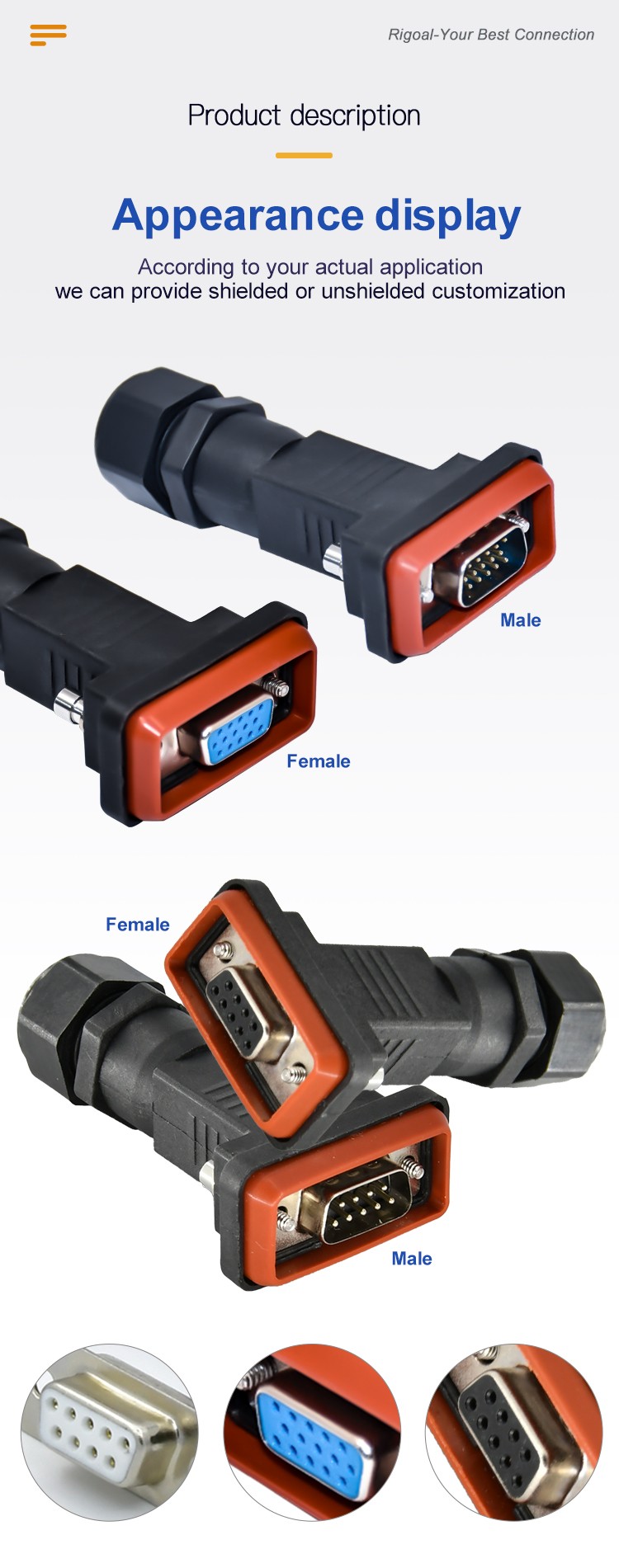

Gender: Male
Locking type: Fix screw
Mounting type: Straight
Part No.: RG-DB01
Download:
RG-DB01.pdf
General Information:
|
Number of contacts |
9pin | |
|
Rated voltage |
300V |
|
|
Rated current |
5A |
|
|
Connector locking system |
Solder | |
|
Operating temperature |
-30℃ ~ +105℃ |
|
|
Degree of protection |
IP67/IP68 |
|
|
Mechanical operation |
>500 mating cycles |
|
|
Contact resistance |
≤10 MΩ |
|
|
Material of connector |
Cuzn PA66 |
|
|
Contact plating |
Au（gold plating) |
|
|
Cable OD |
5.0mm-10.0mm |
|
