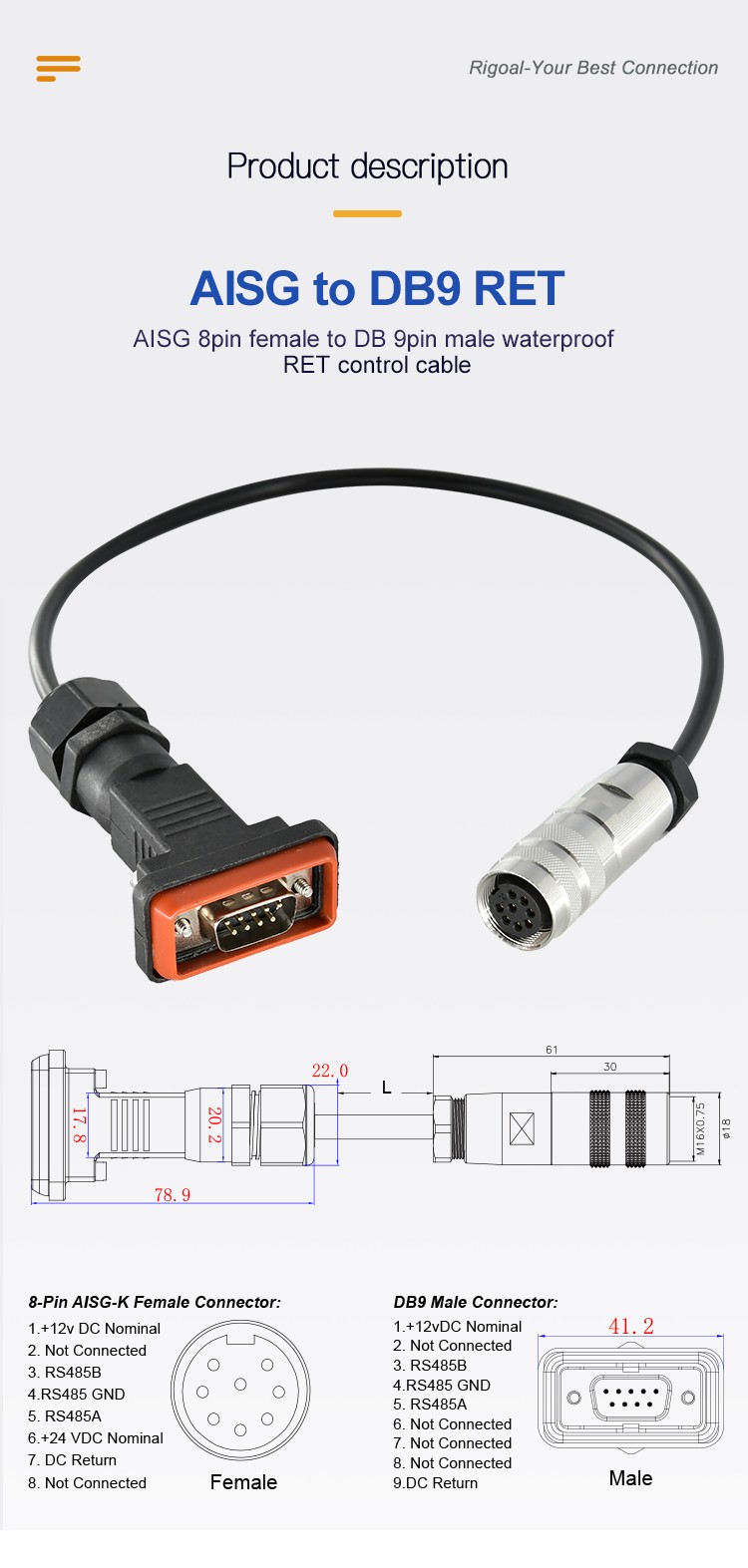

Product Description:

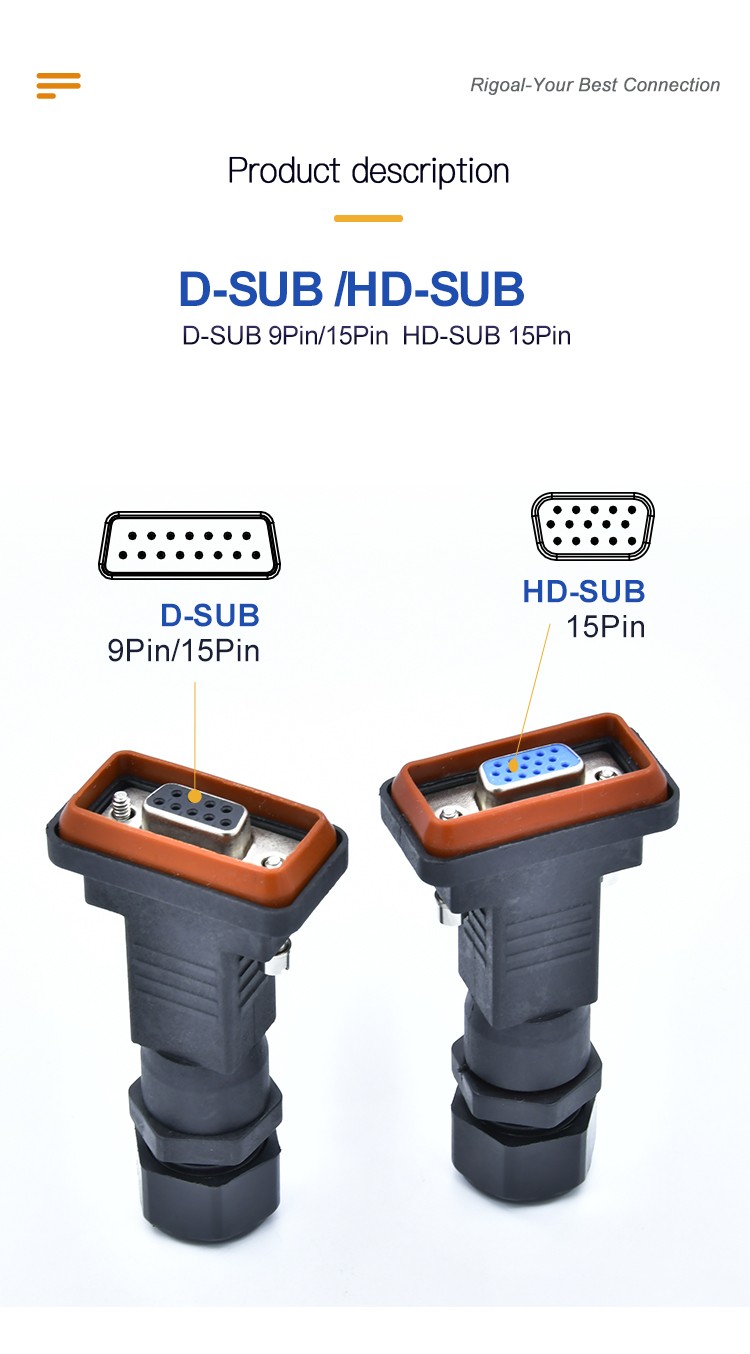

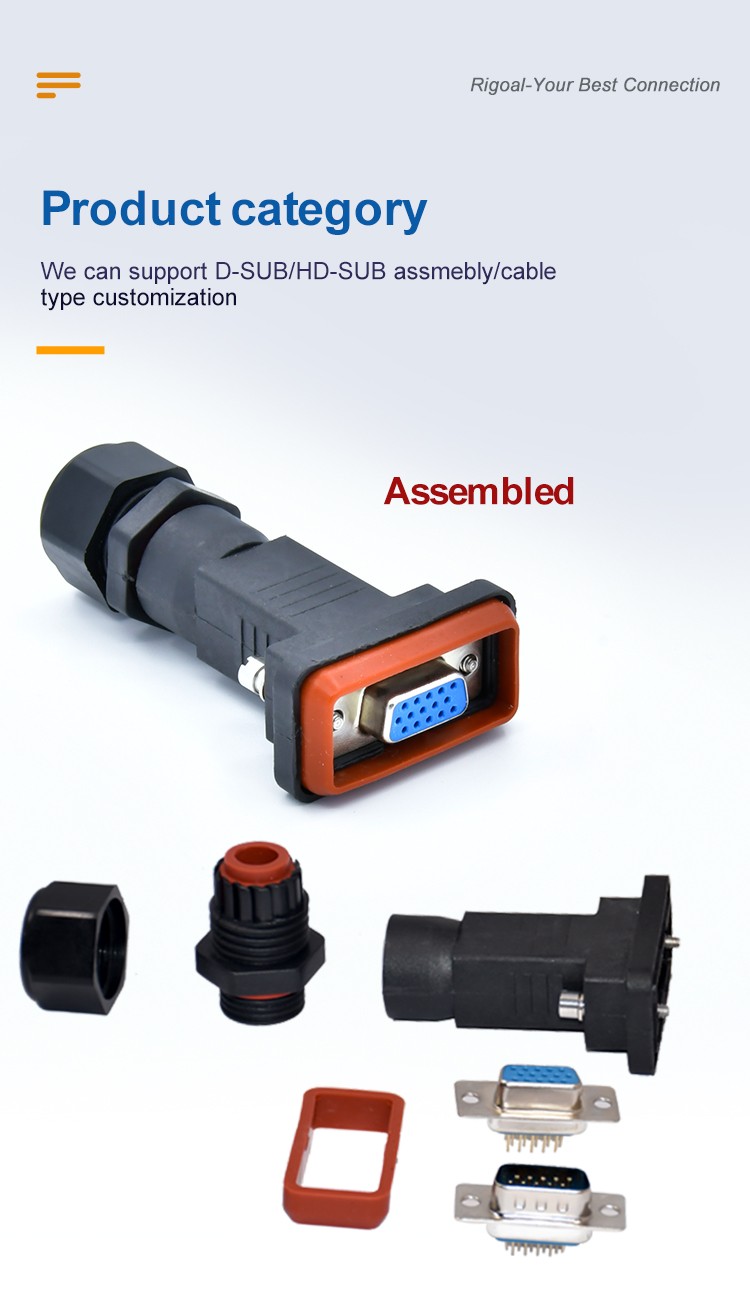

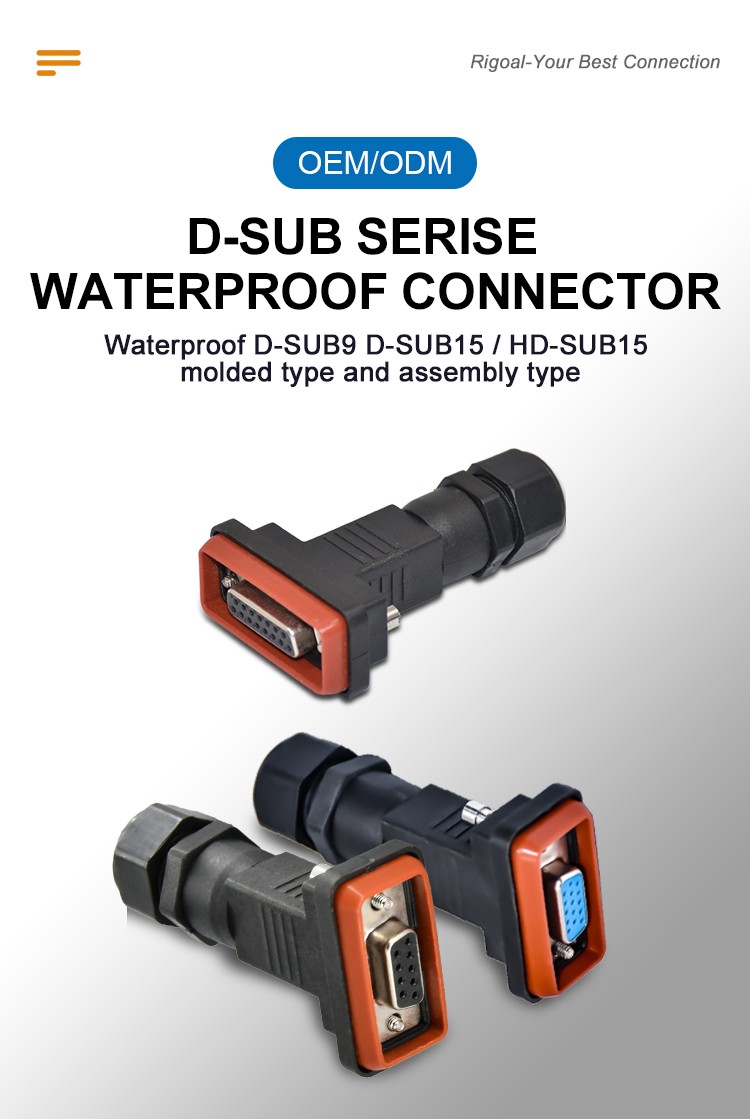

Connector series: D-SUB Assembly

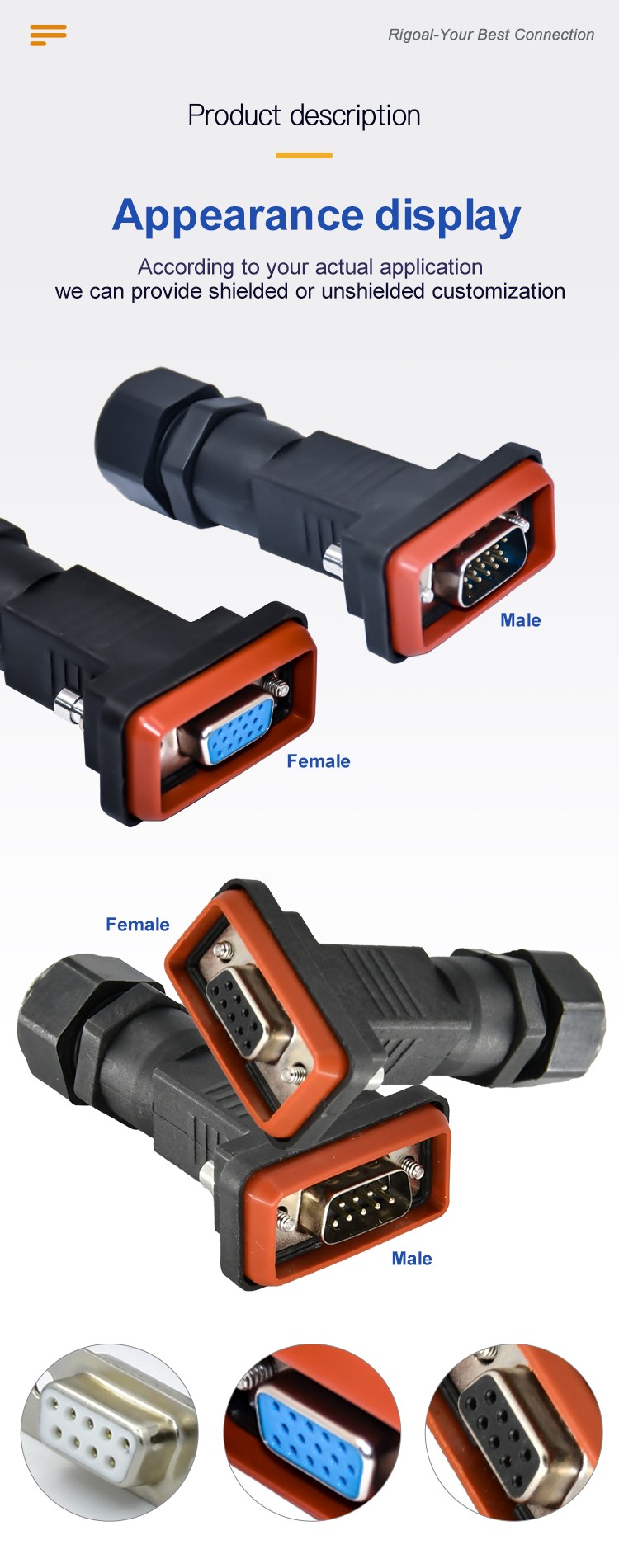

Gender: Male to female
Locking type: Fix screw
Mounting type: Straight

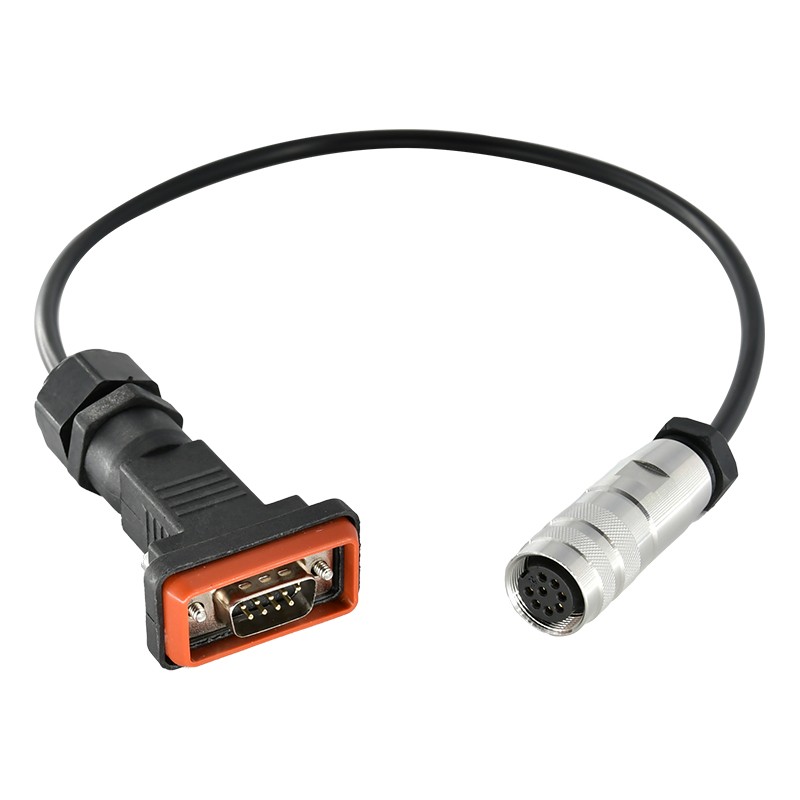

Part No.: RG-DB08
Download:
RG-DB08.pdf
General Information:
|
Number of contacts |
8 (DIN) | 9 |
|
Rated voltage |
300V |
|
|
Rated current |
5A |
|
|
Termination |
Screw | |
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Relative humidity |
5%-9% |
|
|

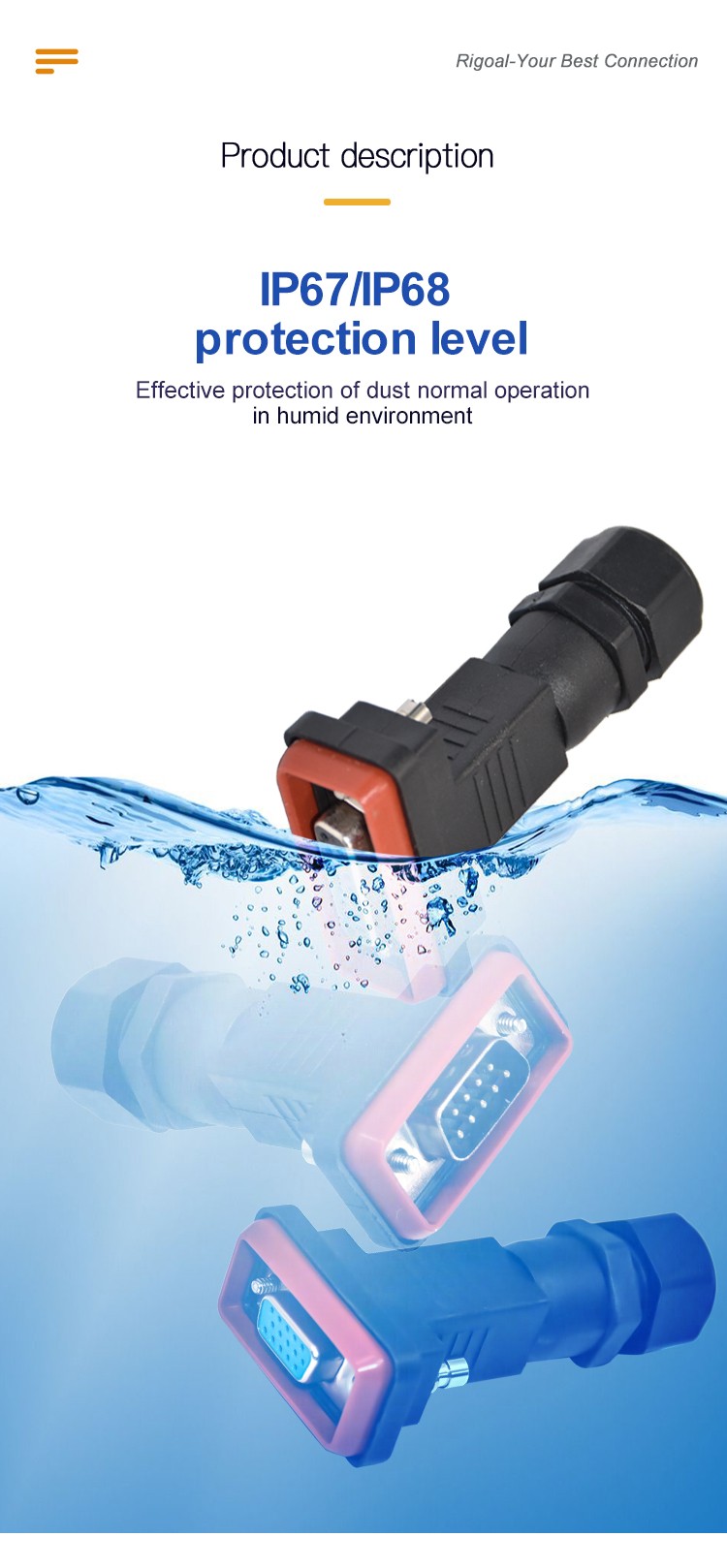

Degree of protection |
IP67 |
|
|
Mechanical operation |
>500 mating cycles |
|
|
Contact resistance |
≤5 MΩ |
|
|
Connector insulator |
FPT |
|
|
Connector seal |
Silicone rubber |
|
|
Cable jacket material |
PU |
|
|
Cable shield material |
Aluminum |
|
|
Cable jacket diameter |
8.0+0.2mm |
|
|
Cable jacket thickness |
0.8mm |
|
