M12 to RJ45 Male Adapter, Angled Assembly, X-code

Product Description:

Connector series: M12 to RJ45 Adapter

Gender: Male

Locking type: Fix screw

Mounting type: Right angle

Part No.: M12-X-8-M-RJ45-RA

  • Specification

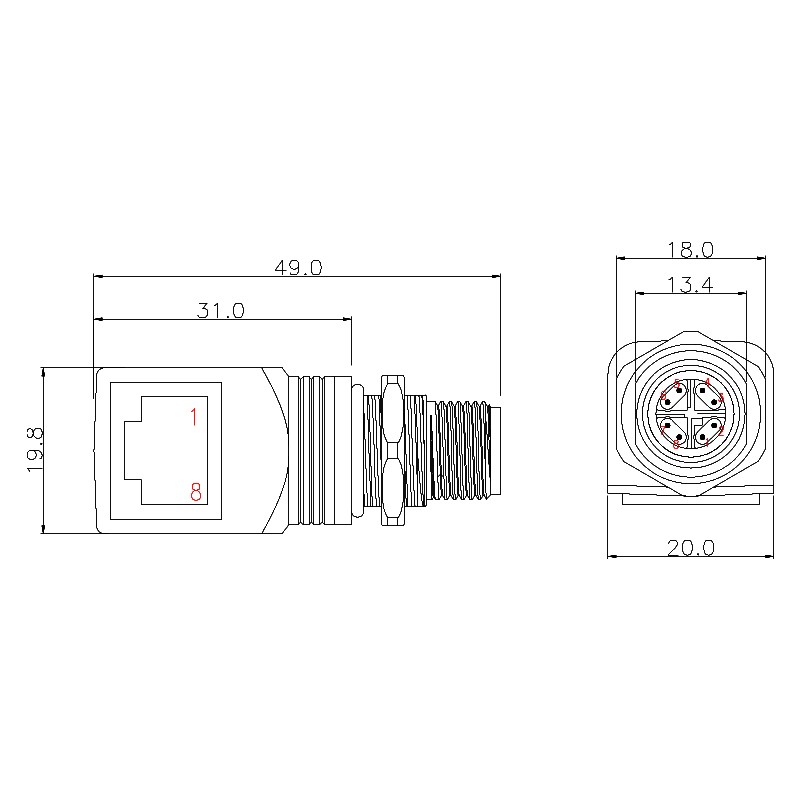

  • Drawing
  • Order method



General Information:

Coding
X
Number of contacts
8
Rated voltage
30V
Rated current
2A
Termination
Screw
Operating temperature
-25℃ ~ +85℃
Degree of protection
IP67/IP68
Mechanical operation
>500 mating cycles
Contact resistance
≤10 MΩ
Material of connector
CuZn,TPU
Contact plating
AU (gold plating)
Standard IEC
